Quick Details
-
Voltage:
-
380V/415V/440V
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
5000
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
Sand mixing machine
-
Brand Name:
-
Antai
-
Voltage:
-
380V/415V/440V
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
5000

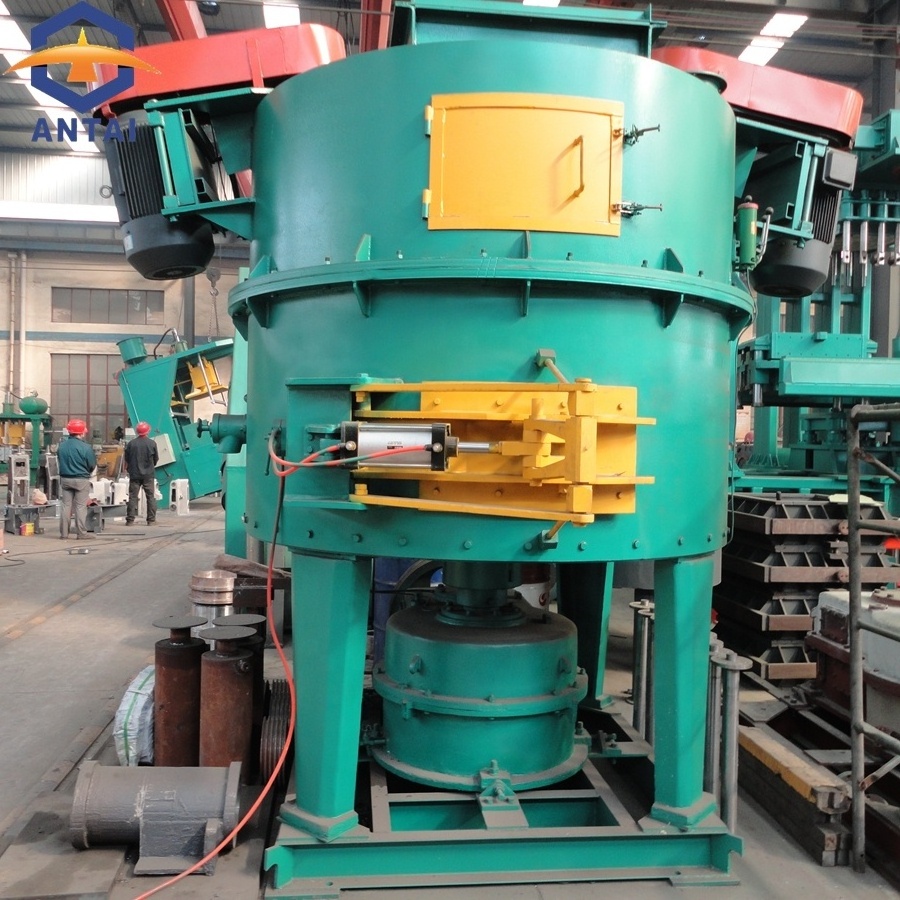

Foundry green sand muller mixer machine
Usage:
The Rotor Sand Mixer is mainly used for mixing molding sand in large, medium and small foundry workshop,besides
molding sand,mixing self-hardening sand, surface sand and drying sand included,also used for mixing powdered and granular materials in glass, ceramics, fireproofing these industries.
Characteristics:
- Optimized matching of low speed scraper and medium speed rotor, huge mixing capacity, good and uniform mixing, better comprehensive performance.
- New materials of doleritic casting stone, tungsten carbide surfacing and new type filler, can greatly improve service life of wearing parts.
- Hydraulic coupling, alloy steel gear and lubrication controller can ensure steady and reliable transmission system and loaded operation.
- The latest rotary unloading door opens flexibly and operates reliably.
- Symmetricly designed maintenance door for early repair and cleaning.
| Model | Disk Diameter(mm) | Feeding Capacity(kg) |
Productivity (t/h) |
Main Motor Power(kw) | Rotor Motor Power(kw) | Speed of Mainshaft(r/min) |
| AT1410A | Φ1000 | 200 | ≥4 | 4 | 2*2.2 | 45 |
| AT1412 | Φ1200 | 300 | ≥8 | 7.5 | 2*4 | 40 |
| AT1416A | Φ1600 | 600 | ≥14 | 15 | 2*7.5 | 31 |
| AT1420J | Φ2000 | 1000 | ≥24 | 30 | 2*15 | 30 |
| AT1420E | Φ2000 | 1200 | ≥28 | 37 | 2*18.5 | 30 |
| AT1420T-B | Φ2000 | 1400 | ≥32 | 45 | 2*22 | 30 |
| AT1422 | Φ2200 | 1600 | ≥36 | 55 | 2*30 | 27.5 |
| AT1425D | Φ2500 | 2500 | ≥60 | 90 | 2*37 | 27.5 |
