Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
LEFOO
-
Model Number:
-
LFP4024
-
Place of Origin:
-
Zhejiang, China
-
Structure:
-
centrifugal pump
-
Outlet Size:
-
DN8
-
Power:
-
3-15.5W
-
Product name:
-
Micro brushless DC circulation water pump
-
Certification:
-
RoHS,ce
-
Maximum Current(A):
-
0.12-0.65A
-
Ambient Temperature:
-
-40℃-40℃
-
Medium Temperature:
-
-40℃-105℃
-
Medium:
-
Clear water
-
Voltage range:
-
18-30VDC
-
Insulation class:
-
F
-
Waterproof grade:
-
IP68
-
Life span:
-
20000H
Quick Details
-
Application:
-
Water purifier, Water purification, water dispenser, water filtration, filtration system
-
Pressure:
-
0.5MPa
-
Voltage:
-
24VDC
-
Warranty:
-
1 Year
-
Brand Name:
-
LEFOO
-
Model Number:
-
LFP4024
-
Place of Origin:
-
Zhejiang, China
-
Structure:
-
centrifugal pump
-
Outlet Size:
-
DN8
-
Power:
-
3-15.5W
-
Product name:
-
Micro brushless DC circulation water pump
-
Certification:
-
RoHS,ce
-
Maximum Current(A):
-
0.12-0.65A
-
Ambient Temperature:
-
-40℃-40℃
-
Medium Temperature:
-
-40℃-105℃
-
Medium:
-
Clear water
-
Voltage range:
-
18-30VDC
-
Insulation class:
-
F
-
Waterproof grade:
-
IP68
-
Life span:
-
20000H
Product Description
Specification
|
Product Name
|

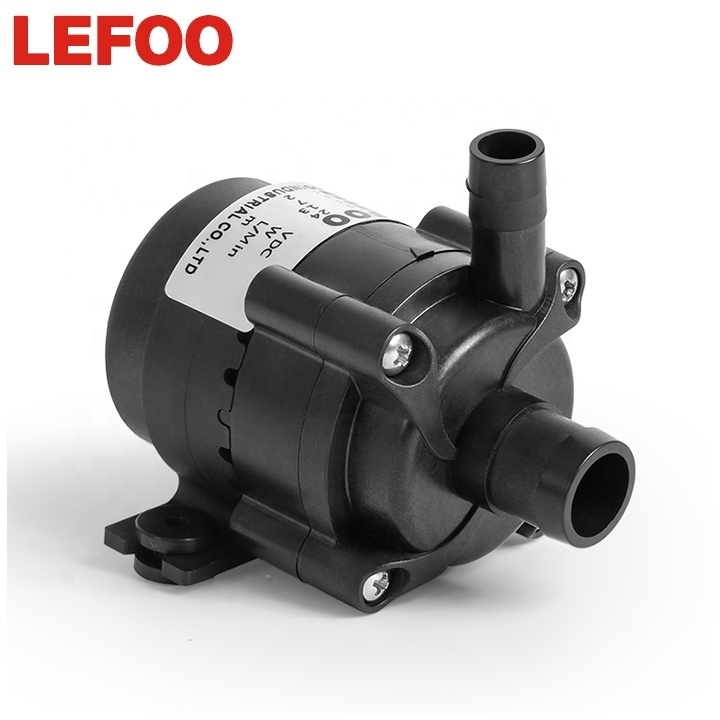

LEFOO 24VDC Brushless Circulating Submersible Water Pump
|
|
|
|
|||
|
Item Number
|
LEP4024
|
|
|
|
|||
|
Rated Voltage
|
DC 24
|
|
|
|
|||
|
Flow rate
|
3-8L/min
|
|
|
|
|||
|
Current
|
0.12-0.65A
|
|
|
|
|||
|
Maximum Head
|
0.5-3.0m
|
|
|
|
|||
|
Power
|
3-15.5w
|
|
|
|
|||
|
Voltage Range
|
18V-30V（Works normally within the range）
|
|
|
|
|||
|
Ambient Temperature
|
-40℃-40℃
|
|
|
|
|||
|
Medium Temperature
|
-40℃-105℃
|
|
|
|
|||
|
Insulation class
|
F
|
|
|
|
|||
|
Protection class
|
IP68
|
|
|
|
|||
|
Life span
|
20000h
|
|
|
|
|||
|
Interface
|
Outlet: DN8; Inlet: DN12
|
|
|
|
|||
|
Medium
|
Clear water
|
|
|
|
|||
|
Environmental Requirements
|
No direct sunlight and ultraviolet rays, no magnetic source on site
|
|
|
|
|||
