Quick Details
Quick Details
-
Place of Origin:
-
Shandong, China
-
Welding pipe diameter range:
-
315-630mm

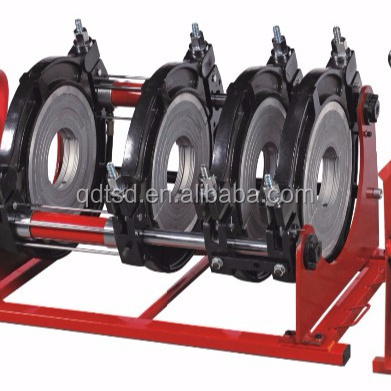

TSD630 Butt Fusion plastic pipe Welder
This machine is designed for butt welding of pipe-to-pipe and pipe-to-fitting of PE PP PVDF and other thermo-plastic materials.It can work in trenches,worksite and workshop,and it is an ideal joining equipment for water and gas supply pipelines.
1. Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.
2. Safety switch enables the trimmer to start only when it is located in the operation position.
3. A mechanical lock excludes the disengagement of the trimmer during the operation
4. Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller
5. Low temperature difference in heating plate surface, within 5 degree
6. Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers
|
Standard machine includes |
√ Main frame with 4 main clamps only |
||
|
√ Complete hydraulic unit |
|||
|
√ Carrying stand with trimmer & heating plate |
|||
|
Optional parts |
Layer inserts |
630*560,560*500,500*450,450*400,400*355,355*315 |
|
|
Single inserts |
Wide inserts pipe-to-pipe |
630*560,630*500,630*450,630*400,450*355,450*315 |
|
|
Beveled inserts pipe-to-fitting |
630*560,630*500,630*450,630*400,630*355,630*315 |
||
ACCESSORIES LIST
TSD630 butt fusion welding machine
|
Item |
Description |
Unit |
Qty |
Remark |
|
1 |
Basic frame |
set |
1 |
|
|
2 |
Inserts |
set |
1 |
Matched with order request |
|
3 |
Hydraulic station |
set |
1 |
Included 2 high pressure oil pipes |
|
4 |
Support |
set |
1 |
For trimmer and heating plate |
|
5 |
Trimmer |
set |
1 |
|
|
6 |
Heating plate |
set |
1 |
Include connecting cable of heating plate |
|
Attachment with machine |
||||
|
1 |
Blade of planing tool |
Pcs |
2 |
|
|
2 |
Ratchet wrench |
Pcs |
1 |
32-36mm |
|
3 |
Screwdriver |
Pcs |
1 |
200mm |
|
4 |
Special bolt for clamp |
Set |
1 |
M10 |
|
5 |
Operation instruction |
Pcs |
1 |
|
TSD630 Packing list
|
Item |
Dimension with packing(mm) |
N.W (KG) |
G.W (KG) |
Remark |
|
1 |
1650X1120X1140 |
371 |
541 |
Basic Frame
|
|
2 |
1050X760X1340 |
194 |
324 |
Heating plate,trimmer, support, attachments and fittings |
|
3 |
740X480X520
|
57 |
108 |
Hydraulic station |
|
Total |
3.34 CBM |
622 |
973 |
|
