Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SF402P
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Outdoor 4 Port PoE Switch
-
PoE Ports:
-
1-4 Port Support PoE
-
Power Supply:
-
DC48V-52V
-
Ethernet Port:
-
6*10/100Base-TX RJ45 Port
-
Uplink Ports:
-
2*10/100Mbps Uplink Ports
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Feature:
-
VLAN/Extend 250-Meter
-
Applications:
-
Support PoE IP Cameras
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.2G
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SF402P
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Outdoor 4 Port PoE Switch
-
PoE Ports:
-
1-4 Port Support PoE
-
Power Supply:
-
DC48V-52V
-
Ethernet Port:
-
6*10/100Base-TX RJ45 Port
-
Uplink Ports:
-
2*10/100Mbps Uplink Ports
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Feature:
-
VLAN/Extend 250-Meter
-
Applications:
-
Support PoE IP Cameras
-
Warranty:
-
1 Year

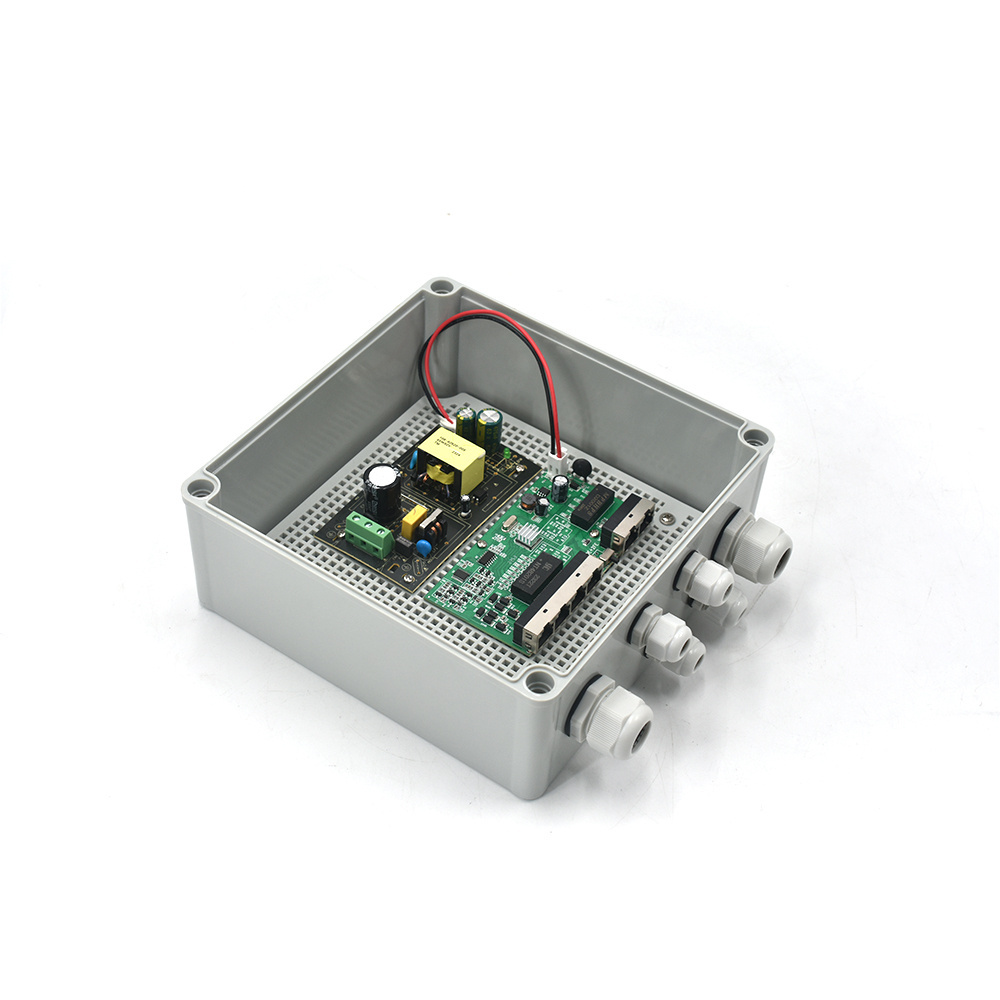

Wanglink IP67 Outdoor Waterproof 10/100Mbps 4 Port PoE Switch Outdoor Gigabit 4 Port Poe Switch Support 6KV Lightning Protection
Product Feature.
2. Support IEEE802.3 af/at PoE protocol, An PoE RJ45 port can supply maximum power output of 25.4W;
3. Support one-key switch to VLAN mode and 250m long distance transmission mode； 4. Support 10/100Mbps auto-negotiate
5. Support Half/Full duplex adaptive, and auto MDI/MDI-X function;
6. All port support wire-speed forwarding;
7. Support desktop and wall-mounted installation;
8. Plug and Play, no configuration requirements;
9. Extra option: 6KV commo mode/4KV differential mode surge protection function;
10. Extra option: AI network self-healing (watchdog) function;
|
Model
|
WOR-SF402P
|
|
|
|
Protocol
|
Standard
|
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX IEEE802.1W Spanning Tree IEEE 802.3x flow control |
|
|
Ethernet port
Characteristic
|
Connector Type
|
1×4 RJ45，1×2 RJ45
|
|
|
|
Transmission rate
|
10/100Mbps auto-negotiate；
|
|
|
|
Transmission distance
|
10Base-T: ≤250m（CAT3,4,5 UTP）
100Base-TX: ≤100m（CAT3,4,5 UTP） |
|
|
Exchange performance
|
Forward method
|
Store-and-forward（full wire-speed）
|
|
|
|
Transmission mode
|
Half/Full duplex adaptive
|
|
|
|
MAC address table
|
2K
|
|
|
|
Case space
|
768Kb
|
|
|
|
Jumbo frames
|
2048b
|
|
|
|
Packet Forwarding Rate
|
0.89Mpps@64byte
|
|
|
|
Bandwidth
|
1.2G（non-blocking）
|
|
|
LED indicator
|
Power indicator
|
Green, power
|
|
|
|
Ethernet indicator
|
Green, per ethernet port
|
|
|
|
DIP switch indicator
|
Green, Extend mode.
|
|
|
DIP switch
|
100m
|
Standard mode - All ports can communicate with each other.
|
|
|
|
250m
|
Extend mode, port 1-4 are isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6.
|
|
|
Power parameters
|
Input voltage
|
AC100~240V, 50Hz
|
|
|
|
Power consumption
|
Standby: ≤2W; whole: ≤65W
|
|
|
|
PoE pin
|
1/2+,3/6-
|
|
|
|
The port max rate
|
≤25.4W
|
|
|
Environment
|
Operating Temperature
|
-20℃～60℃
|
|
|
|
Storage Temperature:
|
-40℃～85℃
|
|
|
|
Operating Humidity
|
5%～95% non-condensing
|
|
|
|
Heat dissipation method
|
Natural heat dissipation
|
|
|
Physical properties
|
Size
|
201×140×44mm
|
|
|
|
Weight
|
Net weight:0.7kg,Gross weight: 0.9kg
|
|
