Quick Details
-
Brand Name:
-
Hongke
-
Dimension(L*W*H):
-
1050*1490*1055
-
Weight:
-
3800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Test&Installation:
-
Professional Engineer Assigned
-
The Machines classification:
-
Mining Equipment
-
Spare parts supply:
-
Lifelong Provide
-
Name:
-
PE-150*750 jaw crusher
-
Price:
-
Negotiatable
-
Factory visit:
-
Welcome
-
Dimension:
-
1050*1490*1055mm
-
Max feeding size:
-
125mm
-
After sale Service:
-
Maintenance
Quick Details
-
Application:
-
Mining
-
Capacity(t/h):
-
5-16 t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongke
-
Dimension(L*W*H):
-
1050*1490*1055
-
Weight:
-
3800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Test&Installation:
-
Professional Engineer Assigned
-
The Machines classification:
-
Mining Equipment
-
Spare parts supply:
-
Lifelong Provide
-
Name:
-
PE-150*750 jaw crusher
-
Price:
-
Negotiatable
-
Factory visit:
-
Welcome
-
Dimension:
-
1050*1490*1055mm
-
Max feeding size:
-
125mm
-
After sale Service:
-
Maintenance
1,Machine introduction
Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
Processed Materials:
Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications:
Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

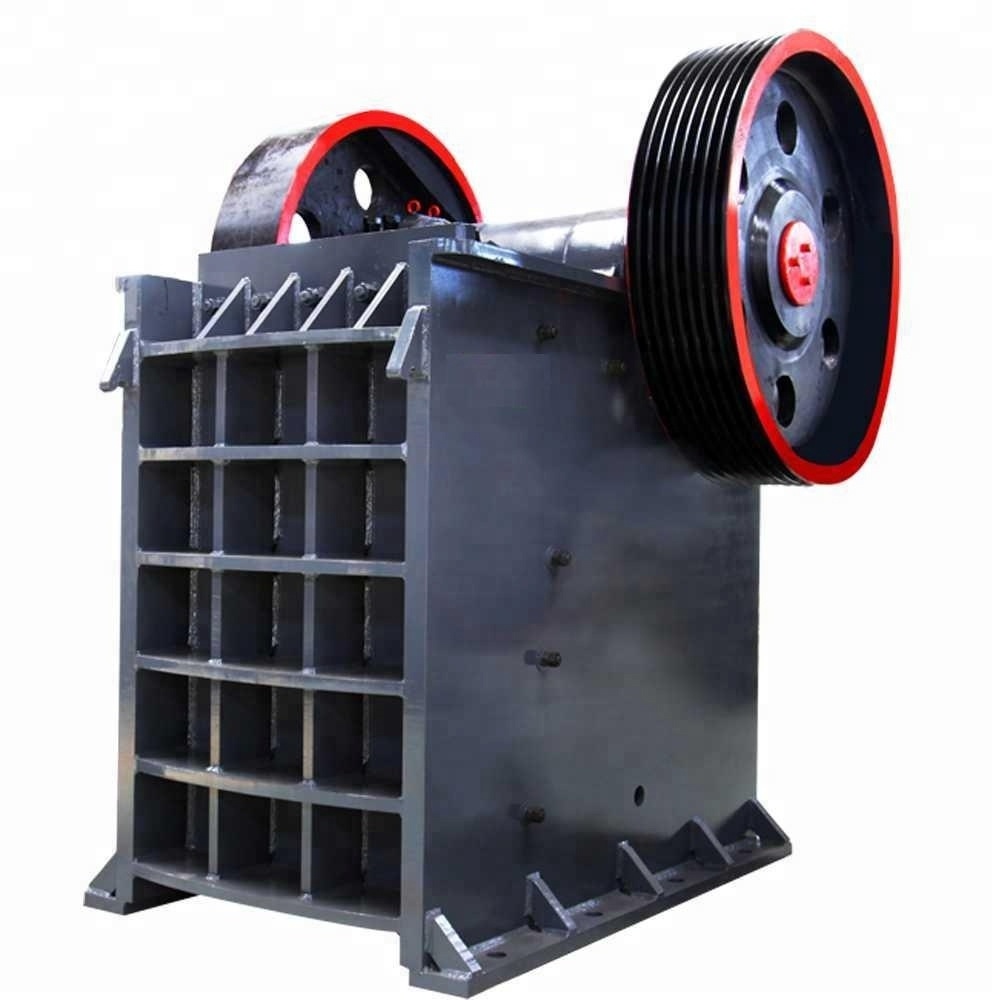

2,Machine photos
3,Machine specification
| Model |
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160×3660×4248 |
| PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210×4013×4716 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
4, The work method of Jaw Crusher is as follow:
The motor drives the mobile jaw up and down through eccentric shaft. The angle between toggle plate and mobile jaw increases when mobile jaw plate moves up. So the mobile jaw plate closes up the fixed jaw plate. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when mobile jaw moves down. The mobile jaw plate move away from the stationary jaw plate with the pull of draw rod and spring, so the crushed stone will be discharged from the outlet. This process will repeat. The moving jaw will crush and discharge the stuff circularly.
