rotary wood/ log peeling lathe

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Raw material:: wood log

Quick Details

Place of Origin:: Henan, China

Brand Name:: yingwang

Weight (KG):: 800 KG

Raw material:: wood log

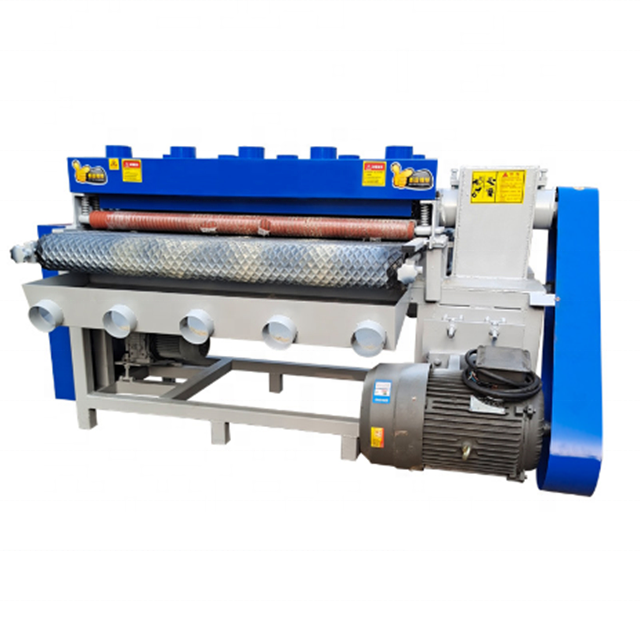

wood veneer peeling/ cutting machine/rotary wood/ log peeling lathe

Main Character:

1.Adopt diamond pattern rollers, which has special chromate treatment in total, better appears and hard-wearing.

2.Compared to normal Model, it has developed more than 20items--Enhance steel board thickness, enlarge transmission bearing, start at two side in the same time, reducing the resistance of roller's bearing, lower its failure rate.

3.Top slipway press knife table design is cutting down the table shake, makes the knife given more stable, more uniform, peeling nice veneer.

4. 3pieces bottom bars are all soaked in Close-type oil box, reducing its wearing. Otherwise, it would save a large amount oil for user.

5. Veneer uniform is designed follow a large gear curve on lathe, result in high precision, error within 0.1mm.

machine parameters

Model	Diameter (mm)	Length (mm)	Left diameter (mm)	Speed (m/min)	Peeling thickness (mm)
YWDP1400	300	1400	60	45	1--8
Weight (kg)	Roller diameter (mm)	Power (kw)	Dimension (mm)
4200	110	18.5	1600 ×3300×1200
Materials	Straight logs
main features	An increase of single, double roll diameter, increase the speed to fight skin.
main features	2, single, double roll chrome plated, improve the wear resistance of the roller. After repeated experiments and theory with drum surface using Pythagorean straight groove, so that the veneer is not easy winding drum, and improve productivity. 3, after the mechanical test, the rational allocation of power for the user to save unnecessary power waste, saving production costs. 4, each transmission part with reasonable precision, to ensure the continuity and reliability of the equipment work. 5, the biggest feature is the use of a hydraulic feed mechanism, feed, retract rapidly, and the feed pressure adjustable and display, in addition to the skin to adapt to different wood, rounded. 6, hydraulic power station scientific and rational configuration, using a manual self-resetting valve, rapid response, simple operation, easy maintenance, less demanding technical operator.
