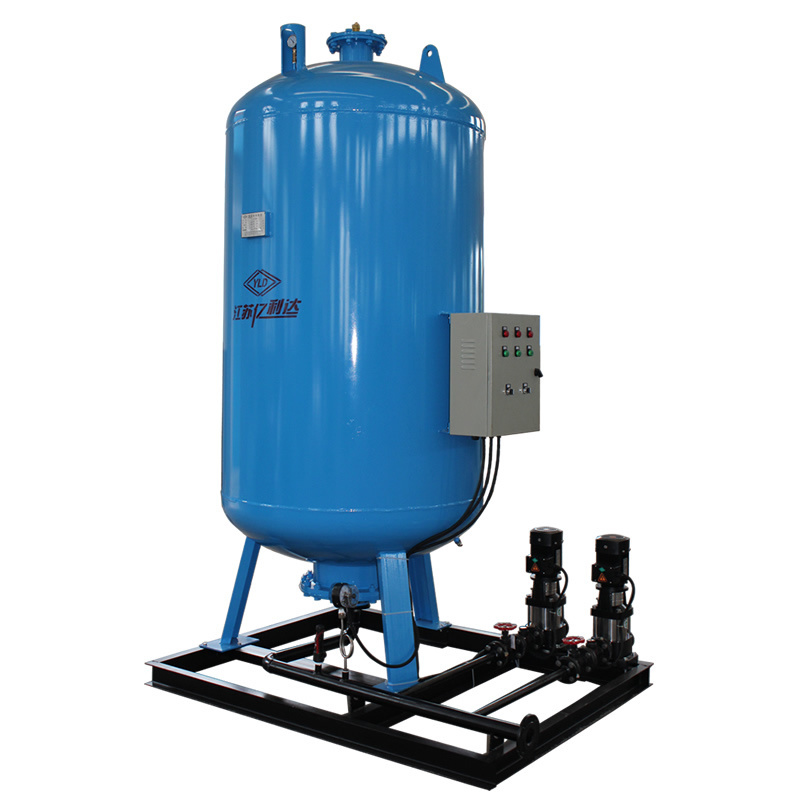

Make-up Water Bladder Expansion Tank With Pump

Make-up Water Bladder Expansion Tank With Pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $2100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: according to delivery

Weight:: 500kg

Size:: 600*2000mm

Power:: 1.1

Productivity:: 0.4m3

Weight (KG):: 250 kg

iterm:: Make-up Water Expansion Tank With Pump

Materia:: stainless steel/Carbon steel

Certificate:: CE,ISO

Low water level production be:: equipped with

Anti pressure instability:: be equipped with

Circulatory system:: Closed type

Power supply:: 380V,50-60Hz

Effective volume:: 0.25m3

tank diameter:: 600mm

inner gasbag:: natural rubber

Quick Details

Marketing Type:: Hot Product 2022

Place of Origin:: Jiangsu, China

Brand Name:: YLD

Material:: according to delivery

Weight:: 500kg

Size:: 600*2000mm

Power:: 1.1

Productivity:: 0.4m3

Weight (KG):: 250 kg

iterm:: Make-up Water Expansion Tank With Pump

Materia:: stainless steel/Carbon steel

Certificate:: CE,ISO

Low water level production be:: equipped with

Anti pressure instability:: be equipped with

Circulatory system:: Closed type

Power supply:: 380V,50-60Hz

Effective volume:: 0.25m3

tank diameter:: 600mm

inner gasbag:: natural rubber

Make-up Water Baldder Expansion Tank With Pump

Product Description

Introduction:

YL series of closed expansion tank (automatic capsule-type pressure regulator set pressure tank) is in the automatic pressure water supply equipment on the basis of evolved, and its working principle is the use of sealed pressure tank to store compressed gas, regulating hot water system, due to temperature changes and shrinkage or expansion of water capacity, sealed pressure tank installed cystic membrane, into the air chamber and the water tank room, when the water temperature rises to increase water capacity, this tank when the gas is compressed, the expansion of water into the water chamber, the water temperature drops to reduce the water capacity, gas expansion, the water chamber of the water pipe network into the system, such as pipe leaks, pipe network pressure to less than a set value of control network pressure from the pump to add to the set pressure, constant pressure to achieve the purpose of the regulator.

working principle

Wide availability of liquid filtration equipment. It can effectively remove liquid particles of different sizes, so as to achieve liquid filtration, purification, separation, recycling purposes.

Performance characteristics

The small size pressure-stabilization expension tank works as a special device to set the expansion section and gas pressure stablization section seperately,therefore,majority of the expansion volume could be strored ib wxpansion tank,the ultilization volume could reach 90% of the total volume,the whole bulk and height becomes smaller and smaller,which saves 50% to 60% of the whole occupation,it is also be convenient for the installation and working for the equipment.

Application scope:

1. continuous heating water system.

2. industrial and residential continuous heating system.

3. high temperature water circulating system.

4.hot and cold water system.
