Quick Details
-
Dimension:
-
1700x1060x1130mm
-
Place of Origin:
-
China
Quick Details
-
Displacement:
-
200cc
-
Brand Name:
-
MOTORSLL
-
Tire Size:
-
10inch
-
Dimension:
-
1700x1060x1130mm
-
Place of Origin:
-
China

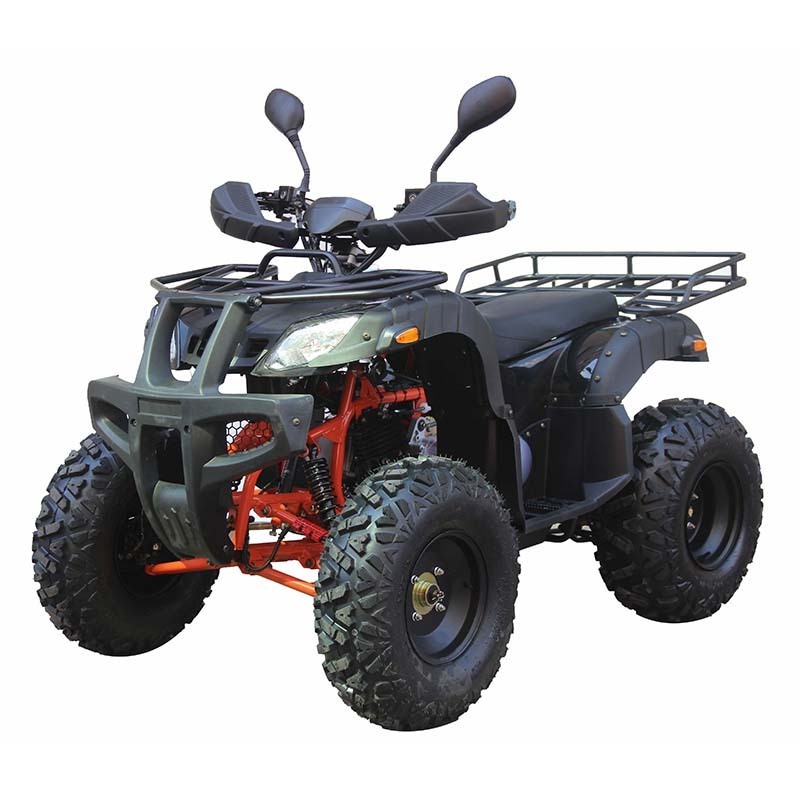

Product Description
| MODEL | FM200 |
| SIZE INRORMATIONS | |
| LXWXH | 1700×1060×1130 mm |
| FRONT TRACK | 860 mm |
| REAR TRACK | 780 mm |
| WHEELBASE | 1150±20mm |
| SEAT HIGHT | 800 ±15mm |
| GROUND CLEARANCE | 155±15mm |
| MINI TURNING RADIUS | 3400±500mm |
| NET WEIGHT | 174kgs |
| MAX LOADING | 100kg |
| FRONT SHOCK SUSPENTION | L= 350 mm |
| REAR SHOCK SUSPENTION | L= 350 mm |
| FUEL TANK | 6.5L |
| Max Speed | ≥60km/h |
| Battery | 12V/10AH |
| ENGINE | |
| DISPLACEMENT | 177.3ml |
| ENGINE TYPE | 4 stroke air cool/oil cooled optional |
| BORExSTROKE | 62.5mm*57.4mm |
| MAX POWER/RPM | 7.3kW/7500r/min |
| MAX TORQUE/RPM | 10N·m/6000r/min |
| COMPRESSION RATIO | 10:01 |
| WHEEL SUSPENTION BRAKE | |
| CABURATOR | PD24J |
| IGNITION | C.D.I |
| START | electric/pull |
| GEAR BOX | CVT |
| DRIVE | CHAIN |
| BRAKE | FRONT AND REAR DISC |
| SWIM ARM | FRONT DOUBLE A-ARM |
| SHOCK SUSPENTION | hydralic oil damp suspention |
| WHEEL | 10INCH |
| TYRE | F23*7-10/R22*10-10/TUBELESS |
| carton Packing size | 146x84x85CM |
| Quanity/40HQ | 66PCS/40'HQ |
