- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
QD-068
-
Product name:
-
delay on make timer
-
Time Delay:
-
0.03 ~10minutes
-
MOQ:
-
1000pcs
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
coolworld
-
Model Number:
-
QD-068
-
Product name:
-
delay on make timer
-
Time Delay:
-
0.03 ~10minutes
-
MOQ:
-
1000pcs
Product Description

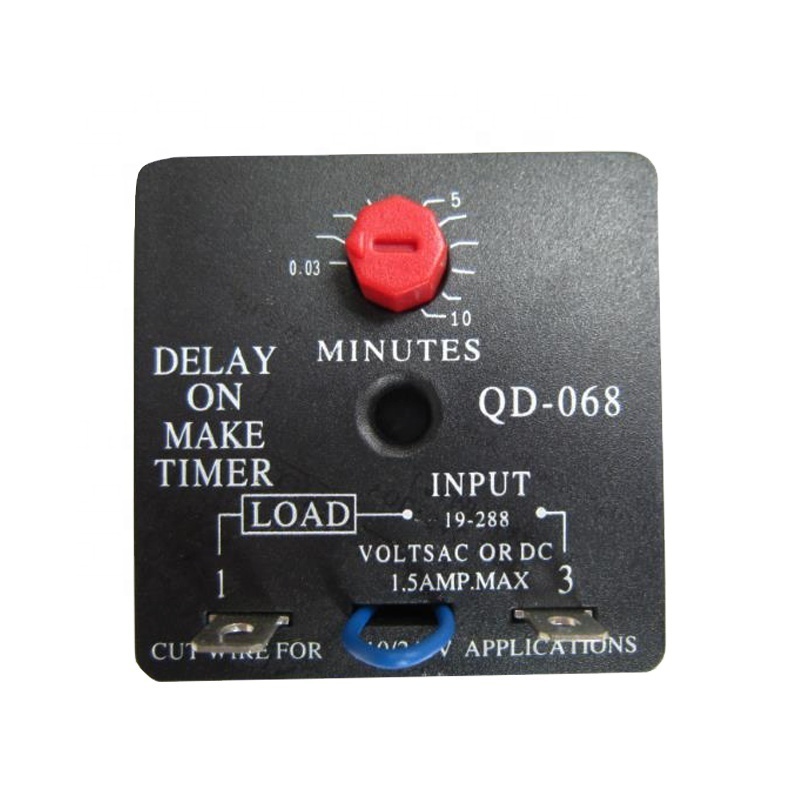

QD-068
Delay on make timer
Installation:
1. Disconnect power
2. Connect terminals in series with thermostat&contactor as indicated in diagram
3. Circuits of 24V require no action. For 110V/240 applications, cut jumper wire as indicated at the bottom of the unit
4. Select the desired delay by turning knob adjustment from 2 sec. up to 600 sec.
5. Re-apply power
1. Disconnect power
2. Connect terminals in series with thermostat&contactor as indicated in diagram
3. Circuits of 24V require no action. For 110V/240 applications, cut jumper wire as indicated at the bottom of the unit
4. Select the desired delay by turning knob adjustment from 2 sec. up to 600 sec.
5. Re-apply power
Specifications
* Input Voltage: 19-250VAC
* Frequency: 50/60HZ
* Time Delay: 2-600 sec. Adjustable
* Output Ratins: Max: 1.5 amps Min:40mA
* Inrush: 15 amps
* Input Voltage: 19-250VAC
* Frequency: 50/60HZ
* Time Delay: 2-600 sec. Adjustable
* Output Ratins: Max: 1.5 amps Min:40mA
* Inrush: 15 amps
|
PRODUCT NAME
|
Delay on make timer
|
|
MODEL NO
|
QD-068
|
|
Frequency
|
50HZ/60HZ
|
|
Input Voltage
|
19-250VAC
|
|
MOQ
|
1000PCS
|
|
PORT OF LOADING
|
NINGBO
|
|
PAYMENT
|
T/T
|
Specification
