Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAP-LAS
-
Dimension(L*W*H):
-
180*130*110cm
-
Weight (KG):
-
350 KG
-
Laser power:
-
80w/100w/130w/150w
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Laser tube:
-
RECI Brand Sealed CO2 Glass Tube
-
Color:
-
Blue-white
-
Compatible software:
-
CorelDraw ,AutoCAD
-
Driving system:
-
Leadshine Stepper Motor
-
Controller:
-
DSP(RUIDA 6445G)
-
Guide rail:
-
Taiwan made HIWIN
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAP-LAS
-
Dimension(L*W*H):
-
180*130*110cm
-
Weight (KG):
-
350 KG
-
Laser power:
-
80w/100w/130w/150w
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Laser tube:
-
RECI Brand Sealed CO2 Glass Tube
-
Color:
-
Blue-white
-
Compatible software:
-
CorelDraw ,AutoCAD
-
Driving system:
-
Leadshine Stepper Motor
-
Controller:
-
DSP(RUIDA 6445G)
-
Guide rail:
-
Taiwan made HIWIN

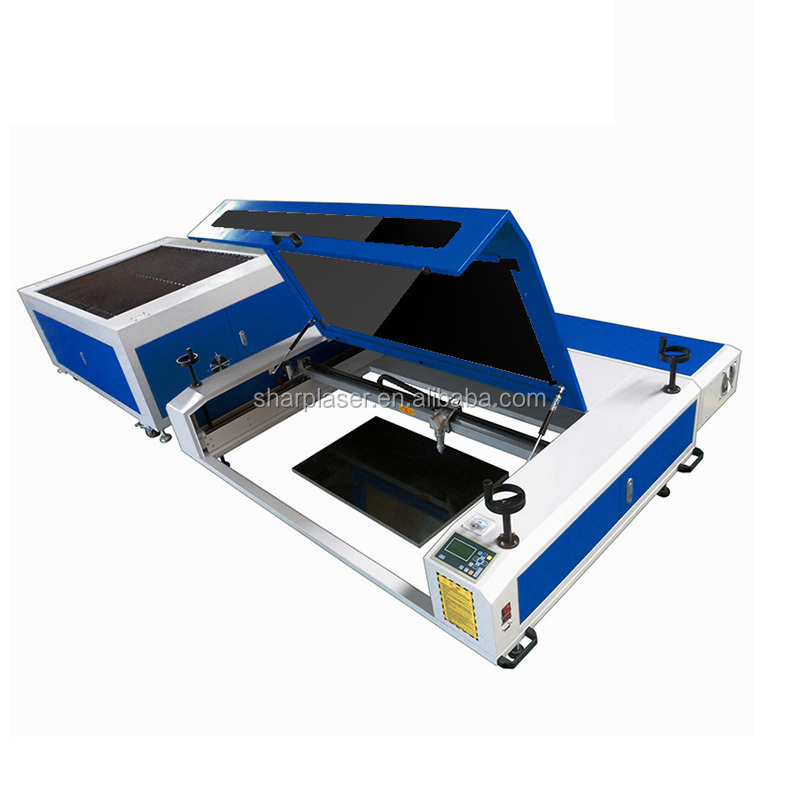

CC1309 headstone tombstone marble granite stone laser engraving machine
The laser engraving machine is CO2 type designed for efficient processing of marble,granite,acrylic,wood and many more. Available in different workstations sizes with several power options, these laser engraving systems provide high-quality results at maximum speed.
Product Description
| what material can the laser handle? | ||
| Material | Engrave | cut |
| Acrylic | √ | √ |
| Glass | √ | × |
| Laminates | √ | √ |
| Leather | √ | √ |
| Paper | √ | √ |
| Plastics | √ | √ |
| Stone | √ | × |
| Textiles | √ | √ |
| Wood | √ | √ |
| Metal | × | × |
| Parameter | |
| Name | CO2 laser engraving cutting machines |
| Model | CC1309s |
| Working area | 1300*900mm |
| Laser power | 80w,100w,130w,150w |
| Laser type | CO2 laser tube,RECI brand,>10000 hrs service life |
| Cooling ways | Water cooling |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-40000mm/min |
| Laser output control | 0-100% controlled by software |
| Min engraving size | English letters,1*1mm |
| Scanning resolution | 4000DPI |
| Locating accuracy | ≤0.01mm |
| Controlling software | DSP controlling system,RDWORKS V8 |
| Format supported | DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc |
| Software environment | Windows xp/7/8/10 |
| Compatible software | Coreldraw,Autocad |
| Color separation output | Yes |
| Slope engraving | Yes |
| Driving system | High precision stepper motor with belt |
| Auxiliary accessories | Exhaust fan,fume tubes,air pump |
| Working table | Blades table or Honey comb |
| Applicable materials | Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather |
| Working environment Temperature | 0-45℃,Humidity5-95%(no condensate water.) |
| Power supply | 110v/220v,50hz/60hz |
| Weight | 360kg |
| Dimension | 180*150*110cm |
