This loading frame decoiler also can use in other type machine, customer can buy it alone.
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Weight:
-
2800 kg
-
Product name:
-
Downspout Rain Gutter Making Machine Water Gutter Forming Machine
-
Application:
-
Building Construction
-
Raw material:
-
Galvanized Coil
-
Main frame:
-
350-500mm H-beam Steel
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 Mov
-
Shaft material:
-
High Grade No.45 Forged
-
Control system:
-
Taiwan Delta
-
Roller stations:
-
18 Stations
-
Decoiler:
-
5T Manual Decoiler
Quick Details
-
Type:
-
Tile Cutting Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Weight:
-
2800 kg
-
Product name:
-
Downspout Rain Gutter Making Machine Water Gutter Forming Machine
-
Application:
-
Building Construction
-
Raw material:
-
Galvanized Coil
-
Main frame:
-
350-500mm H-beam Steel
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 Mov
-
Shaft material:
-
High Grade No.45 Forged
-
Control system:
-
Taiwan Delta
-
Roller stations:
-
18 Stations
-
Decoiler:
-
5T Manual Decoiler
Product Overview

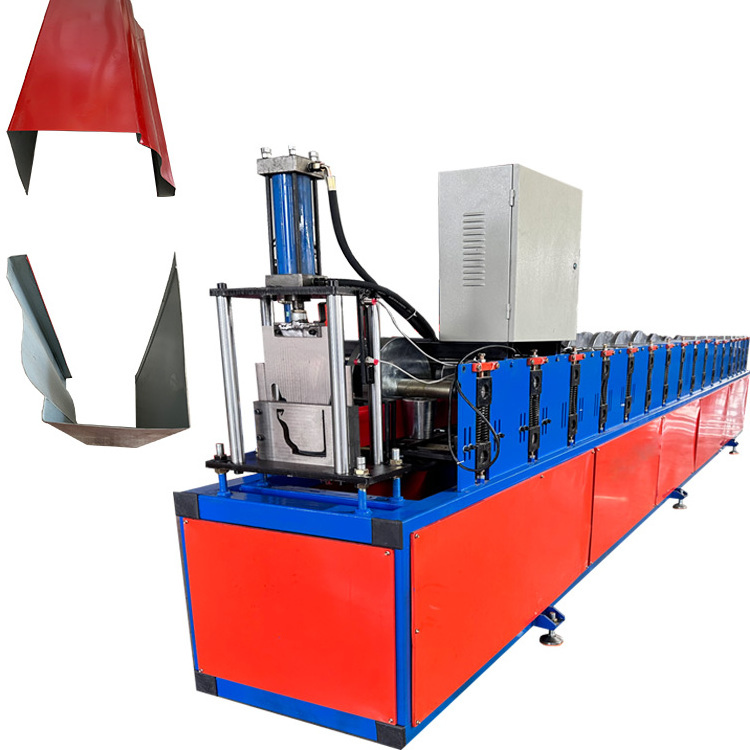

Rain Gutter Roll Forming Machine
The gutter machine can use color steel or aluminum plate to make the gutter plate. The forming plate is rolled, closed, and then bent and narrowed by special equipment. It has good weather resistance, simple design, simple installation, safe and durable, and noble. Elegant. The gutter board can be sprayed with rich colors according to the individual needs of users, and its metal texture and beautiful shape can bring a strong expressive force to the building.
1. The whole machine is controlled by PLC, and multiple safety protections can be set to effectively avoid accidents;
2. The bed is made of steel plate welded parts and tempered to effectively eliminate internal stress and the body is not easy to deform;
3. The forming frame is welded by channel steel;
4. The roll shaft is made of 45# steel, which has been quenched and tempered;
5. The material of forming punching and shearing die is Gr12;
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Raw material width
|
300-600 mm
|
|
2
|
Sheet effective width
|
80-200 mm
|
|
3
|
Raw material
|
Color steel sheet , Stainless steel or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
40 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
Rain Gutter Roll Forming Machine
is made by cold-formed forming process. It is widely used by people for its energy-saving and environmentally friendly features. It uses less steel to complete the required specified load, and no longer depends on increasing the amount of plates or materials. The mechanical properties of the steel can meet the load requirements, but the mechanical properties of the steel can be improved by changing the cross-sectional shape of the steel product. Cold bending is a material-saving and energy-saving new metal forming process and new technology. Cold bending is a multi-pass forming and rolling that is arranged in sequence to continuously bend the coils and other metal plates and strips in the transverse direction. Make profiles of specific cross-sections
Details Images
Decoiler
Rain Gutter Roll Forming Machine
load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.
Machine frame
Rain Gutter Roll Forming Machine
adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
Forming roller
Rain Gutter Roll Forming Machine
forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
Control part
Rain Gutter Roll Forming Machine
control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
