Quick Details
-
Table Travel (Z) (mm):
-
1400 mm
-
Travel (W-axis) (mm):
-
200 mm
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
2.5KW
-
Place of Origin:
-
China
-
Brand Name:
-
SJMC
-
Voltage:
-
220V 1PH 50HZ /380V 3PH 50HZ
-
Weight (T):
-
1.5 T
-
Centering:
-
Automatic
-
Spare parts:
-
Same as Serdi/ Newen
-
Certification:
-
CE
Quick Details
-
Table Size (mm):
-
1450mm
-
Table Travel (X) (mm):
-
150 mm
-
Table Travel (Y) (mm):
-
1400 mm
-
Table Travel (Z) (mm):
-
1400 mm
-
Travel (W-axis) (mm):
-
200 mm
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
2.5KW
-
Place of Origin:
-
China
-
Brand Name:
-
SJMC
-
Voltage:
-
220V 1PH 50HZ /380V 3PH 50HZ
-
Weight (T):
-
1.5 T
-
Centering:
-
Automatic
-
Spare parts:
-
Same as Serdi/ Newen
-
Certification:
-
CE

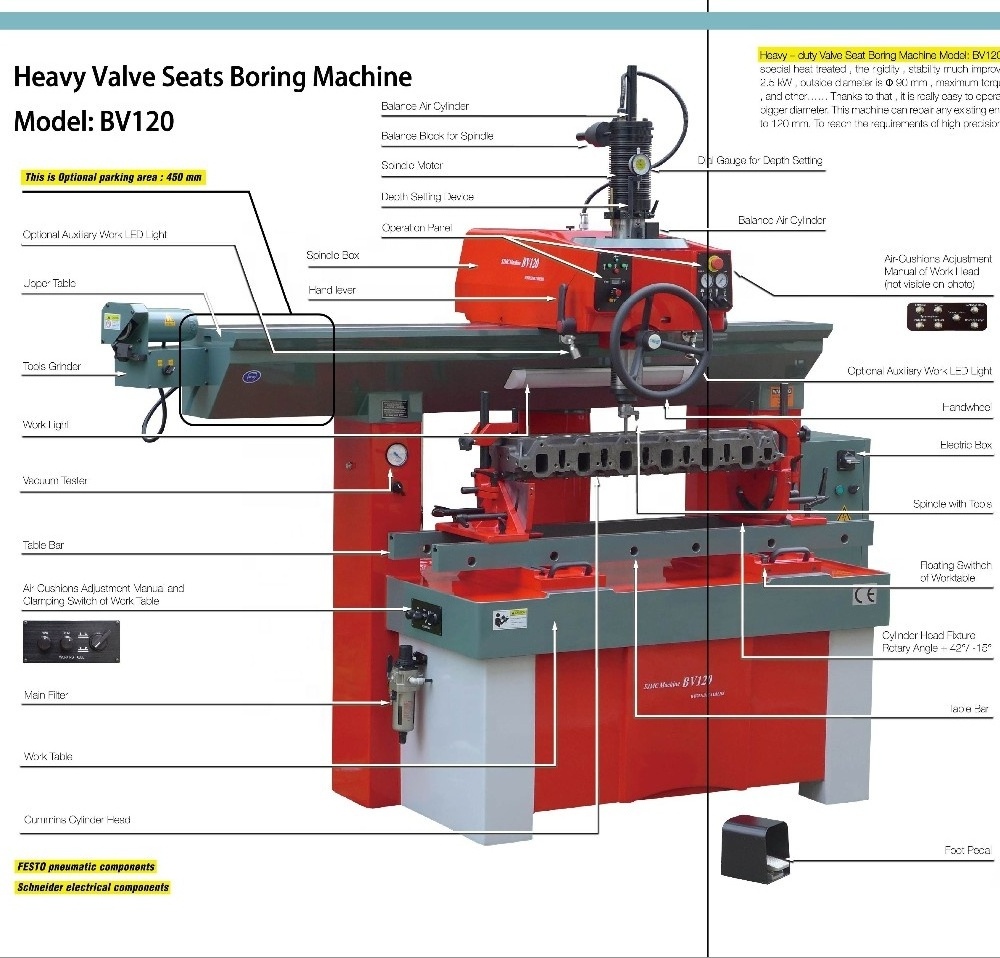

Heavy – duty Valve Seat Boring Machine Model: BV120 , this machine makes use of special steel and spheroidal graphite cast iron , its body are special heat treated , the rigidity , stability much improved along with the working life. It is equipped with one heavy duty spindle , rated power is 2.5 kW , outside diameter is Φ 90 mm , maximum torque is 42 N.M. . Moreover , the triple air-float patented work head , and the air floating table , and other…… Thanks to that , it is really easy to operate , although this is a heavy machine. Designed for the valve seats from the smallest to the bigger diameter. This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 18mm to 120 mm. To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Main Specifications
|
Model |
BV120 |
|
Type of Drive System |
Air / Electric |
|
Max. Length of Cylinder Head |
unlimited |
|
Max. Width of Cylinder Head |
500 mm |
|
Max. Height of Cylinder Head |
450 mm |
|
Max. Boring Dia. |
18 – 120 mm |
|
Work Head Longitudinal Floating Travel |
990 mm |
|
( with optional parking area : 450 mm ) |
1440 mm |
|
Work Head Cross Floating Travel |
40 mm |
|
Sphere – Cylinder Travel |
9 mm |
|
Floating inclination angle of Spindle |
5 ° |
|
Table Travel |
160 mm |
|
Vertical Travel of Spindle |
200 mm |
|
Power of Spindle |
2.5 kW Spindle Motor |
|
Max. Torque of Spindle Motor |
42 Nm |
|
Spindle Speed |
100 – 800 rpm stepless |
|
Power of Tools Grinder |
0.27 kW |
|
Tools Grinder Rotation Speed |
2800 rpm |
|
Clamper Rotary Angle |
+ 42 ° / -15 ° |
|
Required Rated Air Pressure |
6 Bar / 85 PSI |
|
Required Max. Air Flow |
400 L / Min |
|
Required Continuous Air Flow |
60 L / Min |
|
Length of Machine |
1685 mm |
|
Width of Machine |
1050 mm |
|
Max. Height of Machine |
2180 mm |
|
Min. Height of Machine |
1980 mm |
|
Roughness of Finishing |
Ra 0.6 |
|
Package Size ( L × D × H ) |
1860 × 1150 × 2200 mm |
|
N.W. |
1700 Kg |
|
G.W. |
2000 Kg |
we have in the line of engine rebuilding machine and machine tools for more than 20 years, we not only sale our produced machine, but also provide full experience for establish engine mainternance work and training.
