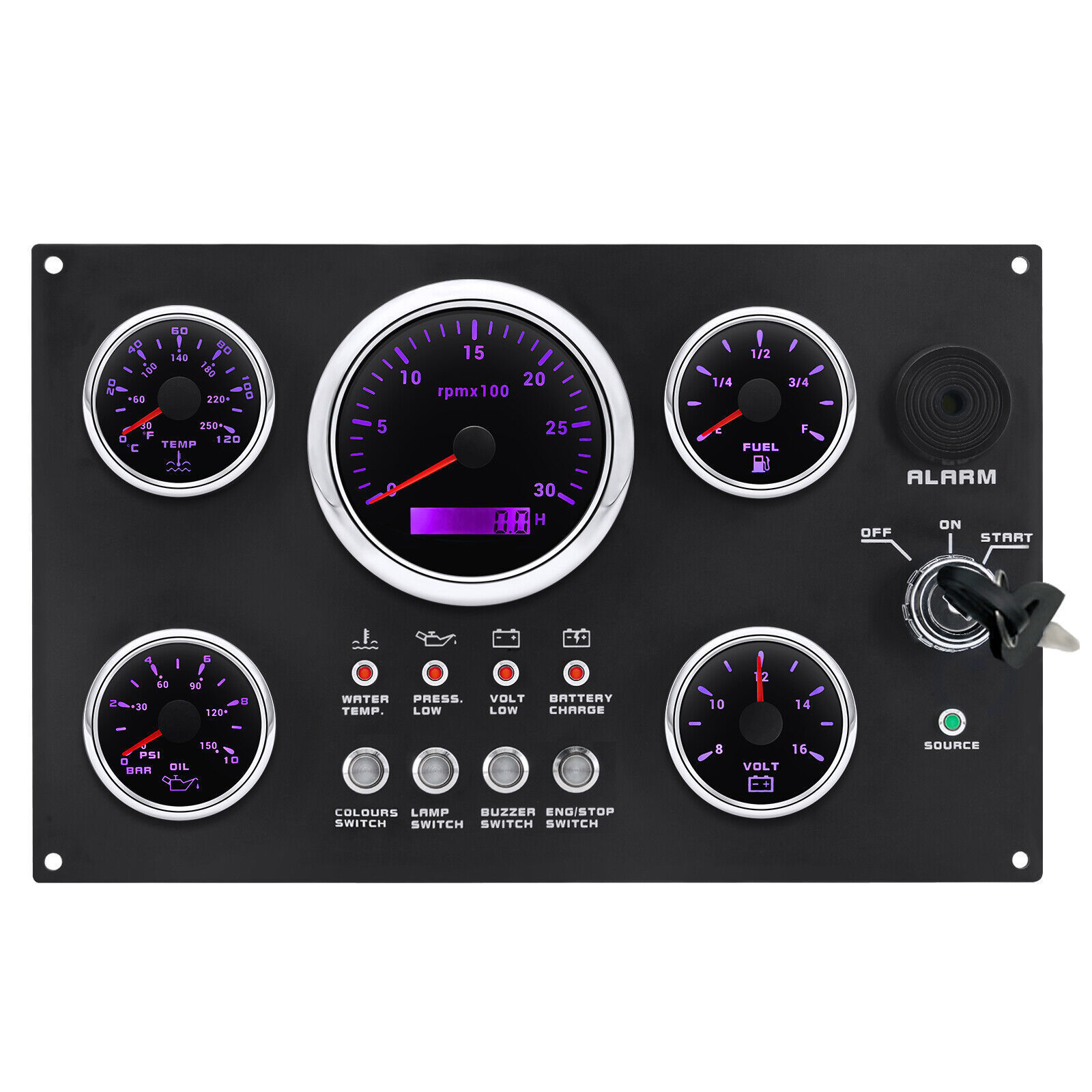

Waterproof Marine Dashboard Switch Panel Boat Dashboards 24V Diesel Engine Control Panel

Waterproof Marine Dashboard Switch Panel Boat Dashboards 24V Diesel Engine Control Panel

FOB Reference Price: Get Latest Price

≥2 Sets

US $148

≥500 Sets

US $99

≥1000 Sets

US $79

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 12 months

Gauge:: 4pcs 52mm+1pcs 85mm

Application:: Universal, boat, car, auto, marine, yacht

Material:: 316 Stainless steel bezel with glass cover

Quick Details

Place of Origin:: China

Product Name:: Waterproof Marine Dashboard Switch Panel Boat Dashboards 24

Size:: 300*190mm

Warranty:: 12 months

Gauge:: 4pcs 52mm+1pcs 85mm

Application:: Universal, boat, car, auto, marine, yacht

Material:: 316 Stainless steel bezel with glass cover

Waterproof Marine Dashboard Switch Panel Boat Dashboards 24V Diesel Engine Control Panel

Specification

Feature:
* Analog Display Tachometer & Digital Display Hour Meter.
* Clear Lens, 316 Stainless Steel Bezel with ABS Plastic Housing.
* Black Faceplate, Red Needle with 7 colors LED Illumination.
* With IP67 Waterproof, Rustproof, Anti-Fog & UV-Resistant.
* Hour Meter Records to 99999.9 Hours & Automatic Roll Over Resolution 0.1 Hour.
* Volt Gauge, Fuel Level Gauge, Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
* Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.
* Volt Gauge Requires 12 Volt Negative Ground Systems.
* One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support.

Tachometer
* Install Diameter: Φ85mm or 3-3/8"
* Engine hours: 0.0-99999.9H
* Backlight :7 Color backlight
* Indicating Range: 0~3000RPM
* Signal: Pulse
* For Tachometer, you can substitute for different unit, please contact us before / after purchase or note on the order.
* Tachometer: 0-4000rpm/0-6000RPM/7000RPM/8000RPM

Fuel Level Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: Empty - Full
* Resistance: 240 (E) - 33 (F) ohms
* Backlight: 7 Colors

Water Temperature Gauge
* Install diameter: Φ52mm
* Indication range: 0~120℃/30-250℉
* Input signal: 287.4~22.4 ohms
* Storage temperature: -40~+85℃
* Backlight: 7 Colors

Oil Pressure Gauge
* Install diameter:Φ52mm or 2-1/16"
* Indication range:0~10bar / 0-150 PSI
* Operating temperature:-30~+75℃
* Storage temperature:-40~+85℃
* Backlight: 7 Colors

Volt Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: 8 - 16 (V)
* Backlight: 7 Colors

PACKAGED
* 1x Tachometer
* 1x Water Temperature Gauge
* 1x Oil Pressure Gauge
* 1x Fuel Level Gauge
* 1x Voltmeter
* 5x Wire Harness
* 1x Instrument Panel
* 1xInstallation Manual

* 3*sensor

Item	Gauge Panel Instrument with Dashboard - Speedometer with Tachometer Fuel Gauge Water Temperature Oil Pressure Voltage Cluster Dash Gauge Set Panel for Car AUTO Boat Marine
Description:	-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration. -IP67 waterproof and dustproof grade -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc. -With curved glass (with anti-fogging function) -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))
Features:	The gauge can be change: Tachometer with Digital Hour Meter:0-3000/4000/6000/7000/8000RPM Water Temperature gauge:40-120degree Oil Pressure gauge:0-5bar/0-10bar Volt meter:8-16V/16-32V Fuel Level gauge:0-190ohm/240-330hm Marine grade push button Switch (Engine Stop or Pre-heat) Marine grade Ignition key Sealed Key Switch, 4-position With Anti-restart 10A at 12V Four positions: Accessory - Off - Ignition/Accessory - Start. Spring return to Off. Key switch is constructed from engineering thermoplastic and is fully sealed using O-rings and ultrasonic welding to protect switch to ip67 (with connector installed). Plastic face nut and nickel-plated brass backing nut. Supplied with two matching keys, and with protective key boot. 2 tone Alarm Pizzo Siren

Speed ratio adjustment: Press and hold the black rubber button for 3 seconds toenter the speed ratio setting mode, if you release the buttonfor 3 seconds, Exit the ratio setting mode, and automaticallsave the set data. After entering the setting mode , press and hold the buttonto increase the value , release the button , and then press andhold the button , the number keeps decreasing : Speed ratioadjustment range : 1-360 , adjust to the speed ra tio you wantrelease the button for 3 secon ds , the number is automaticallsaved. If your sensor is installed on the flywheel , the speed ratiovalue is equal to the number of engine gears : if the speedsignal is taken from the W point signal , The speed ratio isequal to half of the number of electrodes ( Poles / 2 ). Default ratio : 138.
