Quick Details
-
Voltage:
-
380V
-
Power:
-
150kw
-
Dimension(L*W*H):
-
depends on machine configuration
-
Weight:
-
depends on machine configuration
-
Name:
-
small scale toilet paper making machine
-
small toilet paper making machine type:
-
second hand toilet paper machine
-
paper type:
-
Jumbo roll paper
-
finial product:
-
toilet tissue napkin facial pocket paper
-
Raw material:
-
Virgin Pulp,Waste paper etc
-
Paper width:
-
1200mm
-
Capacity:
-
1.5-3T/D
-
Paper weight:
-
15-40g/m2
-
Drive mode:
-
Reducer drive (250 type reducer)
Quick Details
-
Production Capacity:
-
20 set/month
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shunfu
-
Voltage:
-
380V
-
Power:
-
150kw
-
Dimension(L*W*H):
-
depends on machine configuration
-
Weight:
-
depends on machine configuration
-
Name:
-
small scale toilet paper making machine
-
small toilet paper making machine type:
-
second hand toilet paper machine
-
paper type:
-
Jumbo roll paper
-
finial product:
-
toilet tissue napkin facial pocket paper
-
Raw material:
-
Virgin Pulp,Waste paper etc
-
Paper width:
-
1200mm
-
Capacity:
-
1.5-3T/D
-
Paper weight:
-
15-40g/m2
-
Drive mode:
-
Reducer drive (250 type reducer)

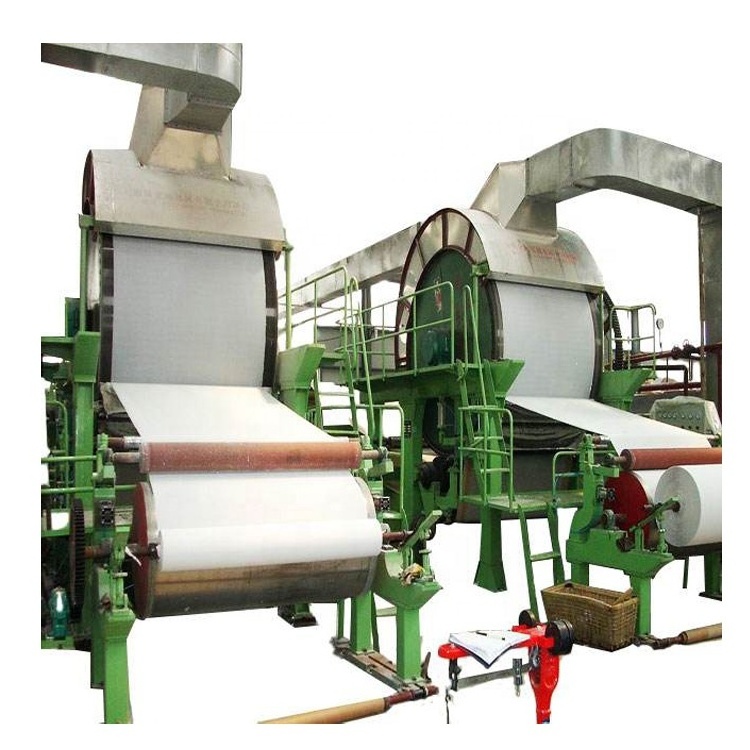

small scale second hand tissue toilet paper mill rolls making machine in pakistan
PRODUCT BRIEF
The are many models and different capacity production line, Such as 787/1092/1575/1880/2000/2400/3600 model and so on. The small toilet paper rolls making machine is a set of production line from waste paper recycled/vigin pulp board to finished paper, also called: small toilet paper rolls making machine,tissue paper machine price in pakistan,small scale toilet paper making machine,second hand toilet paper machine.
PRODUCT CONFIGURATION
|
Product Name
|
small scale second hand tissue toilet paper mill rolls making machine in pakistan | ||||
|
Paper Machine Model
|
SF-787
|
SF-1092
|
SF-1575
|
SF-1880
|
SF-2400
|
|
Outpaper width(mm)
|
787-900
|
1200
|
1750
|
1880-2000
|
2400
|
|
Gauge(mm)
|
1300
|
1800
|
2400
|
2800
|
3400
|
|
Machine Capacity(T/D)
|
0.8-1
|
1.5-3
|
3-5
|
5-7
|
6-8
|
|
Cylinder mold specification(mm)
|
φ 700*1100
|
φ1000- 1250*1450
|
φ1250-1500*1950
|
φ1500*2350 |
φ
1500
*
2850
|
|
Dryer specification(mm)
|
φ1000*1100
|
φ1500-2500*1450
|
φ1500-3000*2000
|
φ2500*2350
|
φ2500*2850 |
|
Work speed(m/min)
|
20-40
|
20-80
|
100-150
|
100-180
|
150-200
|
|
Raw material
|
Waste paper ;Vigin Pulp Board;Waste paper &Vigin Pulp Board Mixed
|
||||
|
Output paper style
|
Jumbo Roll Paper
|
||||
|
Paper weight
|
15-40g/m2
|
||||
|
Drive mode
|
Reduce drive(250type reducer)
|
||||
|
Warranty
|
12 months
|
||||
|
Time of delivery
|
15-30days
|
||||
PRODUCT FEATURE
1) Reliable quality, stable performance, convenient operation, energy conservation, environmental protection
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) It is made up of molding, drying, transmission, pressing, walking platform and reeling parts.
4) Running in a high automatization and intellectualization.
5) Computer PLC control system with easy operation
PRODUCT MAIN PART
1.Dryer is used for
drying the moisture in the paper and to decorate the paper surface in
small scale toilet paper making machine
2.Pulp pump is used for extracting the paper pulp in small scale toilet paper making machine
3.Cylinder mould is used for improving paper quality in small scale toilet paper making machine
4.Roller is used for dehydrating and supporting mesh in second hand toilet paper machine
5.Dryer exhause hood function is to gathere steam in second hand toilet paper machine
PS:The main parts model is depends on the small toilet paper rolls making machine,tissue paper machine price in pakistan,small scale toilet paper making machine,second hand toilet paper machine configuration.
RAW MATERIALS
The following raw materials is made into paper pulp with paper pulp equipments (such as hydrapulper etc.) ,then paper pulp is made into paper with
JUMBO ROLL PAPER
The paper pulps is made into jumbo roll paper with small toilet paper rolls making machine,tissue paper machine price in pakistan,small scale toilet paper making machine,second hand toilet paper machine
FINAL PAPER
Then jumbo roll paper is made into the following final paper with paper converting machines,such as rewinding machine,cutting machine,packing machine and so on.The above is the whole paper making processing.
