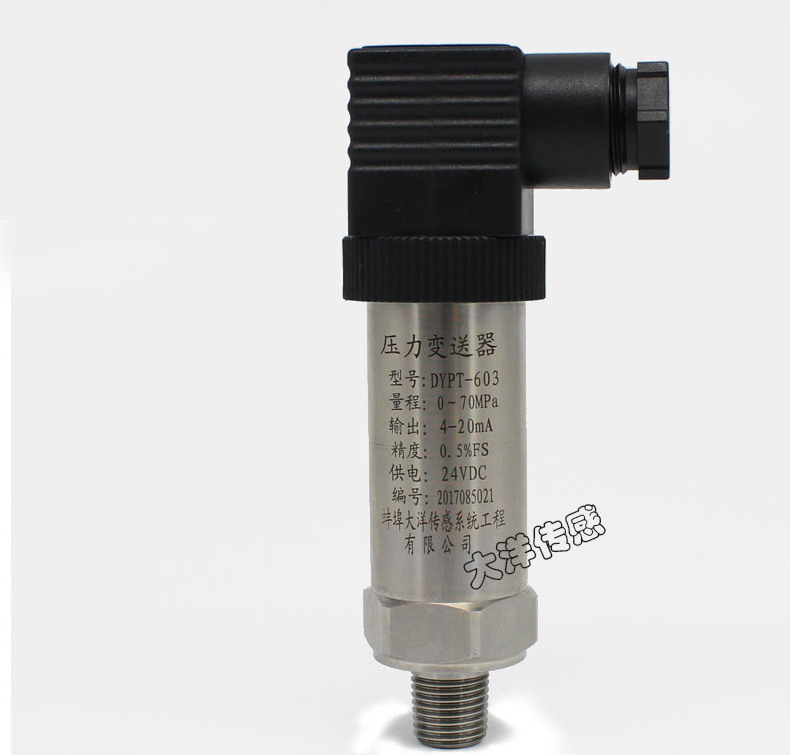

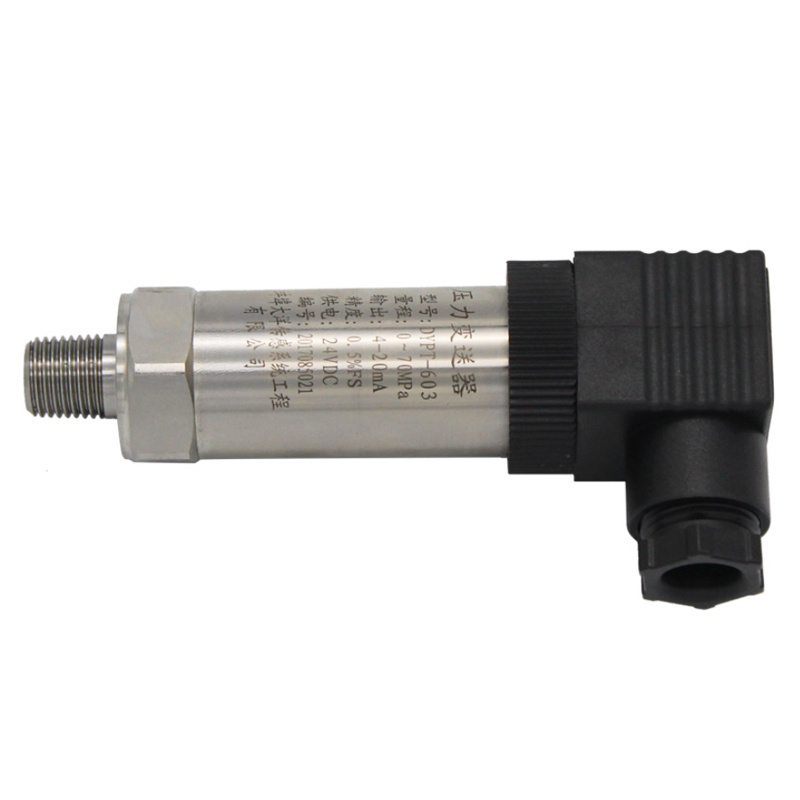

Quick Details
-
Model Number:
-
DYPT-603
-
Power supply:
-
24VDC
-
Comprehensive accuracy:
-
0.5 level (default), 0.3 level
-
output signal:
-
4-20mA,0-5V,0-10V,RS485
-
Measuring range:
-
-0.1-0-60Mpa
-
Compensation temperature:
-
-10-70℃
-
Operating temperature:
-
-20-85℃
-
Shell protection:
-
IP65
-
Measuring medium:
-
Gas, liquid, water
-
Type of pressure:
-
Gauge pressure, absolute pressure, sealed pressure
-
Overload pressure:
-
150%FS
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
China
-
Brand Name:
-
DST
-
Model Number:
-
DYPT-603
-
Power supply:
-
24VDC
-
Comprehensive accuracy:
-
0.5 level (default), 0.3 level
-
output signal:
-
4-20mA,0-5V,0-10V,RS485
-
Measuring range:
-
-0.1-0-60Mpa
-
Compensation temperature:
-
-10-70℃
-
Operating temperature:
-
-20-85℃
-
Shell protection:
-
IP65
-
Measuring medium:
-
Gas, liquid, water
-
Type of pressure:
-
Gauge pressure, absolute pressure, sealed pressure
-
Overload pressure:
-
150%FS
What features of DYPT-603 miniature load cell ?
1. Stainless steel;
2. Compression and tension measurement;
3.Suitable for pushing and pulling force gauge, medical testing, robotics and other industrial automation fields.
What specifications of DYPT-603 miniature load cell ?
|
Rated Capacity |
1, 2, 5, 10, 20, 50,75,100,200,300N |
|
Comprehensive error |
≤ ±0.2%F.S |
|
Sensitivity |
1.5±10%mV/V |
|
± 2.0%F.S |
|
|
Non-linearity |
0.2% F.S |
|
Creep |
±0.05%F.S/30min |
|
Input resistance |
|
|
Output resistance |
700±10Ω |
|
≥5000M Ω /100VDC |
|
|
Temp. effect on span |
± 0.05%F.S/10℃ |
|
Temp. effect on zero |
± 0.05%F.S/10℃ |
|
Compensated temp range |
-10~+60℃ |
|
Operating temp Range |
-20~+80℃ |
|
Excitation voltage |
5~15V |
|
Safe overload |
150%F.S |
|
Ultimate overload |
200%F.S |
|
IP66 |
Service standards
we are committed to provid e a high quality and responsive service to all clients
The fastest reply
Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manger within 24 hours. If our trade manger if off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance
Good quality is assured by advanced manufacturing technology. All products are through strict test by our professional QC team before shipping.
Door to door service
We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3-5working days to reach from our side to your side, which is very convenient for your businese.
1.What's your MOQ?
Normally our MOQ is 1 pcs,but sometimes maybe we have other order on hand,if based on ODM,MOQ can be negotiated.
2.What information do I need to provide before placing an order?
The size, capacity and usage are necessary. Besides, we may need some other parameters.
3.How long is your warranty period?
Our warranty period is 12 months.
4.Can you design and customize products for me?
Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.
5.How long can I expect to receive my goods after I place order?
Our production time are always 5-15 days after pre-production sample confirmation.
6.Can I get some samples before place order and how long for a sample?
Yes,but customer need pay for the samples and freight,the lead time for samples is about 7 days upongot the payment;
7.How is your shipping?
1)shipping by express(sample order)or by sea(bulk order)
2)worldwide shipping service available
3)please contact before order as shipping cost varies time to time
8.Are you a trading company?
We are manufacturer,our factory has passed CE,ISO9001:2008,NTEP,OIML,we have good quality control.
9.Will you have some discount?
1)To clients who bring repeat orders and large orders
2)Please contact us for Better Quote.
10.I am the buyer purchasing a large number of load cells every year, can I visit your company and discuss in person?
We are delighted to meet you in China and really welcome you to communicate technical questions with us.
Any other questions,please do not hesitate to contact us anytime!
