Quick Details
-
Model Number:
-
RS-HW-N01
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
renke
-
Theory:
-
Inductance Sensor
-
Output:
-
Digital Sensor
-
Product name:
-
auto infrared pir motion sensor detector
-
Keyword:
-
infrared motion sensor
-
Certificate:
-
CE/ ISO9001
-
Warranty:
-
2 years
-
power:
-
10~30V DC
-
Operating temperature:
-
-10℃~50℃
-
Detection range:
-
Diameter 6m (when installation height is 3.6m)
-
Installation height:
-
2.5m---6m
-
Detection angle:
-
360 Degree
-
Output signal:
-
RS485
Quick Details
-
Use:
-
Consumption Sensor
-
Mounting Type:
-
Infrared pir motion detector
-
Description:
-
Infrared pir motion detector, Infrared pir motion detector
-
Model Number:
-
RS-HW-N01
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
renke
-
Theory:
-
Inductance Sensor
-
Output:
-
Digital Sensor
-
Product name:
-
auto infrared pir motion sensor detector
-
Keyword:
-
infrared motion sensor
-
Certificate:
-
CE/ ISO9001
-
Warranty:
-
2 years
-
power:
-
10~30V DC
-
Operating temperature:
-
-10℃~50℃
-
Detection range:
-
Diameter 6m (when installation height is 3.6m)
-
Installation height:
-
2.5m---6m
-
Detection angle:
-
360 Degree
-
Output signal:
-
RS485

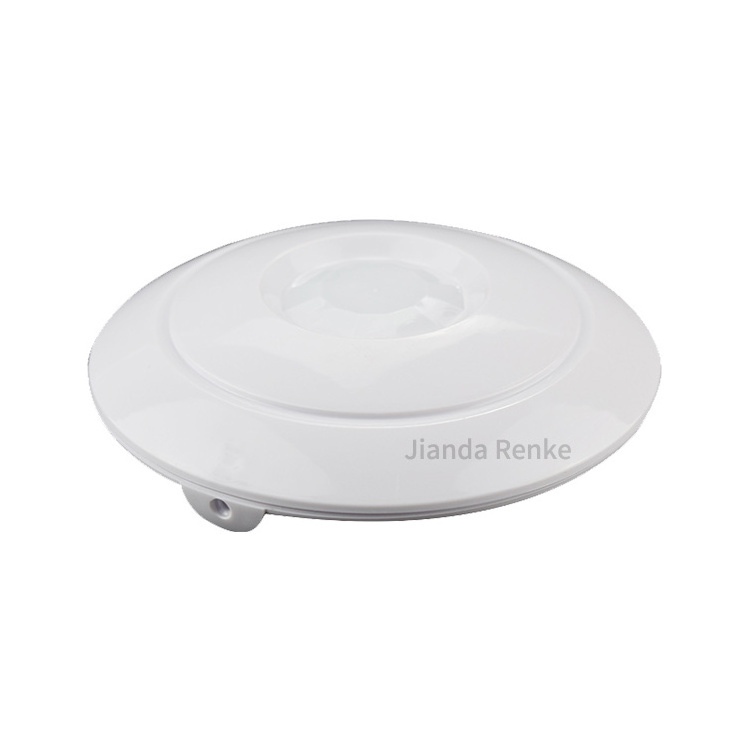

Indoor security alarm system auto infrared PIR movement motion sensor detector
Product Description
Infrared pir motion detector has a high stability passive infrared detector. Using advanced signal analysis and processing technology, it has super high detection and anti-false alarm performance. When an intruder passes through the detection area, the detector will automatically detect the movement of the human body in the area.
Parameter of
Infrared pir motion detector
|
Power supply
|
|
10 ~ 30V DC
|
|
|
|||
|
Power consumption
|
|
0.4W
|
|
|
|||
|
Type Sensor
|
|
dual pyroelectric infrared sensor
|
|
|
|||
|
Alarm delay
|
|
30s, 10s, 5s output optional
|
|
|
|||
|
Installation
|
|
Ceiling
|
|
|
|||
|
Mounting height
|
|
2.5 ~ 6m
|
|
|
|||
|
Detection range
|
|
6M diameter (mounting height 3.6m)
|
|
|
|||
|
Detection angle
|
|
full 360 °
|
|
|
|||
|
Signal Output
|
|
RS485 (Modbus-RTU)
|
|
|
|||
|
Working Environment
|
|
-10 ℃ ~ 50 ℃, ≤ 95%, non-condensing
|
|
|
|||
Detailed Images
Feature of
Infrared pir motion detector
1.With automatic temperature compensation function.
2. Three kinds of alarm delay output are optional.
3.Using 8-bit low-power CMOS processor.
4. The standard Modbus-RTU protocol can be used for secondary development.
5. Anti-RFI interference: 20~1000
MHz
(such as mobile communication).
Output method
