Quick Details
-
Model Number:
-
SUL180
-
rate Voltage:
-
110/220VAC
-
Power Consumption::
-
1.5w
-
Ambient Humidity:
-
Below 85%
-
Minimum Time set interval:
-
15 Minutes
-
Driving method:
-
AC Synchronous motor
-
Max. Current:
-
16A
-
Ambient temperature:
-
-10℃~+50℃
-
Load Capacity::
-
15A 250V
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTOPSUN/ODM
-
Model Number:
-
SUL180
-
rate Voltage:
-
110/220VAC
-
Power Consumption::
-
1.5w
-
Ambient Humidity:
-
Below 85%
-
Minimum Time set interval:
-
15 Minutes
-
Driving method:
-
AC Synchronous motor
-
Max. Current:
-
16A
-
Ambient temperature:
-
-10℃~+50℃
-
Load Capacity::
-
15A 250V

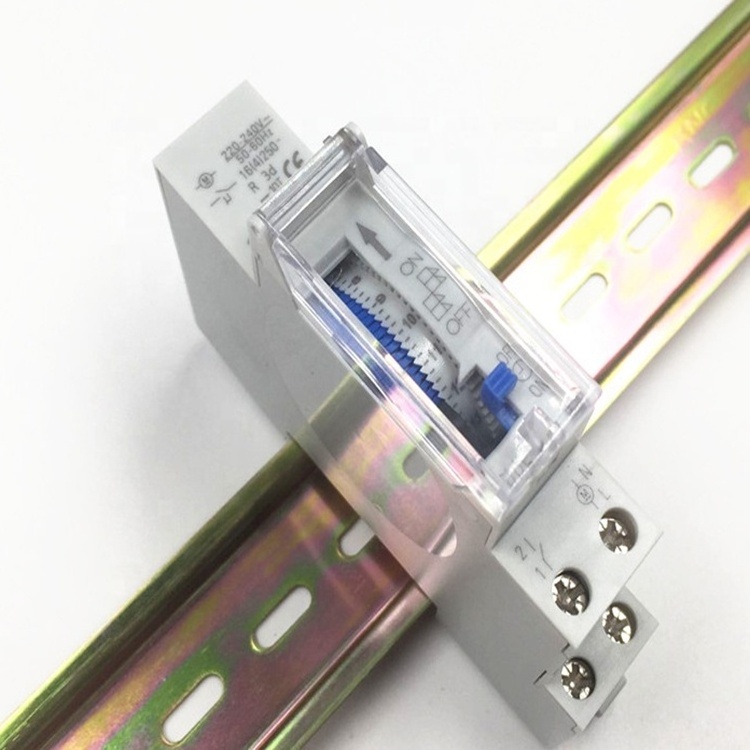

24 hour Mechanical Time Switch SUL180a
| CLASSIFICATION | TIMER | ||||
| MODEL | SUL181h | SYN161h | SUL180a | SUL160a | |
| CONTACT CAPACITY | AC220V 16(4)A | AC220V 16(4)A | AC230V 16(4)A | AC220V 16(4)A | |
| FULL TIMING RANGE | 24h | 24h | 24h | 24h | |
| CONTACT RESISTANCE | ≤50mΩ | ≤50mΩ | ≤50mΩ | ≤50mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | ≥100MΩ | ≥100MΩ | ≥100MΩ | |
| COIL VOLTAGE | 110, 230V AC | 110, 230V AC | 110,230V AC | 110, 230V AC | |
| LIFE | ELECTRICAL | 10^5 times | 10^5 times | 10^5 times | 10^5 times |
| MECHANICAL |
10^7 times |
10^7 times | 10^7 times | 10^7 times | |
| OPERATING TEMPERATURE | -20ºC ~ +55ºC | -20ºC ~ +55ºC | -10ºC ~ +55ºC | -10ºC ~ +55ºC | |
|
STORAGE BATTERY (WORKING RESERVE) |
Time 70h | Whithout battery | Time 150h | Whithout battery | |
| MINIMUM SETTING UNIT | 10 Minutes | 10 Minutes | 15 Minutes | 15 Minutes | |
| SET UP TIMES |
10min/per time 144 times |
15min/per time 96 times |
15min/per times 96 times |
15min/per time 96 times |
|
| CONSUMED POWER | 2.5VA | 1VA | |||
|
