70V - 250V AC Voltage Test Range Non-Contact Voltage Tester with LED Flashlight 250V DC Voltage Detector Pencil

70V - 250V AC Voltage Test Range Non-Contact Voltage Tester with LED Flashlight 250V DC Voltage Detector Pencil

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.2

≥1000 Pieces

US $1.15

≥3000 Pieces

US $1.1

≥5000 Pieces

US $1.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CZDANG

Model Number:: 48NS

Product Name:: Test pencil

Type:: Non-contact

Material:: ABS shell

Size:: 145mm*20mm*20mm

Color:: Yellow

Power Supply:: 2pcs 1.5V Batteries(Battery Model:LR44,157,V13GA,AG13,A76)

Test AC Voltage Range:: 70V-250V

Test DC Voltage Range:: Less than 250V

Polarity Test Range:: DC Voltage 1.2V-36V

Continuity Testing(COT) Range:: 0-100MΩ

Quick Details

Warranty:: 1 years

Power:: Electronic

Place of Origin:: Guangdong, China

Brand Name:: CZDANG

Model Number:: 48NS

Product Name:: Test pencil

Type:: Non-contact

Material:: ABS shell

Size:: 145mm*20mm*20mm

Color:: Yellow

Power Supply:: 2pcs 1.5V Batteries(Battery Model:LR44,157,V13GA,AG13,A76)

Test AC Voltage Range:: 70V-250V

Test DC Voltage Range:: Less than 250V

Polarity Test Range:: DC Voltage 1.2V-36V

Continuity Testing(COT) Range:: 0-100MΩ

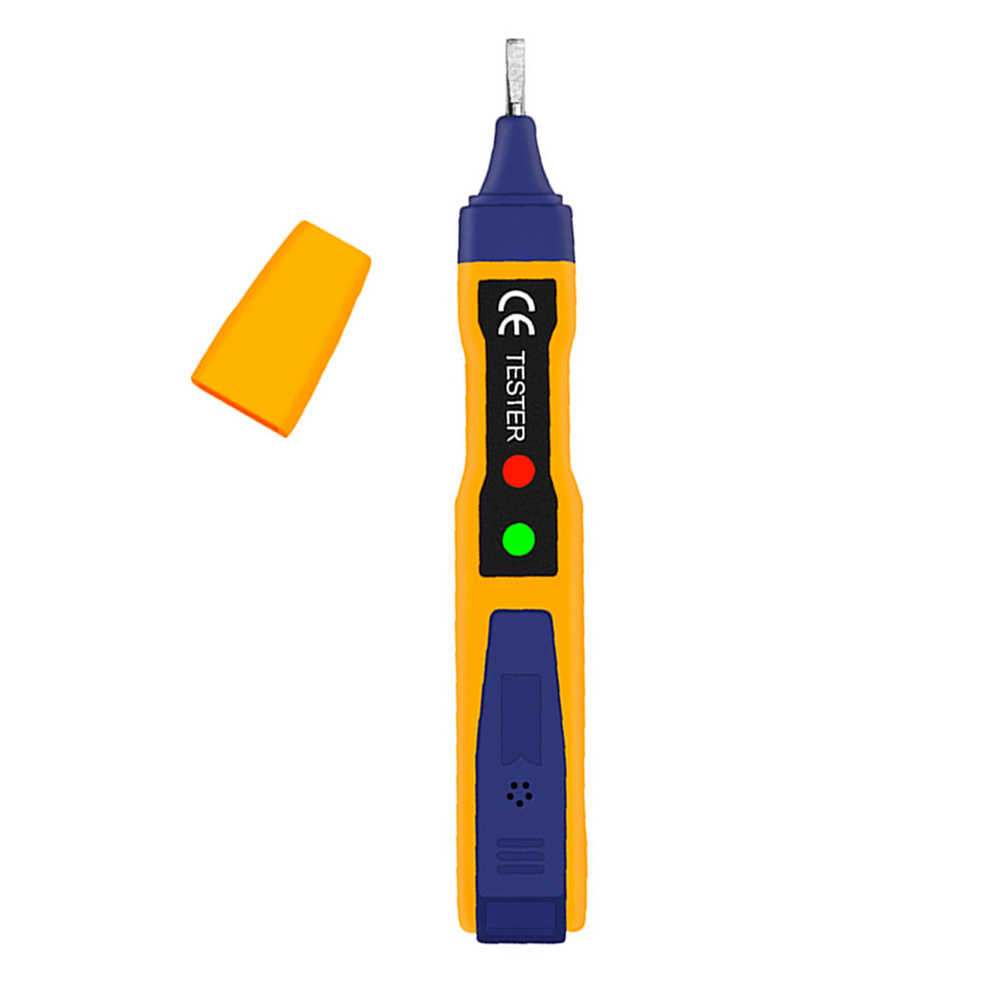

48NS Non Contact Test Pen

Non-contact test pencil,accurate electricity measurement,safe and efficient.

Non-contact gorion sensor,indoor wiring cable detection is no longer a concern,safe and fast,high voltage electrical measurement zero contact.

Intelligent zero line recognition,safe check and insulation operation.

High degree of protection,intelligent zero line recognition,breakpoint detection,non-contact and safe.

New smart circuit board,electromagnetic buzzer,fall protection,humanized pen holder.

Power failure detection,intelligent identification,in the case of electrification,the line breaks and the other end of the wire is not electrified(or may carry a weak voltage),the breakpoint can be quickly detected,different from the general low-cost tester,the sensitivity is too high and alarm is random.

Product Name			Test pen
Type			Non-contact
Model Number			48NS
Material			ABS shell
Size			145mm20mm20mm
Color			Yellow
Power Supply			2pcs 1.5V Batteries(Battery Model:LR44,157,V13GA,AG13,A76)
Function			AC Voltage testing,DC Voltage testing,Polarity testing,Continuity testing
Test AC Voltage Range			70V-250V
Test DC Voltage Range			Less than 250V
Polarity Test Range			DC Voltage 1.2V-36V
Continuity Testing(COT) Range			0-100MΩ(O=0-5MΩ，L=0-50MΩ，H=0-100MΩ)
Working Condition			-100℃-50℃，50Hz-500Hz

How To Use The 48NS Test Pen?

Turn the light to the “L”,the pen tip is close to the wires switches,plugs,etc.If the green light turns on and there are continuous beeps,it means there is electricity and you should pay attention to safe.

The test should be started with “L” sensitivity.When you find that is not sensitivity enough,please turn the switch to “H”(High)

Finger contact with copper can increase sensitivity

In the testing,the fire line is distinguished by the distance.Comparing these two,those who are far away and inductive are the“wire of fire”

The five-core cable needs to be stripped of the black sheath for detection,because the sheath has a shielded metal mesh

Please mark the switch with "O"(lowest sensitivity)and insert the pen tip into the "hot wire" green indicator light to indicate when you testing the metal parts(sockets,switches,wires,etc.)with "(live wire)"

Warning:

To test the DC voltage below 36V,you need to touch the copper sheet.
Please do not carry out AC voltage above 250V.

Keep far away from water and fire.
