Quick Details
-
Application:
-
indoor and outdoor
-
Rated Lifting Moment:
-
10kn-200 Kn
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Armagh
-
Weight (KG):
-
5000 kg
-
Product Name:
-
Gantry Crane With Magnet Or Electromagnetic Plate
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Lifting mechanism:
-
Eliectric Hoist
-
Control method:
-
Wireless Remote Control
-
Type:
-
double beam gantry crane
-
Power Source:
-
3 Phase 380V 50hz or customize
-
Working Class:
-
A3-A8
-
Color:
-
Yellow or orange
-
Control way:
-
Cabin Control
-
Crane feature:
-
Easy Operated Gantry Crane
Quick Details
-
Rated Loading Capacity:
-
5~100t
-
Max. Lifting Height:
-
6m~30m
-
Span:
-
7.5-31.5m
-
Application:
-
indoor and outdoor
-
Rated Lifting Moment:
-
10kn-200 Kn
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Armagh
-
Weight (KG):
-
5000 kg
-
Product Name:
-
Gantry Crane With Magnet Or Electromagnetic Plate
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Lifting mechanism:
-
Eliectric Hoist
-
Control method:
-
Wireless Remote Control
-
Type:
-
double beam gantry crane
-
Power Source:
-
3 Phase 380V 50hz or customize
-
Working Class:
-
A3-A8
-
Color:
-
Yellow or orange
-
Control way:
-
Cabin Control
-
Crane feature:
-
Easy Operated Gantry Crane
Product Description

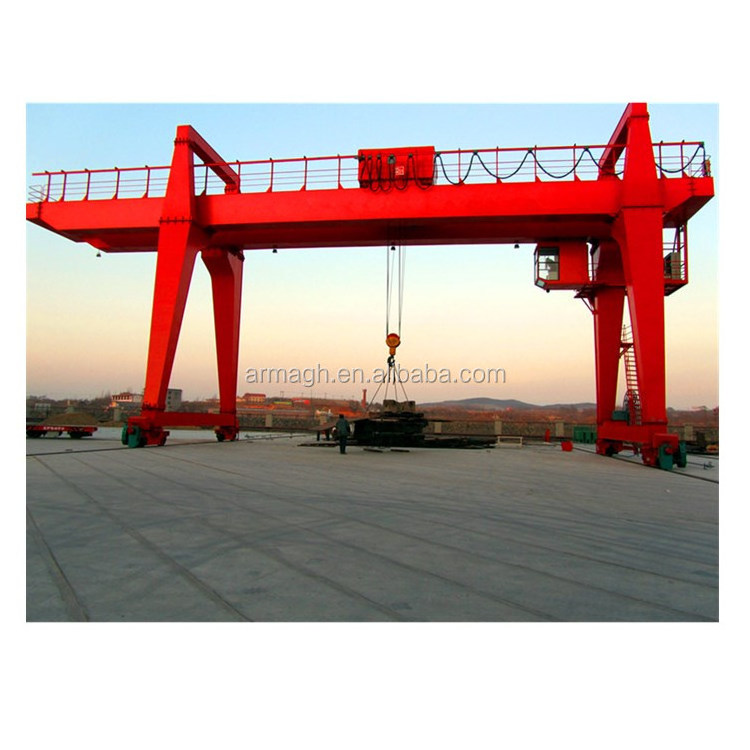

Gantry crane (also known as gantry crane) is a bridge crane supported on the ground track by two side legs. In structure, it is composed of portal frame, cart running mechanism, lifting trolley and electric part. Some gantry cranes only have outriggers on one side, while the other side supports on the workshop or trestle, which is called semi-gantry crane. The upper part of the gantry frame of a gantry crane (including the main girder and end girder), the supporting legs, the lower cross beam, etc., is composed of the upper part of the gantry frame of the gantry crane. In order to expand the scope of crane operation, the main girder can extend beyond the outriggers to one or both sides to form a cantilever. Lifting trolley with boom can also be used to expand the scope of crane operation by pitching and rotating the boom.
Detailed Images
Hook gantry crane is composed of double main girders, supporting legs, upper end girders and lower end girders. The portal frame is divided into box, truss, box and truss mixing and other forms, which are welded by steel plate and section steel respectively. In order to facilitate storage and transportation, the main beam, supporting leg and lower cross beam are connected by bolts.
Lifting mechanism:
The car assembled by motor, reducer and drum as lifting mechanism can run along the main girder, as shown in the random general drawing.
Car operating mechanism:
It consists of motor, reducer and big wheel, or cycloid pinwheel reducer and big wheel.
Size Information
|
Loading capacity
|
5 ~ 100t
|
|
Lifting height
|
6 ~ 30 m or customized
|
|
Lifting speed
|
Vary with lifting capacity, or customized.
|
|
Span
|
10.5~31.5 m
|
|
Lifting mechanism
|
Wire rope hoist or electric chain hoist
|
|
Working class
|
A5-A8
|
|
Working temperature
|
-20 ~ 40°
|
|
Power supply
|
AC-3Phase-220//230380/400/415/440V-50/60Hz
|
|
Control voltage
|
DC -36 / 48V
|
|
Motor protection class
|
IP54, IP55, IP65
|
|
Control way
|
Cabin, wireless remote, pendant push button
|
|
Safety device
|
Buffer,current overload protection,overload device,power failure protection
|
|
Application area
|
Factory,workshop,warehouse,power station,logstic,etc.
|
Related Products
Packing&Shipping
Packing and Shipping:
1. We pack the cranes by export standard wooden pallet, wooden case, steel pallet or as your request.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity cranes and parts, to help customer save ocean freight.
1. We pack the cranes by export standard wooden pallet, wooden case, steel pallet or as your request.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity cranes and parts, to help customer save ocean freight.
Company Introduction
➽
➽
Since 1995,more than 50 years crane, hoist and winch produce Experience;
➽ ➽ The only designated supplier for China War Industry and Aerospace Lifting Equipment;
➽ ➽ Asian biggest crane production independent workshop with 40,000 square meters;
➽ ➽ > 6S management system with strict quality control;
➽ ➽ The only designated supplier for China War Industry and Aerospace Lifting Equipment;
➽ ➽ Asian biggest crane production independent workshop with 40,000 square meters;
➽ ➽ > 6S management system with strict quality control;
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your warranty period?
A:
12 months from cranes accepted;
3. Q: Do you have engineer oversea installation service?
A: Yes; We have;
4. Q: What's your package?
A:
Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
5. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
