Quick Details
-
Model Number:
-
KAN-B2-SW25P48
-
Max. Current:
-
10A
-
Mechanical Life:
-
10000 Cycles
-
Product name:
-

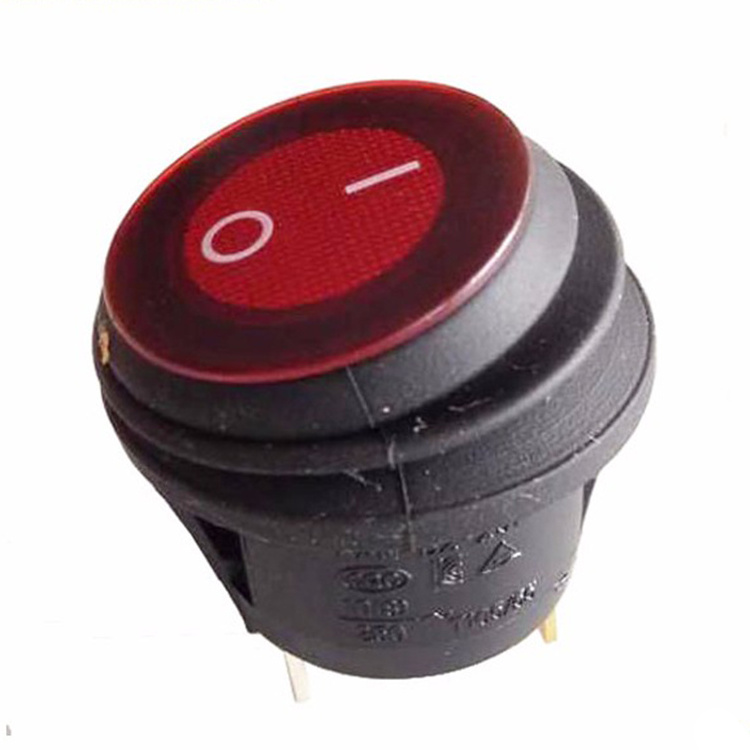

ON-OFF 3 pins round DC waterproof rocker switch with red LED
-
Product type:
-
KAN-B2-SW25P48
-
Contact Resistant:
-
30mΩ MAX
-
Insulation Resistance:
-
100MΩ MIN
-
Weight:
-
25g
-
Color:
-
RED LED
-
Material:
-
plastic
-
Configuration:
-
SPST
-
Terminal form:
-
#187 quick-connect Terminal
-
Mounting:
-
Snap-In
-
Certification:
-
ce
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
SWITECH
-
Model Number:
-
KAN-B2-SW25P48
-
Max. Current:
-
10A
-
Mechanical Life:
-
10000 Cycles
-
Product name:
-
ON-OFF 3 pins round DC waterproof rocker switch with red LED
-
Product type:
-
KAN-B2-SW25P48
-
Contact Resistant:
-
30mΩ MAX
-
Insulation Resistance:
-
100MΩ MIN
-
Weight:
-
25g
-
Color:
-
RED LED
-
Material:
-
plastic
-
Configuration:
-
SPST
-
Terminal form:
-
#187 quick-connect Terminal
-
Mounting:
-
Snap-In
-
Certification:
-
ce
Products Description
|
Specification & Drawing
|
|
|
|
|||
|
Name
|
KAN-B2-SW25P48 free sample DC 24V ON-OFF 3 pins round waterproof rocker switch with red LED
|
|
|
|||
|
Model
|
KAN-B2-SW25P48
|
|
|
|||
|
Rating
|
10A 250VAC
|
|
|
|||
|
Contact resistance
|
30mΩ MAX
|
|
|
|||
|
Insulation resistance
|
100MΩ MIN
|
|
|
|||
|
Operation force
|
4±1.5 Max N
|
|
|
|||
|
Operation life
|
10,000 cycles
|
|
|
|||
|
Terminal form
|
#187 quick-connect Terminal
|
|
|
|||
|
Solder ability
|
235±5℃ for 3±0.5s
|
|
|
|||
|
Operation temperature
|
-25℃~105℃
|
|
|
|||
|
Storage temperature
|
-35℃ ～ 115℃
|
|
|
|||
|
Material & Color
|
|
|
|
1. HOUSING
|
NYLON66
|
|
|
2. SHAFT
|
NYLON66
|
|
|
3. PLUNGER
|
NYLON66
|
|
|
4, SOLDERING TERMINAL
|
BRASS STRIP
|
|
|
5. MOVING TERMINAL
|
BRONZE STRIP
|
|
|
6. SUPPORT
|
COPPER STRIP
|
|
|
7. COMPRESSED SPRING
|
STAINLESS STEEL WIRE
|
|
|
8. CONTACT
|
AgCdO / COPPER
|
|
|
9. TOP COLUMN
|
BRASS STRIP
|
|
|
10. LIGHT
|
RED LED
|
|
