Quick Details
-
Brand Name:
-
AlteOptic
-
Use:
-
FTTH FTTB FTTX Network, Wall and pole mounted
-
Warranty Time:
-
3 years
-
External size:::
-
1U,2U,3U,4U
-
Fiber Port:::
-
LC,SC,FC,ST
-
Color:::
-
white , black ,grey
-
Certification:
-
CE RoHS FCC
-
Core:::
-
8,12,24,36........96
-
Material:
-
Cold Rolled Steel or Aluminum
-
Storage Temperature:
-
-45~+65℃
-
Thickness:
-
0.8 mm
-
weight:
-
0.72kg
Quick Details
-
Type:
-
Fiber optic patch panel
-
Model Number:
-
8 port sc
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AlteOptic
-
Use:
-
FTTH FTTB FTTX Network, Wall and pole mounted
-
Warranty Time:
-
3 years
-
External size:::
-
1U,2U,3U,4U
-
Fiber Port:::
-
LC,SC,FC,ST
-
Color:::
-
white , black ,grey
-
Certification:
-
CE RoHS FCC
-
Core:::
-
8,12,24,36........96
-
Material:
-
Cold Rolled Steel or Aluminum
-
Storage Temperature:
-
-45~+65℃
-
Thickness:
-
0.8 mm
-
weight:
-
0.72kg

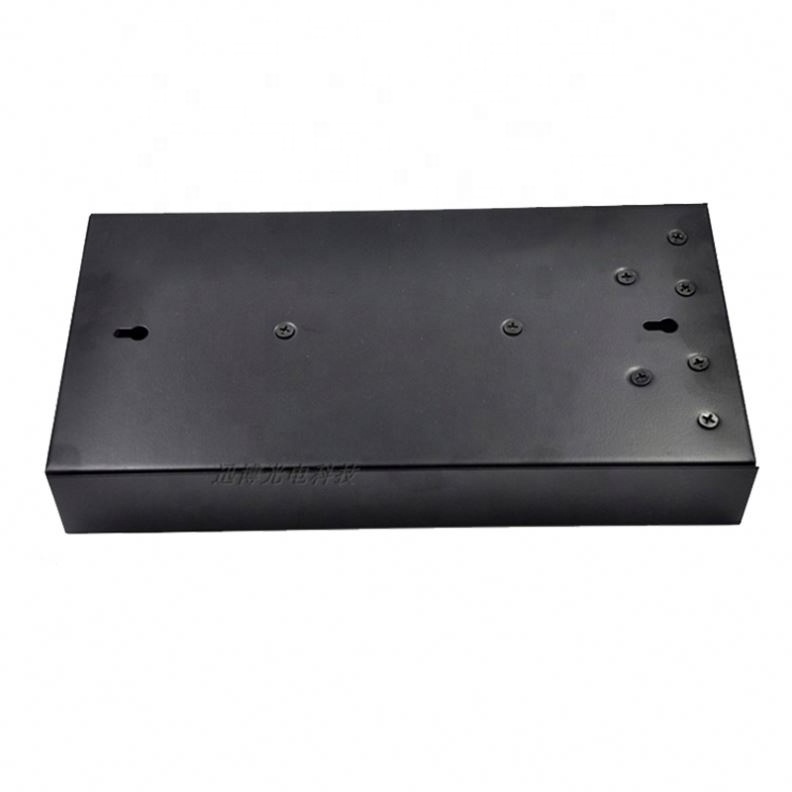

the removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.The flexibility of its two piece construction allows you maintain a stock of the chassis and then attach a suitable front panel as required.
Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
|
Specification
|
|
|
Fiber Capacity of panel
|
8-144 core(8 12 24 48 port usually)
|
|
Panel Connector
|
SC LC ST FC
|
|
Type
|
Sliding Fixed
|
|
Dimension
|
19'' 1U/2U/3U/4U...
|
|
Material
|
Cold Rolled Steel or Aluminum
|
|
Storage Temperature
|
-45~+65℃
|
|
Thickness
|
0.8 mm
|
|
1.0 1.2 mm
|
Cable ties, mounting ear screws, and spiral wrap tube
|
Applications:
1.Telecommunications
2.Subscriber loop
3.Fiber to the home (FTTH)
4.LAN/WANCATV
