Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CHIERDA
-
Model Number:
-
CD-528
-
Dimensions:
-
116*61*35mm(without antenna)
-
Frequency Range:
-
VHF / UHF / Other 136-174MHz/400-480MHz/245-246MHz
-
Radio Type:
-
IP66 waterproof radio
-
Certification:
-
CE
-
Output Power:
-
5W Two Way Radio
-
Radio Color:
-
Black, Red, Yellow , Blue
-
Rated Voltage:
-
DC 7.4V
-
Modulation mode:
-
FM
-
Channel Spacing:
-
12.5/25Khz
-
Security code:
-
CTCSS/DCS program
-
Antenna Impedance:
-
50Ω
-
Special Function:
-
Busy Channel Lock Out
Quick Details
-
Talk Range:
-
3-5kms
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CHIERDA
-
Model Number:
-
CD-528
-
Dimensions:
-
116*61*35mm(without antenna)
-
Frequency Range:
-
VHF / UHF / Other 136-174MHz/400-480MHz/245-246MHz
-
Radio Type:
-
IP66 waterproof radio
-
Certification:
-
CE
-
Output Power:
-
5W Two Way Radio
-
Radio Color:
-
Black, Red, Yellow , Blue
-
Rated Voltage:
-
DC 7.4V
-
Modulation mode:
-
FM
-
Channel Spacing:
-
12.5/25Khz
-
Security code:
-
CTCSS/DCS program
-
Antenna Impedance:
-
50Ω
-
Special Function:
-
Busy Channel Lock Out
Products Description
Introduce

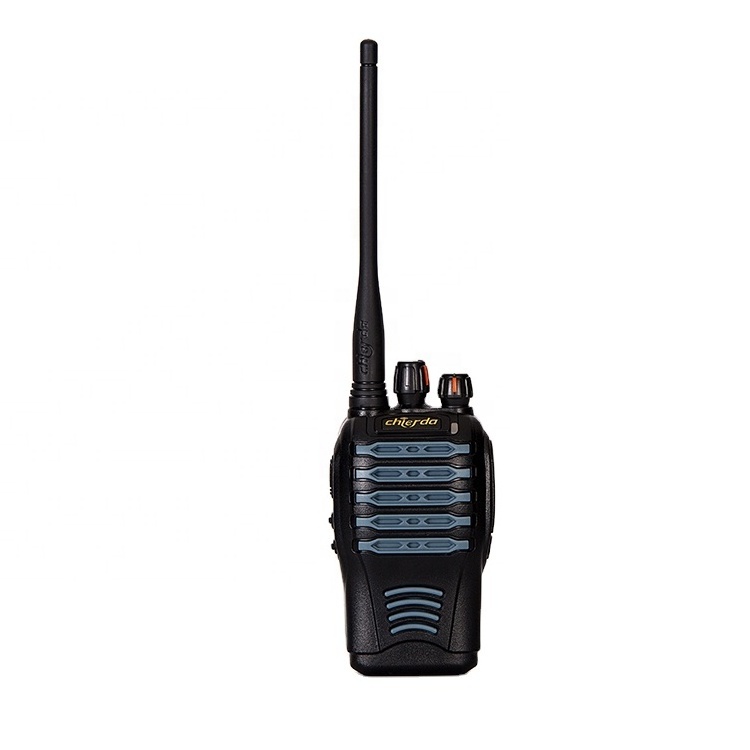

Chierda CD-528 is your good partner when traveling or indoors. CD-528 has IP66 waterproof and dustproof to protect the machine. Can withstand falls and water splashes outdoors or indoors.
The license-free CD-528 walkie-talkie can use the PMR446 European license-free frequency band and has obtained the CE certificate to meet the needs of European license-free frequency users.
A variety of color shells are available to make it easier for users to distinguish their walkie-talkies.
Normal Function and Features
1. IP66 Dust&Waterproof
2. Passed CE
3. Compander/Scan Function
4. Alarm Function/Scrambler Function
5. Busy Channel Lockout
5. Wide/Narrow Band Selection
7. PC Programmable
8. Voice Prompts
9. Monitor
10. CTCSS/DCS
|
Specification
|
|
|
|
Frequency range
|
VHF136-174Mhz ,UHF400-480Mhz
|
|
|
Memory channel
|
16
|
|
|
Rated voltage
|
7.2V DC
|
|
|
Channel spacing
|
5KHZ/10KHZ/12.5KHZ/25KHZ
|
|
|
Frequency sensitivity
|
±5PPM
|
|
|
Size
|
116*61*35mm(without antenna)
|
|
|
Transmitter
|
|
|
|
Output power
|
5W
|
|
|
Current
|
≤1.5A
|
|
|
Modulation distortion
|
<5%
|
|
|
Maximum frequency deviation
|
≤5KHz/ ≤2.5KHZ
|
|
|
CTCSS frequency deviation
|
≤0.75KHz±50Hz
|
|
|
Remnant radiation
|
≤7μVV
|
|
|
Modulation mode
|
16KΩF3E/11KΩF3E
|
|
|
Remnant modulation
|
≤-35dB
|
|
|
Receiver
|
|
|
|
Sensitivity
|
≤0.25μV/ ≤0.3μV
|
|
|
Silent sensitivity
|
≤0.2μV ≤0.25μV
|
|
|
Audio frequency power
|
500MW
|
|
|
Audio distortion
|
<5%
|
|
|
Modulation bandwidth
|
7KHZ
|
|
|
Spurious response
|
≥55dB
|
|
|
Selectivity
|
≥65dB
|
|
|
Inter modulation
|
≥60dB
|
|
---Service industry(Hotel, Restaurant, Supermarket, etc)
---Security, Property Management
---Police, Firefighters, Education, Public Utilities
---Constrution Sites & Transportation
---Warehouse, Ports & Logistic Industry
---Manufacturing Industry, Factory
---Special Environment (such as Humid and Dust place, Forest and so on)
---Police, Firefighters, Education, Public Utilities
---Constrution Sites & Transportation
---Warehouse, Ports & Logistic Industry
---Manufacturing Industry, Factory
---Special Environment (such as Humid and Dust place, Forest and so on)
