Quick Details
-
Weight:
-
1800 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
11KW
-
Dimension(L*W*H):
-
2700*1700*2300mm
-
Sheet Thickness (mm):
-
0.4-1.0mm, 0.4-1.0mm
-
Production Capacity:
-
0-35m/min
-
Type:
-
Pipe Production Line
-
Name:
-
spiral duct making machine
-
Pipe Material:
-
Galvanized/Aluminum/stainless
-
Voltage:
-
380V/415/customized
-
Diameter range:
-
100-1500mm
-
Tube Length:
-
1200-8000mm
-
width:
-
137-138mm
-
Cutting method:
-
Saw blade cutting
-
Certification:
-
ISO CE
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Brand Name:
-
SUNTAY
-
Condition:
-
NEW
-
Weight:
-
1800 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
11KW
-
Dimension(L*W*H):
-
2700*1700*2300mm
-
Sheet Thickness (mm):
-
0.4-1.0mm, 0.4-1.0mm
-
Production Capacity:
-
0-35m/min
-
Type:
-
Pipe Production Line
-
Name:
-
spiral duct making machine
-
Pipe Material:
-
Galvanized/Aluminum/stainless
-
Voltage:
-
380V/415/customized
-
Diameter range:
-
100-1500mm
-
Tube Length:
-
1200-8000mm
-
width:
-
137-138mm
-
Cutting method:
-
Saw blade cutting
-
Certification:
-
ISO CE

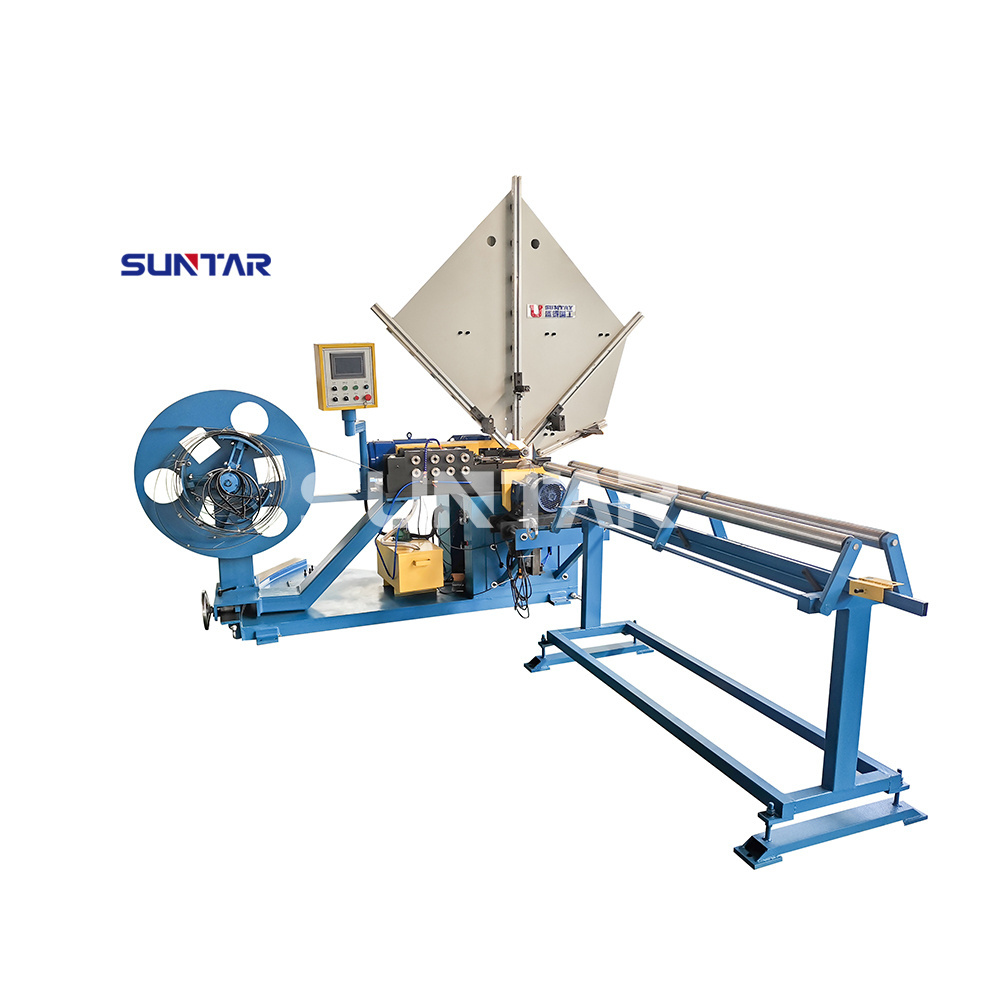

Spiral duct making machine, is the production of spiral duct machine. Spiral duct is made of metal strip material spiral wound into thin-walled tube, circular, no welding, no leakage, no leakage, and more for air supply and bulk material transport, instead of the traditional white iron pipe (that is, hand Bite seam iron pipe). Is a kind of duct, full-mechanism straight tube without hand tapping.
Advantages
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube Machine
Main Technical Parameters
|
Diameter range
|
Φ100-Φ1500mm
|
|
Thickness range
|
Galvanized plate:0.5-1.0mm
|
|
Material width
|
137mm
|
|
Tube length
|
800-1200mm
|
|
Uncoiler
|
Vertical tyfe,maximum load:1200kg
|
|
Sealing&locking
|
Outer surface of the pipe
|
|
Feeding speed
|
0-30m/min,adjustable
|
|
Cutter
|
Sawblade for cutting
|
|
Total weight
|
1800kg
|
|
Equipment sizes
|
2700*1700*2300mm
|
|
Total power
|
9.5kw
|
|
Power supply
|
380V/50HZ/3ph(other power supply optional)
|
|
Control console
|
Touchscreen
|
