- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Drayson
-
Model Number:
-
fiberglass tubes
-
Surface Treatment:
-
Smooth/Gritted/Gel-Coated
-
Material:
-
E Glass Fiber + Resin + ATH Filling
-
Certificate:
-
ISO9001 / CE / SGS / ASTM E-84
-
Size:
-
50x50x5mm etc.
-
Anti-Fire:
-
Yes
-
Anti-Corrosion:
-
Yes
-
Anti-UV:
-
Yes
-
Anti-Aging:
-
Yes
-
After Sale Service:
-
1 Year
Quick Details
-
Application:
-
Construction
-
Technique:
-
Pultruded
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drayson
-
Model Number:
-
fiberglass tubes
-
Surface Treatment:
-
Smooth/Gritted/Gel-Coated
-
Material:
-
E Glass Fiber + Resin + ATH Filling
-
Certificate:
-
ISO9001 / CE / SGS / ASTM E-84
-
Size:
-
50x50x5mm etc.
-
Anti-Fire:
-
Yes
-
Anti-Corrosion:
-
Yes
-
Anti-UV:
-
Yes
-
Anti-Aging:
-
Yes
-
After Sale Service:
-
1 Year

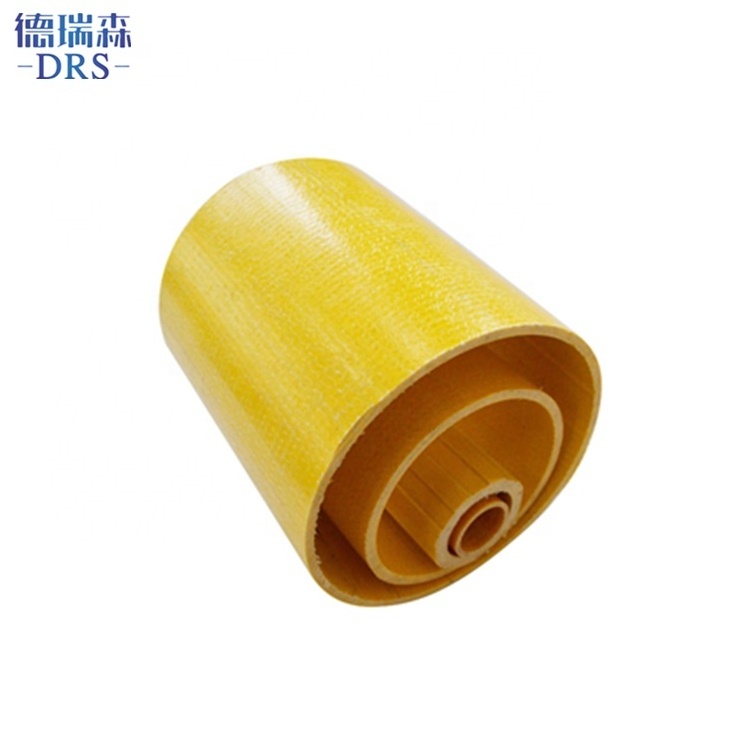

Fiberglass FRP GRP Tube Pipe
|
Parameters |
|
|
|
|||
|
Type
|
Fiberglass FRP GRP Tube Pipe
|
|
|
|||
|
Material
|
ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
|
|
|
|||
|
Size
|
can be customized (pls check detail as below form)
|
|
|
|||
|
Color
|
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
|
|
|
|||
|
Properties |
|
|
|
|||
|
Light Weight / High Strength |
Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength |
|
|
|||
|
Anti-Fire / Safety
|
Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
|
|
|
|||
|
Anti-Corrosion
|
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
|
|
|
|||
|
Anti-skid / slip
|
Different process mode on surface, concave, gritted, increase friction factor.
|
|
|
|||
|
Anti-aging
|
Have more than 20 years effective service life under normal outdoor working condition.
|
|
|
|||
|
Anti-fatigue
|
Moderate flexibility reduces the workers` pressure on legs and waist
|
|
|
|||
|
E
asy maintenance
|
have alternative and bright colors. Non-fading. Easily for clean.
|
|
|
|||
|
Excellent economic benifits
|
Excellent comprehensive economic benefits
|
|
|
|||
|
Item |
Size - Round Tube DxT(mm) |
|
RT25 |
25x3.2 |
|
RT26 |
26x3.0 ,26x4.8 |
|
RT32 |
32x3.2 , 32x5.0 , 32x6.0 |
|
RT38 |
38x3.2 , 38x4.0 , 38x5.0 , 38x6.4 |
|
RT41 |
41x4.5 |
|
RT42 |
42x3.2 , 42x5.0 , 42x6.4 |
|
RT48 |
48x6.4 |
|
RT50 |
50x3.2 , 50x4.0 , 50x5.0 , 50x6.4 |
|
RT64 |
64x3.5 , 64x6.4 |
|
RT75 |
75x4.2 |
|
RT76 |
76x6.4 |
|
RT89 |
89x3.2 , 89x5.0 , 89x6.4 |
|
RT99 |
99x5.0 |
|
RT101 |
101x6.4 |
|
RT114 |
114x3.2 ,114x5.0 ,114x6.4 ,114x9.5 |
|
RT150 |
150x3.2 ,150x5.0 ,150x6.4 ,150x9.5 |
