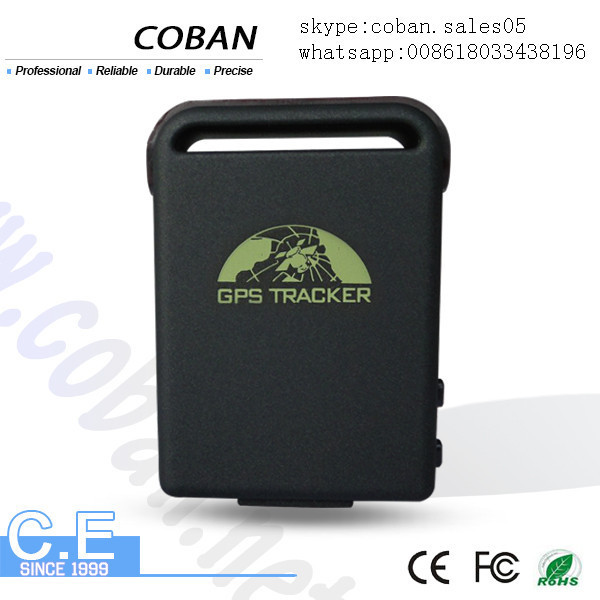

sim card listen voice gps human tracking device with SOS for help made in China gps102

Main Functions:

1. Single Locating

2. Get absolute street address Note: You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.

3. Auto Track

4. Location based service (LBS)

When the tracker device doesn’t received valid GPS signals, tracker will locate by LBS, the messages includes the GPS

coordinates of the last position in SMS mode, but the LAC in message is the current new position, the location can be seen by

input the LAC code in the menu “Manual Track” of web platform www.gpstrackerxy.com, you can also send command

“address+password” to tracker to get the newest absolute address and newest GPS coordinates as well; tracker will

automatically switch to track by location based service in GPRS mode, and actualized on the map of web server with LBS mark.

And there may be some inaccuracy with actual location by LBS tracking; the bias depends on GSM reception.

Note: This feature can be used normally in most areas according to the signal of GSM network. It may not be available in some

areas.

5. Monitor (Voice Surveillance)

The default mode is “track” (Track mode). Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to

“monitor” mode.

6. Storage

Built-in flash 1MB (store about 16,000 positions); external SD card support 2GB at most.

7. Data Logging

8. Data Load

9. Shock sensor alarm

10. Geo-fence

11. Movement alert

12. Overspeed alert

13. SOS alert

14. Low battery alert

15. Sleep Mode

a. Sleep by time

Send "sleep+password+space+time", tracker will reply "sleep time ok" if none of the alarms listed under chapter IV has been

set and no operations, tracker will fall asleep in 5 minutes, LED will be off, calling or SMS can awake the tracker. If these alarms

have been set, tracker will enter sleep by detecting shock sensor. And tracker will sleep by time as default.



b. Sleep by shock sensor

Send "sleep+password+space+shock", tracker will reply "sleep shock ok", it will enter sleep mode after detect no shock, and

LED will be off.

16. State Checking

17. IMEI checking

18. Terminal (local) Time Setting

19. Free PC installation tracking software

20. Micro SD Card Slot

21. GPS drift suppression

The GPS data stop updating if vehicle is not moving and latitude and longitude always keep same, and GPS data updates

automatically when vehicle is moving.

22. Forward the third parties’ message

Send SMS "forward+password+space+third parties phone number" from authorized phone number, tracker will reply "forward

ok", and supports 1 third parties phone numbers at most. For example, set the phone number of the service provider of the

sim card in the tracker, when charge remind message coming in, tracker will forward it to authorized phone number.

23. TCP/UDP switch

24. Configure parameters by USB

Find the USB cable in the package to connect tracker with computer, open the memory of the tracker, find and open the initial

configuration file with notepad, operate according the instructions.

Note: Correct password is need every time you configure the tracker. For detailed instructions, please refer to the “102 USB

configuration user manual” in CD.



25. Less GPRS traffic

Tracker will change to less GPRS traffic mode & sleep by shock sensor mode after parking 5 minutes, GPRS disconnect and

connect again when alarm being triggered or start driving.

26. Setup monitor center number

If monitor center number doesn’t setup, auto track messages will be sent to the cell phone which send this command.



Package



standard accessories:

GPS Tracker x 1

Rechargeable Battery x 2

Power Adapter for Charging x 1

BatteryDock x 1

English User Guide x 1

Extra Back Cover with Magnet x 1

Plastic Carrying Bag x 1

USB cable

Optional accessories

Hardwired car charger

Cigarette lighter car charger

Microsd memory card

Shenzhen Coban Electronics co., Ltd is a private export-oriented enterprise founded in 1999, 100% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, etc. So far, our products have been well marketed in more than 100 countries and regions in the world.



Our company specialized in GPS tracker, car anti-theft alarm system.

1.Customize logo and brand print on the device



2.Customize box



3.Offer firmware modification service



4. Customize design in bulk order
