Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, Other, 400*200*200 mm, 240X112X70mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINMING
-
Voltage:
-
380V,220V,415V
-
Dimension(L*W*H):
-
1850*1880*2240mm
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
1200 kg
-
Mold Period:
-
20-24 Seconds
-
Color:
-
Opitional
-
Vibration Force:
-
40KN
-
Host Machine Power:
-
14KW
-
Block Type:
-
Hollow, Paver, Porous ,Solid, Curbstone Block etc
-
Raw Material:
-
Sand, Cement, Cinder, Stone etc
-
Water consumption:
-
10-15 T/day
-
Vibration Model:
-
Moulding Vibration
-
Standard Hollow Block:
-
400*200*200mm
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Solid Block Making Machine, Hourdis Block Making Machine
-
Brick Raw Material:
-
Cement,Concrete,Fly ash,Mud and Stone etc
-
Production Capacity (Pieces/8 hours):
-
3200pcs/8hour, 6000-7200pcs/8hour, 7500-9000pcs/8hour, 27000-32400pcs/8hour, 21000-25200pcs/8hour, 18000-21600pcs/8hour, 12000-14400pcs/8hour, 9000-10800pcs/8hour
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, Other, 400*200*200 mm, 240X112X70mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINMING
-
Voltage:
-
380V,220V,415V
-
Dimension(L*W*H):
-
1850*1880*2240mm
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
1200 kg
-
Mold Period:
-
20-24 Seconds
-
Color:
-
Opitional
-
Vibration Force:
-
40KN
-
Host Machine Power:
-
14KW
-
Block Type:
-
Hollow, Paver, Porous ,Solid, Curbstone Block etc
-
Raw Material:
-
Sand, Cement, Cinder, Stone etc
-
Water consumption:
-
10-15 T/day
-
Vibration Model:
-
Moulding Vibration
-
Standard Hollow Block:
-
400*200*200mm

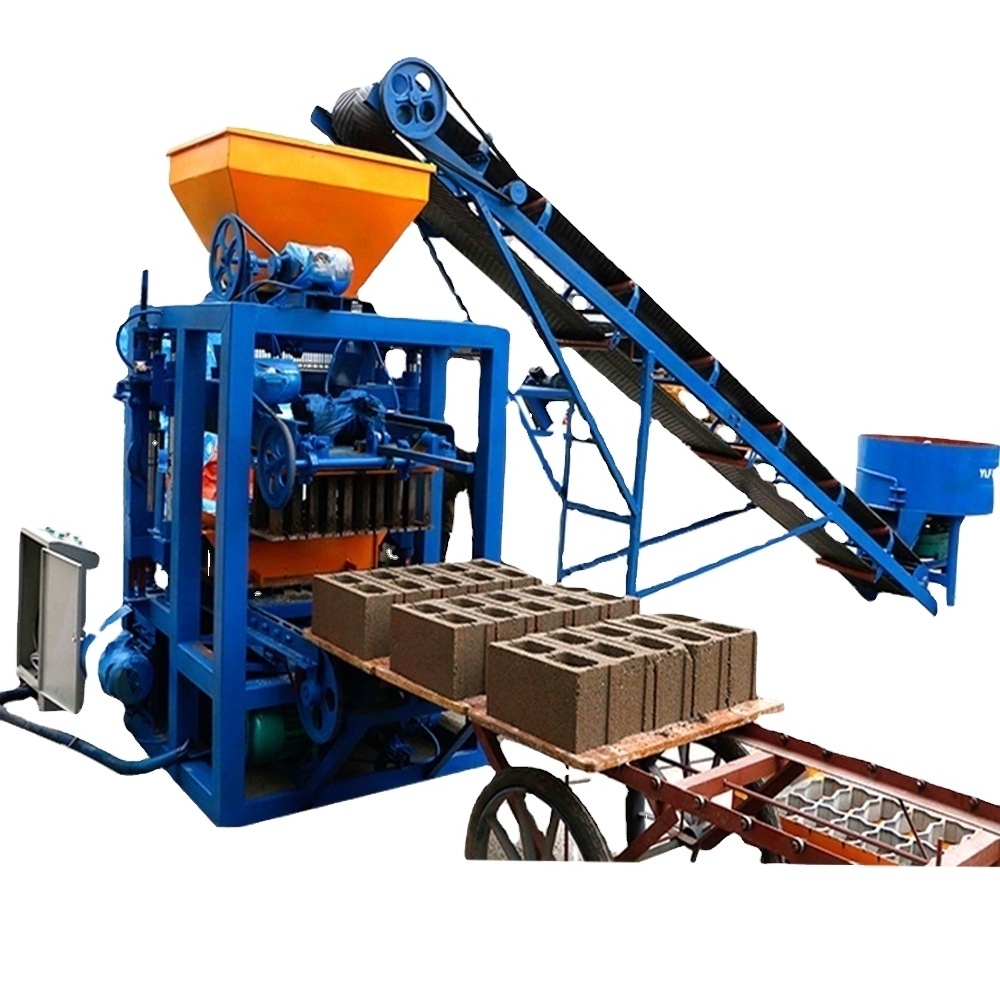

1.QT4-24 block machine is one of our
newly designed bloc
k making machine. With less power.
2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With
easy operation and high productivity
, when producing hollow blocks, it has an advantage over the large
hydraulic
block machines.
3.It uses Mode 350 speed reducer to raise、and lower the mold, so it greatly
increases the usage life
of the speed reducer.
4.It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are
comparable
to the large equipment.
|
Dimension of host machine
|
1850*1880*2240mm
|
|
Mould Period
|
20-24s
|
|
Host machine power
|
14KW
|
|
Workshop Area
|
160m³
|
