Quick Details
-
Brand Name:
-
ZYUMD
-
Product name:
-

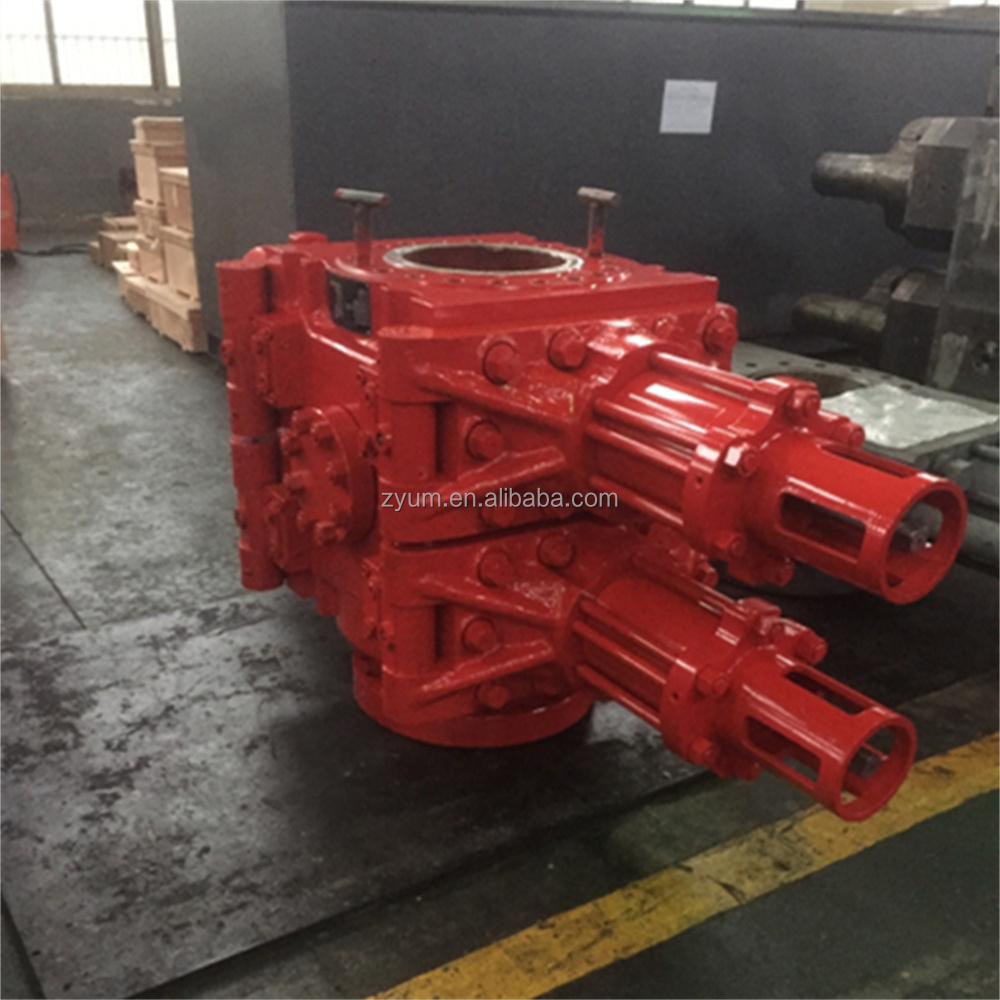

Ram BOP
-
Application:
-
Oilfield Drilling
-
MOQ:
-
1 Set
-
Standard:
-
API
-
Key words:
-
wellhead tools
-
Working Pressure:
-
2000Psi~20.000Psi
-
Nominal Bore Diameter:
-
71/16"~30"
-
Recommended Working Pressure:
-
1200Psi~1500Psi
-
Locking Method:
-
Hydraulic or Manual Locking
-
Specification of Hydraulic Oil Way:
-
1"NPT
Quick Details
-
Weight (KG):
-
1000
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ZYUMD
-
Product name:
-
Ram BOP
-
Application:
-
Oilfield Drilling
-
MOQ:
-
1 Set
-
Standard:
-
API
-
Key words:
-
wellhead tools
-
Working Pressure:
-
2000Psi~20.000Psi
-
Nominal Bore Diameter:
-
71/16"~30"
-
Recommended Working Pressure:
-
1200Psi~1500Psi
-
Locking Method:
-
Hydraulic or Manual Locking
-
Specification of Hydraulic Oil Way:
-
1"NPT
Products Description
We supply a full line of land drilling rigs: skid-mounted, truck-mounted and trailer-mounted. Our skid-mounted drilling rigs are ranging from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m).
|
Type
Technical Spec. |
ZJ30
|
ZJ40
|
ZJ50
|
ZJ370
|
ZJ90
|
|
Drilling Depth(M)
|
3000
|
4000
|
5000
|
7000
|
9000
|
|
Max. hook load (KN)
|
1700
|
2250
|
3150
|
4500
|
6750
|
|
Power of Drawworks (HP)
|
750
|
1000
|
1500
|
2000
|
3000
|
|
Drive & Transmission Mode
|
Mechanical
(belt/chain) |
Mechanical/
Electric(AC/DC)/ Combined |
Mechanical/
Electric(AC/DC)/ Combined |
Mechanical/
Electric(AC/DC)/ Combined |
Electric
(AC/DC) |
|
Mast Height(M)
|
36/38
|
42
|
45
|
45/48
|
46/50
|
|
Substructure Height (M)
|
5
|
6.7
|
7.5
|
9
|
12
|
|
Rotary Table
|
ZP275
|
ZP275
|
ZP375
|
ZP375
|
ZP375
|
|
Mud Pump
|
F/3NB-1000
|
F/3NB-1300
|
F/3NB-1600
|
F/3NB-1600
|
F/3NB-2200L
|
|
Power of Mud Pump(HP/KW)
|
1000/735
|
1300/956
|
1600/1180
|
1600/1180
|
2200/1640
|
|
Mud Handing Capacity(m3)
|
185
|
240
|
300
|
360
|
360
|
|
Rope Diameter(mm)
|
29/32
|
32
|
35
|
38
|
45
|
|
Wireline System
|
5x6
|
5x6
|
6x7
|
6x7
|
7x8
|
|
Manifolds Diameter(mm)xPre ssure(MPa)
|
∮103x35
|
∮103x40
|
∮103x70
|
∮103x70
|
∮140x80
|
All its power system, drawworks, mast, traveling system and driving mechanism are all mounted on a self-propelled chassis for high efficient mobilization. BEYOND can provide mobile drilling rigs with drilling depth from 1000m to 4000m. The mobile rigs feature as heavy working load, reliable performance, good cross-country capability, convenient and lower cost mobilization.
