Quick Details
-
Size:
-
12,620*2,720*1,850mm
-
Place of Origin:
-
Shandong, China
-
Function:
-
1*20/2*20/1*40 container shultting within container terminal
-
Overall dimension:
-
12,620*2,720*1,850mm
-
Rear tractor clearance radius:
-
2,130mm
-
Tare weight:
-
9,000kg
-
Payload:
-
65ton
-
Side beam:
-
16# U shaped steel
-
Front and rear guide plate:
-
Length 1850mm
-
Side guide plate:
-
Length 500mm
-
Landing leg:
-
heavy duty 28ton landing leg
-
Leaf spring:
-
90(W)mm*13(Thick)mm*10 Layer
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
9,000kg
-
Brand Name:
-
EAST
-
Size:
-
12,620*2,720*1,850mm
-
Place of Origin:
-
Shandong, China
-
Function:
-
1*20/2*20/1*40 container shultting within container terminal
-
Overall dimension:
-
12,620*2,720*1,850mm
-
Rear tractor clearance radius:
-
2,130mm
-
Tare weight:
-
9,000kg
-
Payload:
-
65ton
-
Side beam:
-
16# U shaped steel
-
Front and rear guide plate:
-
Length 1850mm
-
Side guide plate:
-
Length 500mm
-
Landing leg:
-
heavy duty 28ton landing leg
-
Leaf spring:
-
90(W)mm*13(Thick)mm*10 Layer
Products Description
|
Type
|

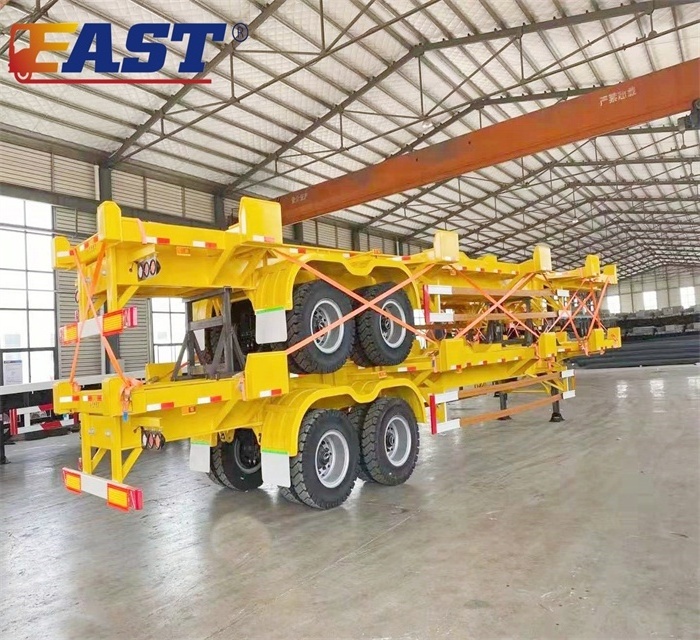

EAST manufacture terminal straight frame trailer
|
|
Function
|
1*20/2*20/1*40 container shultting within container terminal
|
|
Overall dimension
|
12,620*2,720*1,850mm
|
|
Rear tractor clearance radius
|
2,130mm
|
|
Tare weight
|
9,000kg
|
|
Payload
|
65ton
|
|
Main beam
|
Beam height: 500mm
|
|
|
Upper plate: 16mm
|
|
|
Middle plate: 10mm
|
|
|
Down plate: 18mm
|
|
Side beam
|
16# U shaped steel
|
|
Front and rear guide plate
|
Length 1850mm
|
|
Side guide plate
|
Length 500mm
|
|
Landing leg
|
heavy duty 28ton landing leg
|
|
Suspension
|
Mechanical Spring or Air Suspension System
|
|
Leaf spring
|
90(W)mm*13(Thick)mm*10 Layer
|
|
Axle
|
13T/16T/20T BPW or FUWA or EAST
|
|
Tire
|
12R22.5, 11.00R20, 12.00R20, 315/80R22.5
|
|
Rim
|
9.75, 13pcs
|
|
Brake Val
|
WABCO
|
|
Brake Chamber
|
4 Double, 2 Single
|
|
Spare Tire Carrier
|
1 pcs
|
|
Tool box
|
None
|
|
Electrical system
|
24V
|
|
|
Receptacle: 7 way
|
|
|
Light type: LED
|
|
Colour and marking
|
Comply with the customer’s request.
|
