Quick Details
-
Frequency:
-
860Mhz~960MHz
-
Color:
-
White
-
Type:
-
Long Range uhf RFID Reader
-
Card type:
-
UHF card
-
Distance:
-
Read range can up to 15meters
-
Support:
-
ISO18000-6B, ISO18000-6C(EPC C1G2)
-
Setting:
-
parking access
-
Size:
-
450x450x120mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joneytech
-
Interface:
-
RS232/WG26/RS485/ RJ45( optional)
-
Frequency:
-
860Mhz~960MHz
-
Color:
-
White
-
Type:
-
Long Range uhf RFID Reader
-
Card type:
-
UHF card
-
Distance:
-
Read range can up to 15meters
-
Support:
-
ISO18000-6B, ISO18000-6C(EPC C1G2)
-
Setting:
-
parking access
-
Size:
-
450x450x120mm

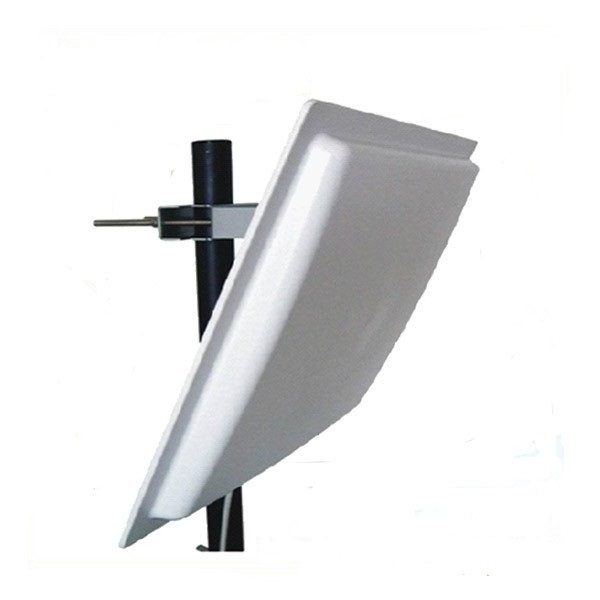

Parking lot 15m Long Range UHF RFID Reader
15m Parking Lot reader for long range uhf rfid cards
JYA-LR0703 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 860~960MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 12dbi antenna optional with effect distance up to 8m-15m * ;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
16 |
V |
|
Operating Temp. |
T OPR |
-10~+55 |
°C |
|
Storage Temp. |
T STR |
-20~+75 |
°C |
l Electrical and Mechanical Specification
Under T A =25°C,VCC=+9V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
8 |
9 |
12 |
V |
|
Current Dissipation |
I C |
|
350 |
650 |
mA |
|
Frequency |
F REQ |
902 |
|
928 |
MHz |
