- Product Details
- {{item.text}}
Quick Details
-
Theoretical Shot Volume(cm³):
-
64.6 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
58 g
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
265mm
-
Weight (KG):
-
450 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
190 mm
-
Model Number:
-
WL-JS160
-
Brand Name:
-
Crown
-
Power (kW):
-
2.2 kW
-
Screw Diameter:
-
Dia 26/ 28mm
-
Theoretical Injection Volume:
-
55.7 /64.6cm3
-
Injection Weight(PS):
-
50(1.7) 58(2.0)
-
Injection Rate:
-
34.6/40 cm3/sec
-
Max.Injection Pressure:
-
1183 1019kg/cm2
-
Screw Speed Rotation:
-
0~215 r.p.m
-
Nozzle Out From Platens:
-
105 mm
-
Clamping Force:
-
15tons
-
Opening Stroke:
-
190mm
-
Min.Mold Thickness:
-
100/25 mm
-
Marketing Type:
-
New Product 2021
Quick Details
-
Mold Height(mm):
-
25 - 100 mm
-
Ejector Stroke(mm):
-
1000 mm
-
Ejector Force(kN):
-
1.3 kN
-
Theoretical Shot Volume(cm³):
-
64.6 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
58 g
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
265mm
-
Weight (KG):
-
450 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
190 mm
-
Model Number:
-
WL-JS160
-
Brand Name:
-
Crown
-
Power (kW):
-
2.2 kW
-
Screw Diameter:
-
Dia 26/ 28mm
-
Theoretical Injection Volume:
-
55.7 /64.6cm3
-
Injection Weight(PS):
-
50(1.7) 58(2.0)
-
Injection Rate:
-
34.6/40 cm3/sec
-
Max.Injection Pressure:
-
1183 1019kg/cm2
-
Screw Speed Rotation:
-
0~215 r.p.m
-
Nozzle Out From Platens:
-
105 mm
-
Clamping Force:
-
15tons
-
Opening Stroke:
-
190mm
-
Min.Mold Thickness:
-
100/25 mm
-
Marketing Type:
-
New Product 2021
Specification
|
Screw Diameter
|
Φ26/ Φ28mm
|
|
Theoretical Injection Volume
|
55.7 /64.6cm3
|
|
Injection Weight(PS)
|
50(1.7) 58(2.0)
|
|
Injection Rate
|
34.6/40 cm3/sec
|
|
Max.Injection Pressure
|
1183 1019kg/cm2
|
|
Screw Speed Rotation
|
0~215 r.p.m
|
|
Nozzle Out From Platens
|
105 mm
|
|
Warranty
|
1 Year
|
|
Clamping Force
|
15tons
|
|
Opening Stroke
|
190mm
|
|
Min.Mold Thickness
|
100/25 mm
|
|
Max.Open daylight
|
290/215 mm
|
|
Distance Between Tie Bars
|
265mm
|
|
Platen Size
|
450*280 mm
|
|
Ejector Distance
|
35mm
|
|
Ejector Force
|
1.3tons
|
|
Max. Hydaulic Pressure
|
140 kg/cm2
|
|
Oil Tank Capacity
|
130L
|
|
Pump Heating Power
|
2.2(3HP) kW(HP)
|
|
Heater Power
|
1.8KW
|
|
Machine Dimension
|
1.3*0.92*2.06 L*W*H mm
|
|
Machine Weight
|
0.45tons
|

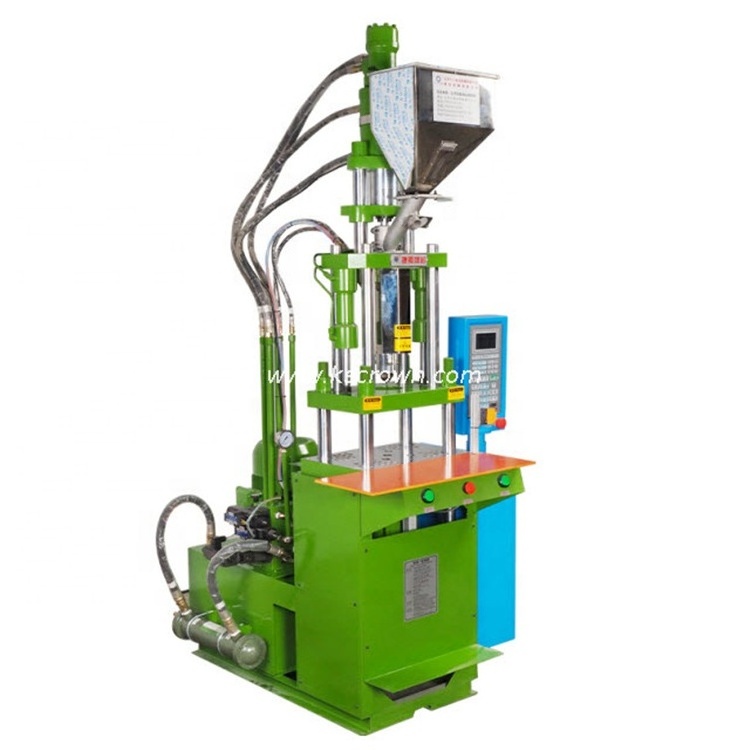

Product Description
Applicable rubber compound: ABS/PVC/PA/PP/PC/POM/PBT fluorocarbon and other heavy engineering plastic injection molding.
* Straight screw ejected assembly
* Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to conectioned
* Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipled with an ejector for finished products
* Low-pressure closed die assembly can protect the safety of die
* Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to conectioned
* Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipled with an ejector for finished products
* Low-pressure closed die assembly can protect the safety of die
Packing & Delivery
Foam+ export standard package
