Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
3.30*1.50*1.45m
-
Weight:
-
1200 KG
-
Certification:
-
CE
-
Max. Print Area:
-
300*400mm
-
Marketing Type:
-
Ordinary Product
-
Application:
-
Ribbon, tape
-
Product name:
-

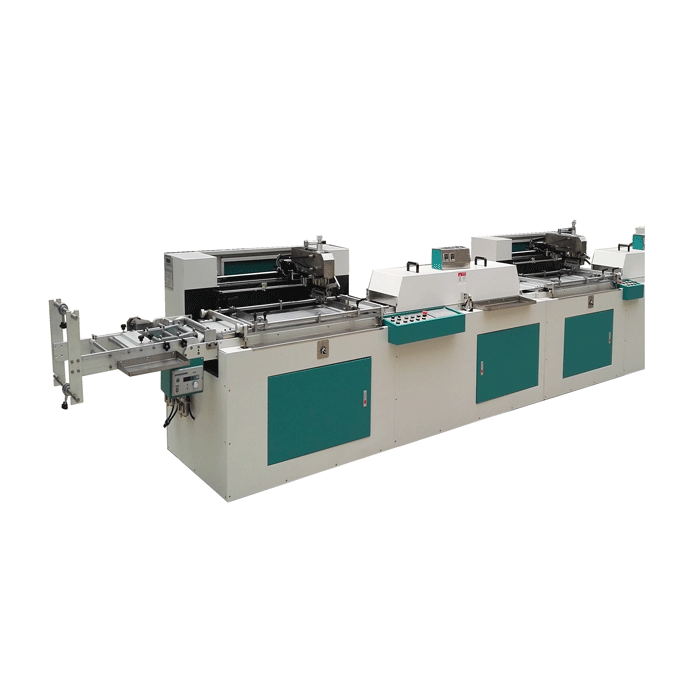

Ribbon screen printing machine
-
Printing color:
-
3
-
Operation:
-
PLC
-
Ink drying:
-
IR
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
380V/50HZ 3 Phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
3.30*1.50*1.45m
-
Weight:
-
1200 KG
-
Certification:
-
CE
-
Max. Print Area:
-
300*400mm
-
Marketing Type:
-
Ordinary Product
-
Application:
-
Ribbon, tape
-
Product name:
-
Ribbon screen printing machine
-
Printing color:
-
3
-
Operation:
-
PLC
-
Ink drying:
-
IR
Samples-Hat belts
The printing of ribbon is a huge market, and many different printing processes are competing for this market, such as silk screen printing, heat transfer machines, bronzing, and dyeing. The silk screen is undoubtedly the printing method with the highest market share. The most prominent feature of the ribbon screen printing machine is the workbench with a timing belt, that is, during the printing process, the ribbon will be pasted on the workbench and move synchronously with the workbench. This structure makes it more suitable for flexible Printing of fabrics and even more elastic elastic bands. Screen printers with timing belts are also more suitable for multi-color overprinting, because they will not be deformed during the printing process. After the ribbon is printed, there are also post-processing problems, such as the drying of the ink and the cutting of the length, which require special procedures to complete.
Machine description
|
Feeding device |
Roll feeding ,automatically feeding system |
|
Working table |
Vacuum table ,PVC transmission working table |
|
Actions |
Ribbon driven by Servi-Motor to printing position |
|
Max Printing size |
300*600mm |
|
Max Printing Speed |
15M/Min |
| Overprint precision | 0.03mm |
| Total wattage | 7KW |
|
Rubber squeegee controlling |
High precision lead rail |
|
Ink drying device |
IR Dying system |
|
Discharging |
Automatically ribbon collecting device |
|
SZD-303RA Full automatically Ribbon screen printing machine// Usage and characters
|
|
|
Guide |
|
|
Application fields |
|
|
SZD-303RA Full automatically Ribbon screen printing machine // Parameter
|
|
|
Technical parameters |
|
|
Works supply |
|
|
Package list |
|
|
H.S.Code |
8443198000 |
|
Certificate |
CE |
|
SZD-303RA Full automatically Ribbon screen printing machine // Advantage
|
|
|
Function |
|
|
Main configuration |
|
Catalogue
Machine details
1. What is a screen printer ?
Screen printing machine uses rubber squeegee to apply pressure on the ink on the screen plate. the pattern is transferred onto the product through the hollow area. It is the most widely used special printing equipment in the industrial field. It is also the most compatible printing equipment for products materials.
The UV screen printing process is also a relatively common silk printing process. When using UV inks instead of ordinary dry inks, you need to choose a UV curing machine or LEDUV curing machine to achieve this process.
2 . The difference between the Vacuum table screen printer and T -shaped screen printer
The products involved in the plane screen printer are generally divided into two types. One is relatively thin and thinner products, such as paper, film, and general workbenches that need to be inhaled. They will be adsorbed when printing , for a product with a certain shape and quality. You can choose a T -shaped screen printer, which usually makes a fixture to fix. Automatic silk printing opportunities connect to automatic feed mechanisms and unloading mechanisms to achieve the automation of screen printing.
3. Shuttle screen printer and Turntable screen printer
The limitations of the single workplace screen printer are very obvious, it is necessary to wait for one product to complete the screen printing before the other product can be placed. The production efficiency is affected. Like the pad printer, the screen printer can also install the shuttle workbench and the turntable workbench. There are two structures, front and rear movements and left and right movement, which are generally large -sized; turntable screen printers are relatively popular screen printers. During the silk seal period, stations continued to rotate, saving working time, and improved production efficiency. The turntable screen printer is generally suitable for products with smaller size.
4. Screen printing machine operating system
The ordinary screen printing machine adopts the microcomputer control system to carry on the control, the high-end screen printing machine uses the PLC to carry on the control, specially the servo control system screen printing machine or the automatic screen printing machine, uses the PLC control system quite commonly because it need more parameter setting during screen printing.
5. How to evaluate the quality of the screen printer
Screen Printing machine technology content is low, more and more enterprises began to produce and sell screen printing machines, screen printing machines of uneven quality, how to evaluate the quality of screen printing machine is essential. As the majority of brand-name screen printing machine is not sold through the network, so, through Alibaba sales of screen printing machines are not high end screen printing machine.
1) Design of the factory means: a special design department of the enterprise quality is more reliable. China has 70% of the screen printing machine manufacturing enterprises and no special design department, the development of new products on-site assembly by the basic, which is extremely adverse to the standardization of production machinery;
2) Processing means: CNC processing costs are higher, but the parts manufactured high precision; visit the factory must inspect whether the factory has CNC machining capacity;
3) Materials Selection: Material selection is very important. Now fierce competition, the vast majority of domestic factories in the selection of the above efforts, only the brand enterprises are willing to insist on the selection criteria above;
7. What is screen plate of screen printer?
