Quick Details
-
Brand Name:
-
DEEPVISION
-
Name:
-
Visual Inspection Machine
-
Color:
-
Grey
-
Material:
-
Titanium Alloy
-
Application:
-
Industrial
-
Function:
-
External Appearance
-
Weight:
-
300kg
-
Usage:
-
Testing Instrument
-
Standard:
-
International Standard
-
Type:
-
Automatic
-
Display:
-
Computer Display
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DEEPVISION
-
Name:
-
Visual Inspection Machine
-
Color:
-
Grey
-
Material:
-
Titanium Alloy
-
Application:
-
Industrial
-
Function:
-
External Appearance
-
Weight:
-
300kg
-
Usage:
-
Testing Instrument
-
Standard:
-
International Standard
-
Type:
-
Automatic
-
Display:
-
Computer Display
By utilizing edge computing, multi-light field fusion, artificial intelligence algorithm and other technologies, and providing customized transport units, 360-degree full inspection of the surface of rolling elements can be realized, and supporting devices such as feeding machine, cleaning machine, oiling machine, blanking machine can be also provided.
|
Product name
|

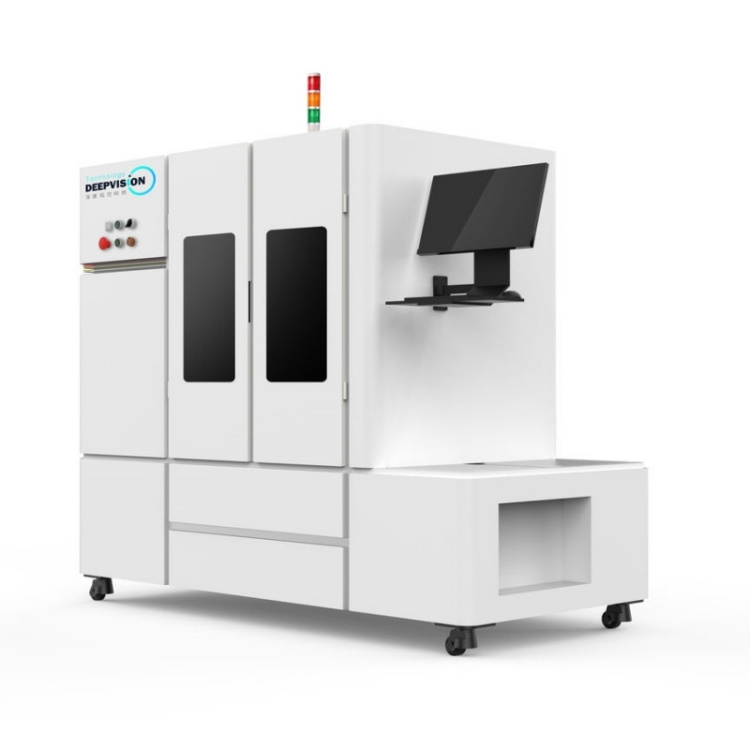

Roller Appearance Inspection Machine
|
|
Detectable product types
|
CR tr Sr, railway rollers, wind power rollers, rollers, piston pins, piston rings, plunger pins, rocker arm roller rings, etc
|
|
Detectable defect types
|
Cracks, missing superfinishing, poor superfinishing, bruises, abrasions, scratches, cushion damage in spiral pits, chamfer defects, burrs, rust, mixing, cutting
|
|
Detectable size range
|
Small bga&bgb:5-9mm / Medium bga&bgb:8-13mm
Medium bga&bgb:12-18mm / Railway roller equipment: 18-25
Large roller, wind power roller equipment: 26-105
|
|
Product size
|
1250X1000X1850mm
|
|
Product power
|
220V，1200W
|
|
Product noise
|
＜80dB(A)
|
|
Air flow
|
Pressure 0.4MPA~0.7MPA，＜40L/Min
|
|
Processing customization
|
Customized according to customer requirements
|
|
Detectable beat
|
Up to 200pcs/min
|
|
Detection accuracy
|
Up to 0.5um
|
|
Recognition rate
|
One-time pass rate of conforming products can reach 99%, False rate reach up to 1%.
|
|
Software platform
|
Deepvision software platform
|
|
Detection display
|
Real time display of detection status
|
|
Support functions
|
Remote technical support function
|
|
Capacity count
|
Count qualified products and NG products in real time
|
|
Nondestructive detection
|
No damage to the product
|
