Quick Details
-
Model Number:
-
JL-D-A1
-
Power Consumption:
-
power saving, 2.4w-13.5w
-
product name:
-
Led Illuminated Pictures Frame Slim Magnetic Advertising Led Light Box
-
thickness:
-
19mm
-
width of black frame:
-
25mm
-
power supply:
-
DC12V
-
luminosity:
-
standard A3 can reach 3100-3300lx
-
light source:
-
LED SMD2835, super bright
-
plug:
-
Eur/BS/US/Australia plug,other plug is available
-
Certificate:
-
CE
-
Size:
-
A4 A3 A2 A1 A0
-
item:
-
Magnetic Advertising Light Box
Quick Details
-
Shape:
-
rectangle
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JL
-
Model Number:
-
JL-D-A1
-
Power Consumption:
-
power saving, 2.4w-13.5w
-
product name:
-
Led Illuminated Pictures Frame Slim Magnetic Advertising Led Light Box
-
thickness:
-
19mm
-
width of black frame:
-
25mm
-
power supply:
-
DC12V
-
luminosity:
-
standard A3 can reach 3100-3300lx
-
light source:
-
LED SMD2835, super bright
-
plug:
-
Eur/BS/US/Australia plug,other plug is available
-
Certificate:
-
CE
-
Size:
-
A4 A3 A2 A1 A0
-
item:
-
Magnetic Advertising Light Box
Led Illuminated Pictures Frame Slim Magnetic Advertising Led Light Box
Features of Magnetic Advertising Light Box
Installation
Detail of Magnetic Advertising Light Box

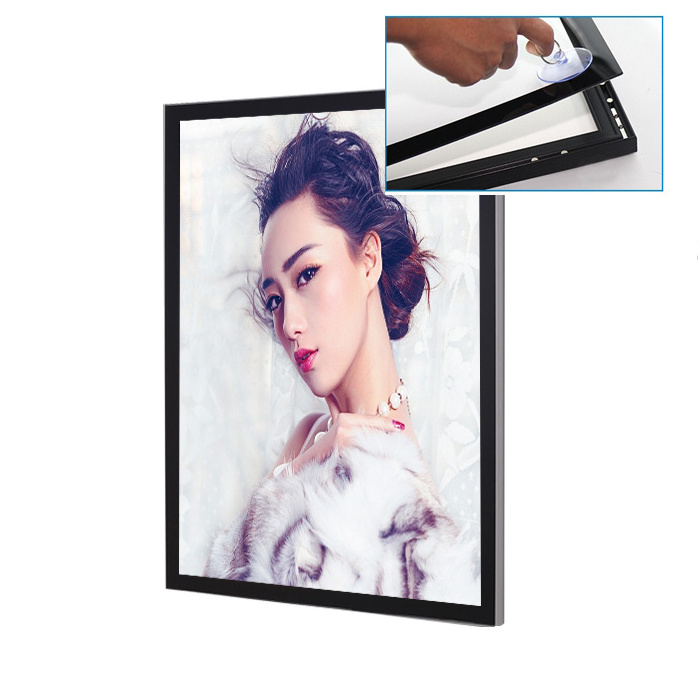

High Quality Acrylic front panel with straps on sides to keep and the change the graphic firmly and easily .
Application show
Exploded view
Accessories
We have a variety of adapters, the voltage suitable for each country
Quality mounting accessories
Product description
It's a more worthy alternative than traditonally snap frame.
This JL magnetic light box uses the super bright LED and edge lit technology to make backlighting light box.
The light box is very low consumption and friendly-environment.
Standard Sizes for reference ( S ize can be custom ized )
| Model |
Size |
Specification(mm) |
Thickness (mm) |
Light source |
Power (W) |
Power supplier | Note | ||
| Outer Size | Graphic size | View Size | |||||||
| JL-D-A1 | A4 |
253 x 340 |
210 x 297 |
192 x 279 |
19 |
LED |
3.6W |
DC12V |
Hinge system |
|
A3 |
340 x 463 |
297 x 420 |
279 x 402 |
19 |
LED |
7.2W |
DC12V |
Hinge system |
|
|
A2 |
463 x 637 |
420 x 594 |
402 x 576 |
19 |
LED |
14.4W |
DC12V |
Hinge system |
|
|
A1 |
637 x 884 |
594 x 841 |
576 x 823 |
19 |
LED |
20W |
DC12V |
Hinge system |
|
|
A0 |
884 x 1232 |
841 x 1189 |
823 x 1171 |
19 |
LED |
28.5W |
DC12V |
Hinge system |
|
Detailed information:
|
Product name |
Led Illuminated Pictures Frame Slim Magnetic Advertising Led Light Box |
| Material | aluminum frame, light guide plate,LED lights,etc. |
|
Thickness |
Single side :1 9 mm |
|
Frame color |
Black ,other colors are available |
|
Size |
A4~A 0 , or custom size is available |
|
Features |
Magnetic design ,front panel With straps on each sides to make it easily to change and keep the graphic |
|
LGP |
professional silk print technology,applied guide light technology, high brightness, and the light in whole surfaces is very evenly and soft, no color change |
|
Light Source |
high Quality and high brightness 2835SMD LED,low attenuation, long lifespan of above 80,000hours, lower power consumption, energy saving, 80% are saved |
|
Power supplier |
the working power is DC12V,more safe in application , power supply with Certificate. |
|
Installation |
P re-drilled hole or hook for wall mounted |
|
Accessorie |
be fixed with special hanging kits,which are convenient to mount and looked elegant |
|
Packing |
each will be packed individually, and several pieces will be packed in one master carton. angles on the master carton protected by hardboard. |
|
Item |
Magnetic Advertising Light Box |
Junlong Light box advantage
1.Extremely thin: LGP(light guide panel) technology makes the light box very slim, thickness is only 8-30mm.
2.High brightness, very steady: highest level A acrylic panel and self-developed silk print ink makes the light box has super brightness which is 30% brighter than other light box.Uniform and soft light, not easy to get yellowing, makes the graphic looked very natural and real.
3.Power saving: we use imported LED SMD2835 strips as light source, it makes the light box has very low attenuation which is less than 10% in the first 8,000hrs. Long lifespan which reaches 100,000hrs. More than 75% power can be saved compare to traditional light box.
4.Strict producing process: frames connect perfectly, seam joint between frames is less than 0.2mm, screws can not be seen when opening the front cover, it’s very beautiful and elegant.
5.Easy to change poster: magnetic design or snap frame design, it’s very convenient to change poster.
6.Frame color: frame color can be customized according to customer’s request.
7.Power adapter: DC12V certificated power supplier, safe and reliable.
8.Certification: Passed CE certification, some of the products have obtained the patents.
9.Safe packing for export: each product packed individually with K+A paper box (polyethylene bag or bubble bag+4pcs foam protecting angel), several units pack into one master carton with cardboard which surrounds all sides, very reliable for long-distance transport. Wooden crate packing can be customized.
Applications:
Its Widely used in airport,station,commercial shop,shopping mall, fast-food restaurant menu , movie house and public places, etc.
Service:
1
.
Customers
’
designs are welcomed.
2
.
Installing instructions, customers' sizes and colors are available.
3
.
Posters with customers' digital files can be printed and installed into light boxes.
Installation exploded view
