Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIP
-
Voltage:
-
380V/220V
-
Weight (KG):
-
1500
-
Application:
-
Stone Soft-metal Cnc Router
-
Keywords:
-
Router Cnc China
-
Working area:
-
1300*2500mm
-
Spindle:
-
Water Cooling Spindle
-
Motor:
-
Stepper or servo motors optional
-
Inverter:
-
Best or Fuling Inverter
-
Guide rail:
-
HIWIN Linear Guide Rail
-
Table:
-
Steel welded T-slot Table
-
Weight:
-
1500kg
-
After-sales Service Provided:
-
24 Hours Online Service
Quick Details
-
Working Table Size(mm):
-
1300x2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIP
-
Voltage:
-
380V/220V
-
Weight (KG):
-
1500
-
Application:
-
Stone Soft-metal Cnc Router
-
Keywords:
-
Router Cnc China
-
Working area:
-
1300*2500mm
-
Spindle:
-
Water Cooling Spindle
-
Motor:
-
Stepper or servo motors optional
-
Inverter:
-
Best or Fuling Inverter
-
Guide rail:
-
HIWIN Linear Guide Rail
-
Table:
-
Steel welded T-slot Table
-
Weight:
-
1500kg
-
After-sales Service Provided:
-
24 Hours Online Service
Product Description

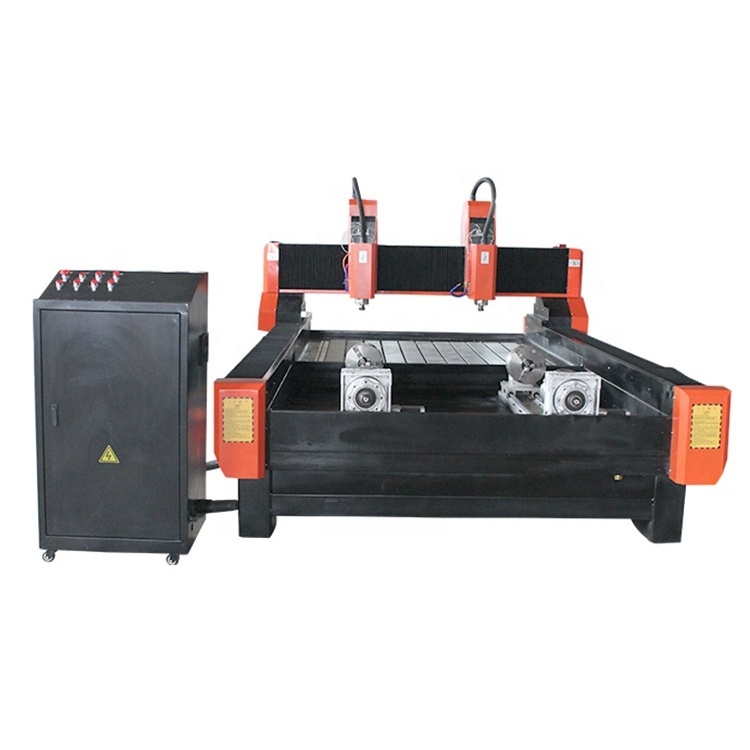

Dual heads spindle marble granite stone cnc router
Double head double rotary axis heavy stone engraving machine is suitable for all kinds of stone for carving, hollowing, lettering, cutting, three-dimensional three-dimensional round carving and other craft processing.
Machine Detail
Water-cooled spindle
The advantage of water-cooled spindle is that due to the use of circulating heat dissipation, the internal temperature of the spindle is more stable than that of the air-cooled spindle, so that the processing is more stable and accurate, the heat dissipation effect is good, and the noise is low.
Aluminum T-slot
The use of Vacuum table to ensure the processing of the plate stability, compared to the mechanical clamping, plate will not be damaged.
Inverter and drives
The fuling inverter has stable performance, high efficiency and energy saving, and has superb overload capacity. Leadshine
drives are simple to operate, durable and efficient.
High strength welded bed
U-shaped bed, good machine stability and high precision. Adopt cast iron bed to ensure that the machine will not be deformed during operation.
HIWIN Linear Guide Rail And S lider
HIWIN square guide rail, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
Helical rack and pinion
The rack and pinion drive system transmits high power with high efficiency and precision, high reliability, high load capacity, unlimited splicing in length, and smooth operation.
Recommend Products
Specification
|
Product name
|
Dual heads spindle marble granite stone cnc router
|
|
Number of Axes
|
4
|
|
X,Y working area
|
1300*2500mm
|
|
X,Y Structure
|
Rack and pinion; Taiwan HIWIN guide rail
|
|
Z Structure
|
Ball screw ; Taiwan HIWIN guide rail
|
|
Spindle
|
Water cooling spindle
|
|
Voltage
|
220 V/380 V 50hz/60hz
|
|
Lathe bed frame
|
Steel square tubes
|
|
Operating system
|
DSP or March3 control system or NC studio
|
|
Motor
|
Stepper or servo motors optional
|
|
Driver
|
Leadshine
|
|
Inverter
|
Best or Fuling Inverter
|
|
Linear guide
|
HIWIN Linear Guide Rail
|
|
Working table
|
T-slot Aluminum Table
|
|
Application
|
Stone soft-mental processing
|
|
Warranty of core components
|
1 Year
|
|
Color or Logo
|
Customers Needing
|
Samples of the machine
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
