Quick Details
-
Product name:
-

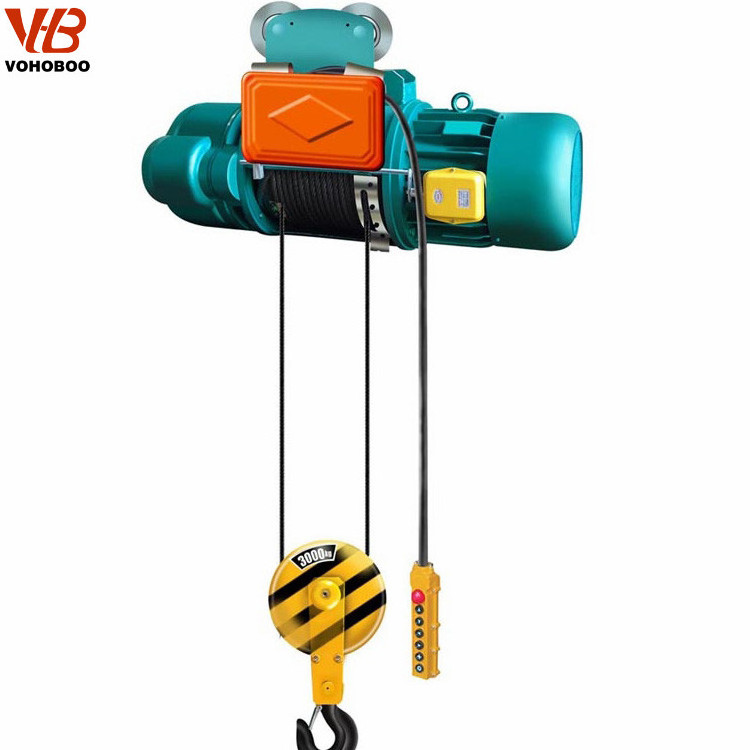

Electric Wire Rope Hoist
-
Control Method:
-
Pendent Control or Remote Control
-
Working Class:
-
Light duty and heavy duty
-
Type:
-
Moveable
-
Power supply:
-
380V 50Hz or on request
-
Color:
-
Customised
-
Protection class:
-
IP54, IP55 or customized
-
Travelling Speed:
-
2-30m/min
-
Application:
-
Single girder or Double girder overhead crane
-
Lifting height:
-
6~30m
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Electric Wire Rope Hoist
-
Control Method:
-
Pendent Control or Remote Control
-
Working Class:
-
Light duty and heavy duty
-
Type:
-
Moveable
-
Power supply:
-
380V 50Hz or on request
-
Color:
-
Customised
-
Protection class:
-
IP54, IP55 or customized
-
Travelling Speed:
-
2-30m/min
-
Application:
-
Single girder or Double girder overhead crane
-
Lifting height:
-
6~30m
-
Certification:
-
CE
|
Model
|
CD1/MD1
|
Capacity
|
0.5-20ton
|
|
Grade
|
M3
|
LIfting Height
|
6-30m
|
|
Lighting Speed
|
8m/min or 8/0.8m/min
|
Running Speed
|
20m/min
|
|
Pulley Ratio
|
2/1
|
Lifting Motor Power
|
0.2-13kw
|
|
Running Motor Power
|
0.2kw-0.8*4kw
|
Brand
|
VOHOBOO
|
|
Place of Origin
|
Hubei, China
|
Payment Terms
|
L/C,T/T, Western Union, Paypal, Escrow, etc.
|
|
Delivery Time
|
5-7 working days
|
Warranty
|
1 year
|
|
MOQ
|
1 Piece
|
Port
|
Shanghai or other port of China
|
Product introduction
1. Design: International advanced tide compact and nice.
2. Reduce: High strength hard gear surface, inclined gear driving with low noise.
3. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer.
4. Wire Rope: The tensile strength is 1760N/mm2.
5. Limit Switch: Cam limit model operate safety.
Main Components of Crane Hoist
Hoist motor is a taper type rotor with braking, our motor is one of the best quality motors, it has bigger torque. So it can be adapted to move frequently.
Gear Box
Hoist gear box has specially treated gears for high wear resistance. Each geared shaft assembly is supported on ball roller bearing, to ensure smooth, low-friction operation.
Rope Drum
Grooved drum, deamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear. Drum shaft resolves on ball bearing for ensuring smooth running.
Wire Rope
Hoist rope comply with the exporting ISO standard. The leading rope taken by the drum, does not slip side way when slack. The factor of safety, on the nominal breaking strength of the rope is six.
Rope Guider
Rope Guider is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the hoist is unloaded condition.
Hook
The hook block is tested to 150% of full load before assembly. The rope sheaves are fully guarded with protective steel casting.
Other Accessories of Single Girder Overhead Crane Hoist:
Electrical control box:
When something emergency happen, the control box can cut down the power at first.
Controllers:
Hand control, light weight and flexible. Pendent panel and remote control for option
.
Advantages of Vohoboo Wire Rope Hoist:
• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve, market agent support and protection.
• Excellent quality, top in China, always the leader.
• Sample order and trail order are acceptable.
Packing&Delivery:
Packing: Packed bubble film first, then put in to the wooden case or packed with the steel pallet.
Wuhan Vohoboo Import & Export Trade Co.,Ltd
is a modern high technology enterprise integrated R&D, manufacture and sales since the year of 2011.
We specialized in the development and production of
electric hoist
, manual hoist, magnetic lifter, pallet truck, crane wheel, crane hook, DN hoist lifting motor, YSE crane traveling motor, (CD/MD...), CK car parking motor and so on, are widely used in electric hoist, gantry crane, overhead crane, car parking system and other lifting equipment.
With 180 employees, engineers worked from Demag, and professional sales team, the company is developing in international business.
For more info., please view our website:
http://www.vohoboo.com/
Favorable Comments
Certificates
Q1.What information should I let you know if I want to get a quotation?
1) Lifting capacity.
2) Lifting height. (hook center to ground)
3) Power supply: Voltage.
4) Span(rail center to rail center)
5) Working condition: which material to lift? temprature?
6) Would be better if you send the drawings.
Q2. What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. About 10-20 working days will be finished. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Q3.What is your terms of delivery ?
We accept EXW, FOB, CFR, CIF, etc. you can choose the one which is the most convenient or cost effective for you.
Q4.Which payment terms will you receive ?
L/C,T/T, Western Union, Paypal, Escrow, etc.
Q5.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.All products will be well packed before shipping.
Q6.How long is the warranty ?
The whole machine of all our products have 12 months warranty , and we sure the product will be free from maintenance within warranty period .Low charge for continue maintenance when warranty is expired.
