Ceramic multicyclone dust collector

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: custom

Weight:: custom

Material:: Carbon Steel

Advantages:: Cleaning Pulse

Color:: Customers' Requirements

Product name:: Cyclone Dust Collector

Certification:: CE SGS ISO certificate

Quick Details

Minimum Particle Size:: 0.3-0.5um

Place of Origin:: Hebei, China

Brand Name:: Kuntai

Dimension(L*W*H):: custom

Weight:: custom

Material:: Carbon Steel

Advantages:: Cleaning Pulse

Color:: Customers' Requirements

Product name:: Cyclone Dust Collector

Certification:: CE SGS ISO certificate

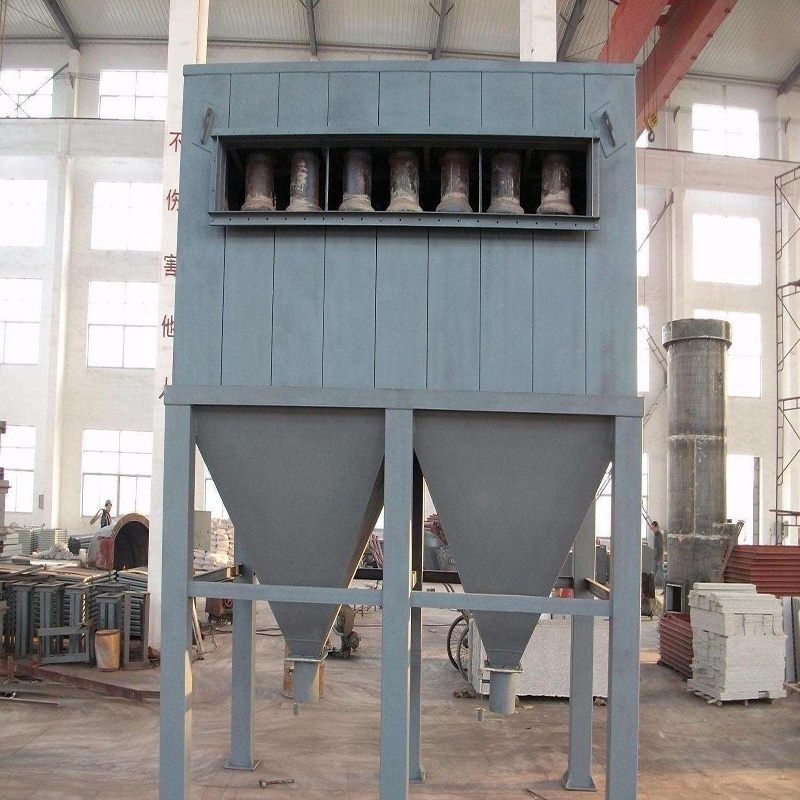

Ceramic multicyclone dust collector

The working principle of the cyclone dust collector is that the inner cylinder and the outer cylinder show spiral motion after the dust gas enters from the air inlet.After entering the inner cylinder, centrifugal force is generated due to the circular motion of dusty gas. Under the action of centrifugal force, the dust particles are separated from the airflow and trapped in the wall of the device. Then, the dust particles fall into the dust hopper with the help of gravity, and the purified gas is discharged upward from the inner cylinder. It is mainly used to remove the non-fibrous and non-cohesive dust with high density in the industrial waste gas, and can be used in the ventilation dust removal and material recovery system of metallurgical refractory coal chemical industry and electric power industry, especially suitable for the initial purification of high-temperature flue gas.

Advantage:

1.It is suitable for dust with high purification density and particle size greater than 5 m, but not for dust with strong adhesion;
2.No moving parts, easy to manage and maintain;
3.Small volume, simple structure and low price for the same air volume;
4.It is convenient to use multiple units in parallel when dealing with large air volume, and the efficiency resistance is not affected;
5.Can withstand high temperature of 400, if the use of special high-temperature materials, but also can withstand higher temperature;
6.After the dust collector is equipped with an abrasion resistant lining, it can be used to purify the flue gas containing highly abrasive dust.
7.Can be dry cleaning, is conducive to the recovery of valuable dust.
