Quick Details
-
Warranty:
-
1YEARS-2YEARS
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EMEAN
-
Model Number:
-
GFS-24
-
Speed:
-
1500RPM/1800RPM
-
Certificate:
-
CE/ISO/COC/CIQ/SONCAP
-
Diesel engine:
-
BFM3G2/32/38kw
-
Engine type:
-
Water-cooled 4-cylinder in-line engine
-
Fuel consumption:
-
7.7 L/h @100% loads
-
Alternator:
-
China Stamford 184G
-
Control panel:
-
DSE3110
-
Breaker:
-
4P with RCD
-
Fuel Tank:
-
8-10hours
-
Options:
-
100A ATS for auto start
Quick Details
-
Rated Voltage:
-
110V, 220V, 230V, 240V, 380v, 400V, 480V
-
Rated Current:
-
single-phase :100A-218A 3 phase:42A-75A
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
1YEARS-2YEARS
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EMEAN
-
Model Number:
-
GFS-24
-
Speed:
-
1500RPM/1800RPM
-
Certificate:
-
CE/ISO/COC/CIQ/SONCAP
-
Diesel engine:
-
BFM3G2/32/38kw
-
Engine type:
-
Water-cooled 4-cylinder in-line engine
-
Fuel consumption:
-
7.7 L/h @100% loads
-
Alternator:
-
China Stamford 184G
-
Control panel:
-
DSE3110
-
Breaker:
-
4P with RCD
-
Fuel Tank:
-
8-10hours
-
Options:
-
100A ATS for auto start
Emean company owned by Fujian Epos electric machinery co.,
Itd
and Fuzhou Emean Electric Machinery Co.,Ltd LTD that is a high-tech enterprise integrating R&D, production and sales, and has always promoted high-quality power products to the international market.
The products are widely sold more than 102
countries and regions such as Southeast Asia South America Middle east Africa and Furope
. Etc
Product parameters
|
We have power from 10kw-2000kw,
any interesting please contact with us to quote the best price for you
|
|
|
|
|
||||
|
Details
Genset
|
GenSet Model
|
VG-W33
|
Type
|
silent(optional open)
|
||||
|
|
Frequency (Hz)
|
50/60
|
Speed rpm
|
1500/1800
|
||||
|
|
N.W (kg)
|
750
|
Size (L*W*H)mm
|
1950*950*1100
|
||||
|
|
Fuel Con.(L/H)
|
6.0
|
Fuel capacity tank
|
70.6
|
||||
|
|
Running time (H)
|
11
|
Sound decibel
|
70DB-90DB
|
||||
|
|
Brand
|
Weichai
(Optional
Perkins
,
Cummins
,
FAW
,Weifang
etc.)
|
|
|
||||
|
|
Model
|
WP2.3D33E200
|
Fuel
|
Diesel
|
||||
|
|
Cylinder
|
4
|
Cooling system
|
water
|
||||
|
|
Starter
|
electric
|
Displacement(L)
|
2.3
|
||||
|
Details
Alternator
|
Brand
|
China Stanford, original Stanford, Marathon, Lehua Somer, etc.
|
|
|
||||
|
|
Model
|
VG-184G
|
Type
|
Brushless sel-excited
|
||||
|
|
Pure copper content
|
100%
|
Efficient
|
92%
|
||||
|
|
Radiator
|
40℃-50℃
|
Battery
|
Electric start 24V
charger
|
||||
|
3 phase
power |
Rated power
|
24kw/30kva
|
Rated voltage
|
230v/380v/400v/415v
|
||||
|
|
Standby power
|
26kw/33kva
|
Rated current
|
75A/46A/43A/42A
|
||||
|
Optional single phase
|
|
|
|
|
||||
|
Delivery date
|
|
|
|
|
||||
|
Spot goods
|
Quantity (pcs)
|
≤20
|
above 20
|
|
||||
|
|
Delivery time
|
next day after payment
|
3-7 day after payment
|
|
||||
|
custom
|
Quantity (pcs)
|
≤20
|
≤50
|
above 50
|
||||
|
|
Delivery time
|
25 days after payment
|
45 days after payment
|
Negotiation required
|
||||
|
Please contact us to confirm whether the product you need is in stock.
|
|
|
|
|
||||
Generator type
|
Open type
|
Silent type
|

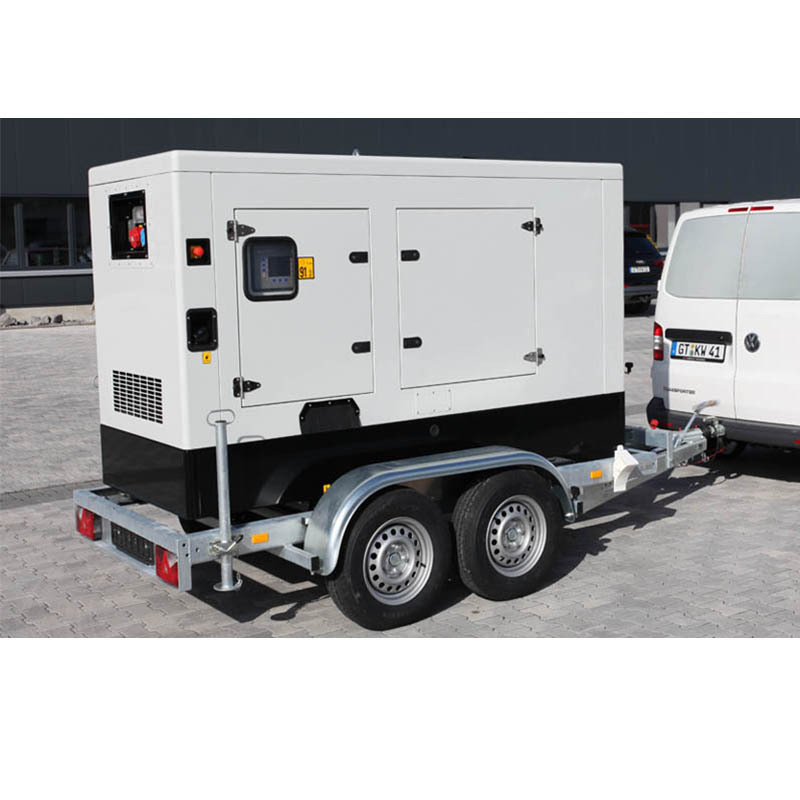

Mobile style
|
Service Guarantee
Customization and Technology
HIGH-DENSITY WAVE SOUND-ABSORBING COTTON
1. When sound waves pass through cotton, they are reflected by countless fibers,superimposed on each other, and collide.The sound wave energy is converted into heat energy, so that the intensity of thesound wave is weakened and the sound disappears.
2. Mute sponge Mute sponge, thickness 33 mm
Customized service
(The picture shows conventional customization, you can tell us if you have any customization requirements.)
1、LOGO and color customization
2 、
Nameplate customization
3、
Style customization
（
You can choose rounded, right-angled, Denyo and other styles
）
4、
Fuel tank capacity customization
(You can choose 8 hours, 12 hours, 24 hours, 48 hours)
Our certificate
Product configuration and details
|
BRUSHLESS ALTERNATOR
|
ENGINE
|
|
Maintenance-free, very stable operation and voltage, low noise, suitable for use with high precision equipment and electrical equipment.
|
Cooperate with Cummins, Perkins, Deutz Honda and many other famous brand engines to provide you with global warranty services.
|
|
CORROSION RESISTANT RADIATOR
|
SOLID DAMPING FOOT
|
AIR FILTER
|
|
High quality and low noise radiators, with anti-rust paint to add, ensure that your machine will never old, mildew, corrosion resistance, safety.
|
solid damping foot is stamping forming by 3-5 mm high strength steel plate, with metal cover to protect rubber.
|
piston, piston ring, valve and valve seat with more than 99.5% of original filtration efficiency
|
|
Digital control panel
|
ELECTRONIC COMPONENTS
|
THICKENED BENDED UNDERFRAME
|
|
use of three remote control unit control panel,integrated digital, intelligen't technology, compact structure, simple wiring, high
reliability. |
Cooperate with well-known electronic component manufacturers such as Delixi and Chint to provide customers with long-life,high-quality and very accurate machines
|
5MM thickened bent chassis, double-layer painting, improve corrosion resistance. Prevent the unit chassis from being corroded
|
