Quick Details
-
Product name:
-
Streaming Media server
-
Input interface:
-
1 channel IP
-
Output:
-
1 channel IP interface output
-
Network protocol:
-
RTP, SRT, HTTP, RTSP, RTMP, HLS, UDP, multicast, unicast
-
Audio bit rate:
-
Automatic adaptation
-
video streams:
-
up to 200 channels of 2 Mbps
-
Support:
-
2 Gigabit Ethernet for transmission; 100M/1000M*RJ45
-
Application:
-
Digital TV Head-end System
-
USB 3.0 Input:
-
Support USB flash disk file(MP4,TS,FLV) forwarding function
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibviewolo
-
Model Number:
-
OTV-SMS1
-
Product name:
-
Streaming Media server
-
Input interface:
-
1 channel IP
-
Output:
-
1 channel IP interface output
-
Network protocol:
-
RTP, SRT, HTTP, RTSP, RTMP, HLS, UDP, multicast, unicast
-
Audio bit rate:
-
Automatic adaptation
-
video streams:
-
up to 200 channels of 2 Mbps
-
Support:
-
2 Gigabit Ethernet for transmission; 100M/1000M*RJ45
-
Application:
-
Digital TV Head-end System
-
USB 3.0 Input:
-
Support USB flash disk file(MP4,TS,FLV) forwarding function
Products Description
Overview
As the demand for streaming media continues to rise, content delivery providers require a state-of-the-art streaming media server solution in order to meet customer expectations and stay competitive in a rapidly evolving market, The right streaming media server must be able to provide broadcast-quality content and scale rapidly to accommodate spikes in user demand. It must be able to optimize and serve media on any device while supporting a wide range of streaming video protocols. And a superior
streaming,media server must provide unflagging reliability.
OTV-SMS1 mini Streaming Media server, The main function of the streaming media server is to transmit video files to the client through streaming protocols (RTP/RTSP, MMS, RTMP, etc.) for users to watch online; it can also receive real-time video streams from video capture and compression software, and then stream Protocol live broadcast.The streaming media Server use the latest ARM,hardware embedded chip architecture. It is a high-performance, high-reliability, and high-concurrency streaming media server that could achieve dual gigabit network port data conversion and supports multi-protocol and multi-format video stream distribution,Low-cost solution to streaming media distribution application.
streaming,media server must provide unflagging reliability.
OTV-SMS1 mini Streaming Media server, The main function of the streaming media server is to transmit video files to the client through streaming protocols (RTP/RTSP, MMS, RTMP, etc.) for users to watch online; it can also receive real-time video streams from video capture and compression software, and then stream Protocol live broadcast.The streaming media Server use the latest ARM,hardware embedded chip architecture. It is a high-performance, high-reliability, and high-concurrency streaming media server that could achieve dual gigabit network port data conversion and supports multi-protocol and multi-format video stream distribution,Low-cost solution to streaming media distribution application.
Main Features
* High efficiency and low latency by embedded DSP pure hardware solution
* SupportHLS/ RTSP/ RTMP/ HTTP/ RTP/ SRT protocol input
* Supports concurrent access& restreaming of up to 200 channels of 3 Mbps video streams
* Support USB flash disk file(MP4,TS,FLV)forwarding function
* Support Output protocol RTMP/ HLS/ RTSP
* Linux operating system, easy to use and operate, supports remote configuration
* The ON VIF devices& accessible addresses can be loaded through intranet search
* Ingest Any Live Stream encoder and Deliver to Any Device
* SupportHLS/ RTSP/ RTMP/ HTTP/ RTP/ SRT protocol input
* Supports concurrent access& restreaming of up to 200 channels of 3 Mbps video streams
* Support USB flash disk file(MP4,TS,FLV)forwarding function
* Support Output protocol RTMP/ HLS/ RTSP
* Linux operating system, easy to use and operate, supports remote configuration
* The ON VIF devices& accessible addresses can be loaded through intranet search
* Ingest Any Live Stream encoder and Deliver to Any Device
* Create live, linear, or on-demand streaming applications
* Stream live events, video conferencing, audio streaming, 24/7 streaming and more.
* Deliver video and audio streams to any player or device
* Refine the live streaming workflow
* Deliver the highest quality streams
* RTMP server supports various streaming media servers, like Alibaba Cloud, Tencent Cloud and so on
* Supportconnect to IPC, DVR, NVR, video coding front-end equipment, etc.
* Stream live events, video conferencing, audio streaming, 24/7 streaming and more.
* Deliver video and audio streams to any player or device
* Refine the live streaming workflow
* Deliver the highest quality streams
* RTMP server supports various streaming media servers, like Alibaba Cloud, Tencent Cloud and so on
* Supportconnect to IPC, DVR, NVR, video coding front-end equipment, etc.
|
Specifications
|
|
|
|
|
||||
|
Item
|
Description
|
|
|
|
||||
|
Input
|
|
|
|
|
||||
|
1 channel IP interface input
|
|
|
|
|
||||
|
Resolution
|
|
|
|
|
||||
|
Unlimited
|
|
|
|
|
||||
|
Network protocol
|
|
|
|
|
||||
|
RTP, SRT, HTTP, RTSP,RTMP, HLS, UDP, multicast, unicast
|
|
|
|
|
||||
|
USB 3.0 Input
|
|
|
|
|
||||
|
Support USB flash disk file(MP4,TS,FLV) forwarding function
|
|
|
|
|
||||
|
Output
|
|
|
|
|
||||
|
1 channel IP interface output
|
|
|
|
|
||||
|
Resolution
|
|
|
|
|
||||
|
Consistent with input
|
|
|
|
|
||||
|
Network protocol
|
|
|
|
|
||||
|
RTMP、HLS、RTSP、RTP、UDP multicast, unicast
|
|
|
|
|
||||
|
Audio bit rate
|
|
|
|
|
||||
|
Automatic adaptation
|
|
|
|
|
||||
|
Function
|
|
|
|
|
||||
|
2 Gigabit Ethernet for transmission;
100M/1000M*RJ45 |
|
|
|
|
||||
|
The Working Environment
|
|
|
|
|
||||
|
Power supply:DC 12V
Power consumption:5W Size:100mm x 118mm x40mm(L*W*H) Operating temperature:-20℃+ 60℃ Working humidity:<90%, Non-condensing Weight:0.7KG |
|
|
|
|
||||

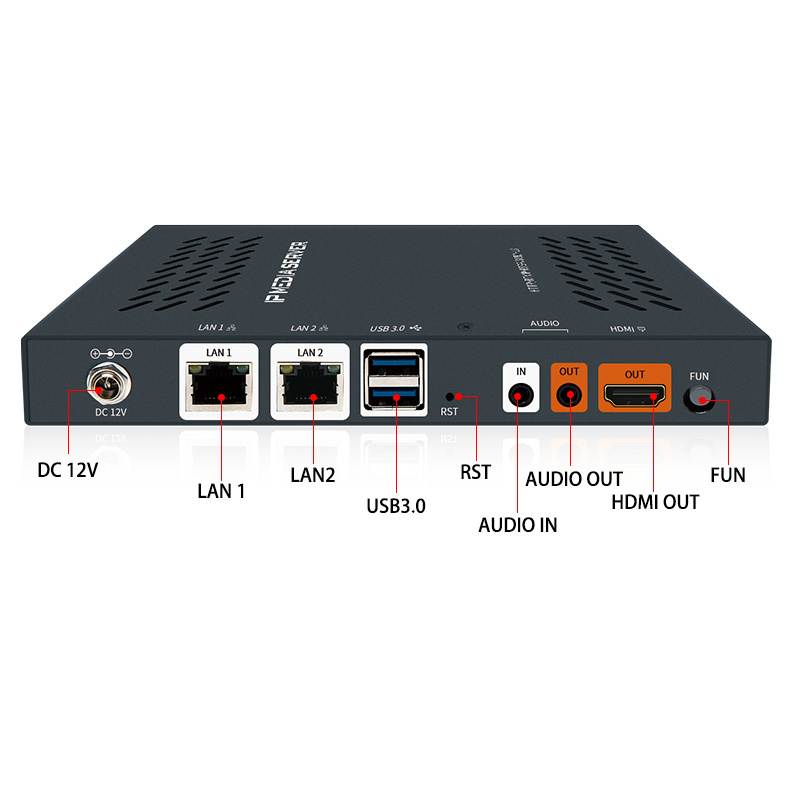

Key Diagram or Application
