Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYB Jintai OEM SF-1 SF-2
-
Model Number:
-
DU DX SF1 SF2 JDB WB800 WB802 WB700 WB702 JF800 FU
-
Lubricating:
-
Oilless,Dry,Carbon,Covered,Graphie,SL-4,Oil Grease,mos2
-
Bush types:
-
Roll,Roller,Pipe,Solid,Split,Tube,Washer Ring,Plate
-
Standard:
-
DIN 1494, ISO2795, ISO/TS16949
-
Application 1:
-
Water Pump,Engine,Metallurgy,Farm Equipment,Forest Machine
-
Application 2:
-
Motor,Car,Truck,Plane,Fixed Bearings,Furniture,Truck,Updated
-
Application 3:
-
oil and gas industry Auto Parts Bushing,plumbing,machine part,pump
-
Features:
-
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
-
Finishing:
-
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
-
Other products:
-
Oiles Bushing,Ball Cage,Bimtel,Wrapped Bronze Bushing,Cast Brass
-
Samples:
-
charged or free samples, small order acceptable
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Other, Advertising Company
-
Type:
-
flanged,sleeve,thrust washer,slide pad,plain,skateboard
-
Material:
-
Brass,Bimetal,Stainless Steel,Copper,Steel,Bronze
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYB Jintai OEM SF-1 SF-2
-
Model Number:
-
DU DX SF1 SF2 JDB WB800 WB802 WB700 WB702 JF800 FU
-
Lubricating:
-
Oilless,Dry,Carbon,Covered,Graphie,SL-4,Oil Grease,mos2
-
Bush types:
-
Roll,Roller,Pipe,Solid,Split,Tube,Washer Ring,Plate
-
Standard:
-
DIN 1494, ISO2795, ISO/TS16949
-
Application 1:
-
Water Pump,Engine,Metallurgy,Farm Equipment,Forest Machine
-
Application 2:
-
Motor,Car,Truck,Plane,Fixed Bearings,Furniture,Truck,Updated
-
Application 3:
-
oil and gas industry Auto Parts Bushing,plumbing,machine part,pump
-
Features:
-
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
-
Finishing:
-
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
-
Other products:
-
Oiles Bushing,Ball Cage,Bimtel,Wrapped Bronze Bushing,Cast Brass
-
Samples:
-
charged or free samples, small order acceptable

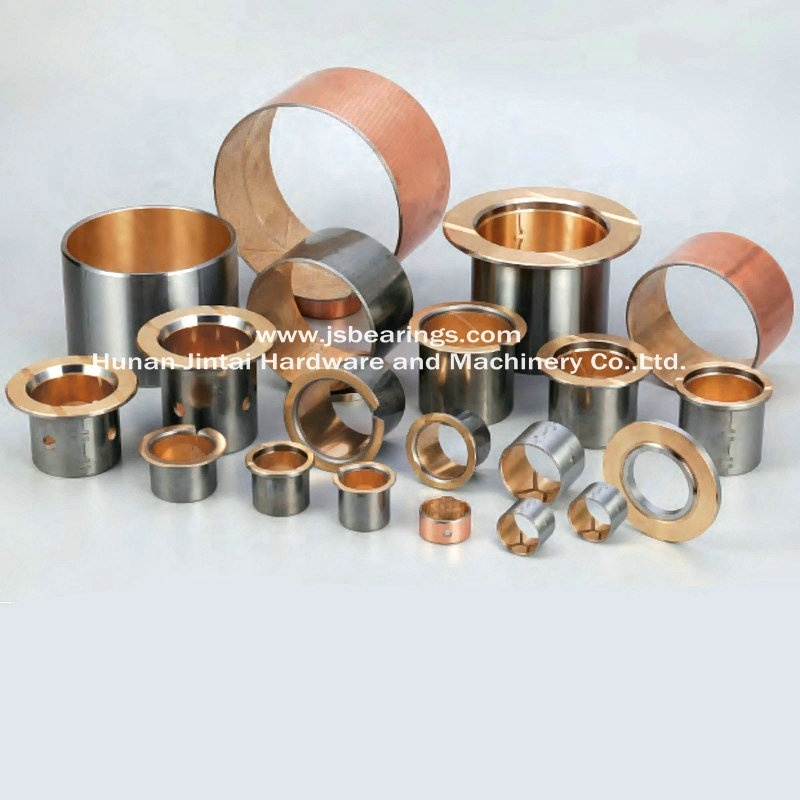

JF-800 Bimetal Bushing / BPW Sleeve Steel Copper Plated Bimetal Bearing / Con Rod Bush Connecting Con-rod Bimetallic Bushings
BIMETAL BUSHING
|
Material: 1. Steel + Bronze alloy (CuPb10Sn10) + PTFE 2. Steel + Bronze alloy (CuPb10Sn10) 3. Steel + Bronze alloy (CuSn4Pb24) 4. Steel + Bronze alloy (CuPb24Sn) 5. Steel + Alloy stage (AlSn20Cu) 6. Steel + Bronze alloy (CuPb30) |
Application: Mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment. Construction machines,chassis,apron wheels etc .
Get
CATALOGUE
or
PRICE
, please contact by e -
DU SF-1 BUSHING (PTFE)
|
Material: 1. Steel + Bronze powder + PTFE + Pb + Polymer 2. Steel + Bronze powder + PTFE + Polymer - Normally Used 3. Bronze + Bronze powder + PTFE + Polymer 4. Stainless steel + Bronze powder + PTFE + Polymer 5. Stainless steel + PTFE + Polymer 6. Carbon steel + Sintered bronze powder + PTFE + MoS2 |
|
Structure
|
PTFE with lead/Cu/Fibre : 0.01-0.03mm |
|
Porous bronze : 0.2-0.3mm |
|
|
Steel backing : 0.7-2.3mm |
|
|
Tin-plating 0.005mm or copper plating 0.008mm |
|
Type |
Load capacity(N/mm2) |
PV limit(N/mm2*m/s) |
Speed limit (in oil) |
Temp.limit |
μ Frictio Coef. |
Themal conductivity |
Linear expansion |
|||
|
Static |
Dynamic |
Oscillating |
Oil |
Dry |
(m/s) |
(℃) |
(W/MK) |
|||
|
SF-1X |
250 |
140 |
60 |
50 |
3.6 |
5.0 |
-195~270 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1T |
250 |
140 |
60 |
60 |
4.3 |
10 |
-195~260 |
0.03~0.18 |
13 |
11*10(-6)/k |
|
SF-1P |
250 |
140 |
60 |
50 |
1.8 |
2.5 |
-195~270 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1W |
250 |
140 |
60 |
50 |
3.6 |
5.0 |
-195~300 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1B |
250 |
140 |
60 |
60 |
4.3 |
5.0 |
-195~270 |
0.04~0.18 |
18 |
21*10(-6)/k |
|
SF-1D |
250 |
140 |
60 |
50 |
3.8 |
3.0 |
-195~270 |
0.04~0.18 |
16 |
15*10(-6)/k |
|
SF-1S |
250 |
140 |
60 |
50 |
3.6 |
4.5 |
-195~270 |
0.04~0.20 |
16 |
15*10(-6)/k |
|
SP-1SS |
250 |
140 |
60 |
40 |
3.0 |
2.5 |
-195~270 |
0.04~0.25 |
13 |
15*10(-6)/k |
Application:
Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.
DX SF-2 BUSHING (POM)
|
Material: 1. Steel + Bronze powder + POM + Pb 2. Steel + Bronze powder + POM - Normally Used |
|
Structure
|
POM with/without lead : 0.3-0.5mm |
|
Porous bronze : 0.2-0.3mm |
|
|
Steel backing : 0.4-2.2mm |
|
|
Tin-plating 0.005mm or copper plating 0.008mm |
Application:
Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.
BRONZE GRAPHITE BUSHING
Material:
1. CuZn25Al6Fe3Mn3 + Graphite
2. ZCuAl9Fe4Ni4Mn2 + Graphite
3. ZCuSn5AlPb5Zn5 + Graphite
4. ZCuSn10Zn2 + Graphite
5. HT250# Cast Iron + Graphite
6. CuZn25Al6Fe3Mn3 (High-stress Brass)
Application: solid brass bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc
WRAPPED BRONZE BUSHING
Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
3. CuZn31Si
4. Bronze(graphite inside)
5 . All kinds of brass,copper,bronze material
Industrial: Widely used in construction machinery, agricultural machinery and so on.
SINTERED BRONZE BUSHING MOTOR FAN BUSHING CAST IRON BEARING
|
Performance index |
Data |
|
Maximum load capacity |
150 N/mm2 |
|
Temperature range |
-60~+200 ℃ |
|
Maximum sliding speed |
2.5 m/s |
|
Alloy material |
CuSn6-6-3 |
|
Maximum PV value |
2.45 N/mm2*m/s |
OTHER SLIDE BEARING
