Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincerely
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Satellite grader
-
Linkage type:
-
3 point mounted
-
Power Required:
-
25-100hp
-
Weight::
-
1500kg
-
drive type:
-
PTO drive
-
Usage:
-
Laser grader
-
Width:
-
2-2.5m
-
Certification:
-
CE ISO
Quick Details
-
Weight (KG):
-
1150
-
Type:
-
Agricultural Machinery Tools
-
Use:
-
ditching
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincerely
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Satellite grader
-
Linkage type:
-
3 point mounted
-
Power Required:
-
25-100hp
-
Weight::
-
1500kg
-
drive type:
-
PTO drive
-
Usage:
-
Laser grader
-
Width:
-
2-2.5m
-
Certification:
-
CE ISO
Soil Scraper Tractor Satellite Grader Laser Leveler Power Land Grader For Sale
Satellite grader / Agricultural laser land leveling machine/laser leveling machine/laser positioning leveling machine/concrete laser leveling machine/satellite leveling machineDescription:
Agricultural laser land leveling system mainly consists of laser transmitter, laser receiver, controller and hydraulic workstation. Its working principle is: the laser emitter sends out the datum circle plane of a certain diameter (which can also provide the reference slope), the receiver installed on the shovel support rod controls the hydraulic actuator after the collected signal is processed by the controller. Hydraulic mechanism according to the requirements to control the operation of shovel up and down, can complete the land leveling operation.
Working environment ; Land reclamation ,old field refurbishment, Newland leveling ,sloping fields
upgrading ,paddy field leveling, dry land leveling and other fields ..
Satellite grader / Agricultural laser land leveling machine/laser leveling machine/laser positioning leveling machine/concrete laser leveling machine/satellite leveling machineFeatures:
This laser land leveler is used with 4-wheel farm tractor, can greatly hlep save water and make the land flatness tolerance below +/-2cm which is much better than ordinary irrigation method.
1. It can then save water by 20% or more.
2. By precision land levelling operation, can reduce the unnecessary ridge area by 3-5% to make good use of farm land.
3. With increased land flatness, it can help make fertilizer evenly distributed and increase the utilization rate by around 20%. It will then increase the crop yield by 20-30% with better water irrigation effect and the crop quality at the same time.
4. Better control of weed and pest damage.
5. Crop production cost saving by 5-15%
Satellite grader / Agricultural laser land leveling machine/laser leveling machine/laser positioning leveling machine/concrete laser leveling machine/satellite leveling machine Technical Parameters:
|
Model |
Unit |
SINS-200 |
SINS -250 |
SINS -300 |
SINS -350 |
SINS -400 |
SINS -350 retractable |
|
Working width |
mm |
2000 |
2500 |
3000 |
3500 |
4000 |
3500 Adj |
|
Matched power |
Hp |
45-55 |
55-65 |
65-88 |
88-120 |
>120 |
88-120 |
|
Operational efficiency |
hm/h |
1.0-1.4 |
1.3-1.8 |
1.6-2.0 |
1.9-2.3 |
2.1-2.5 |
1.9-2.3 |
|
Wheelbase(min) |
mm |
1500 |
1800 |
2000 |
2000 |
2500 |
1650/660 |
|
Length |
mm |
3150 |
3150 |
3150 |
3350 |
3350 |
4100 |
|
Width |
mm |
2050 |
2650 |
3050 |
3550 |
4050 |
2500 |
|
Height |
mm |
3600 |
3600 |
3600 |
3600 |
3600 |
4000 |
|
Weight |
Kg |
600 |
820 |
1000 |
1200 |
1400 |
1800 |

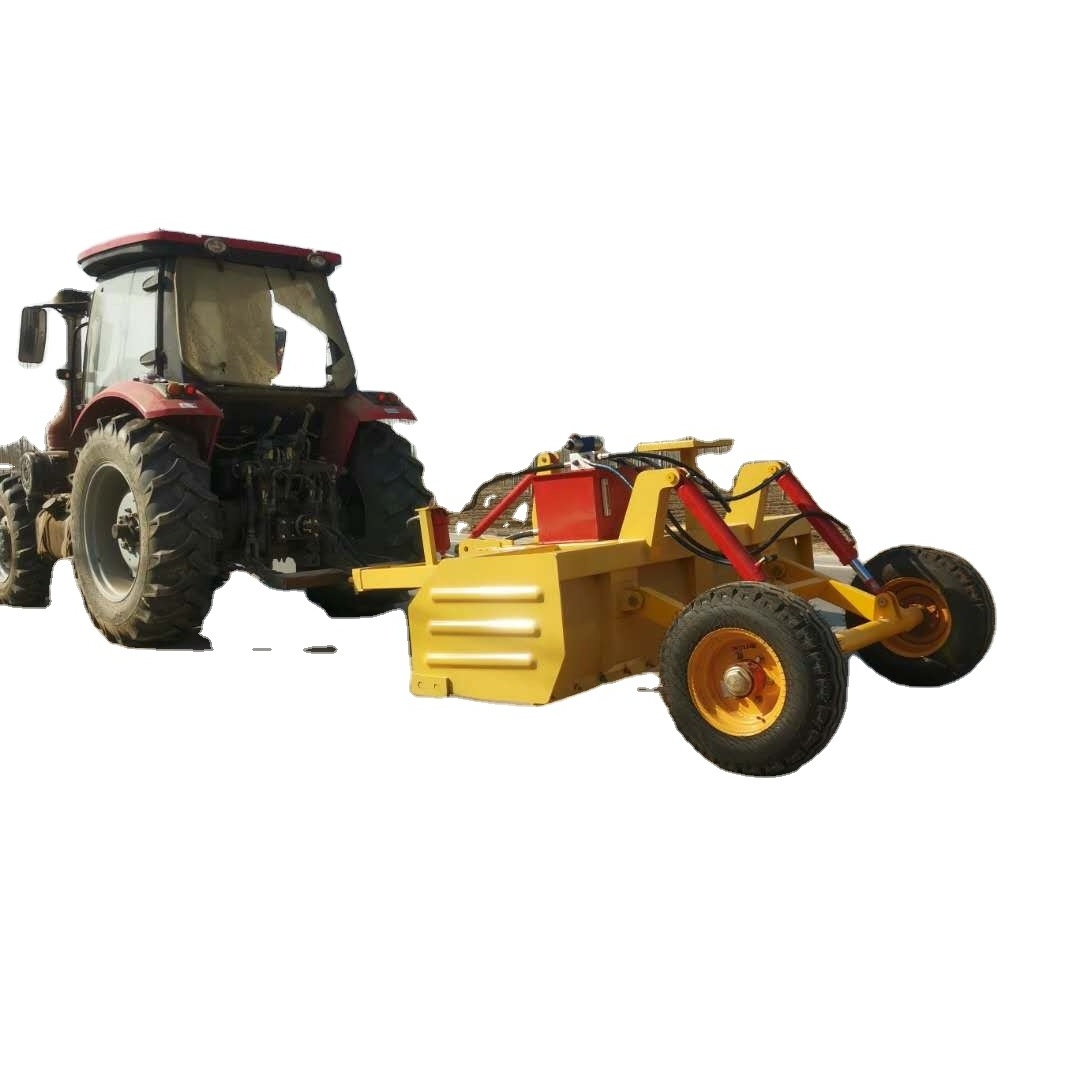

Photos of Leveling machine / Agricultural laser land leveling machine/laser leveling machine/laser positioning leveling machine/concrete laser leveling machine/satellite leveling machine :
we also have below type Tractor Pto Driven Chain Ditcher :
The Packing and shipping of Tractor Pto Driven Chain Ditcher :
