1.Model :L01 (Hand Switch , X ray hand switch , Exposure hand switch)
2.Overview: Step 1 control exposure readiness, Step 2 control exposure
3.Parameters:
(1) Mechanical parameters: mechanical life ≤ 200,000 times
Handle size: Length: 10.5cm (Max.) Diameter: 3cm
Spring wire: standard 4 core 3 meters (3 core optional, wire length can be customized)
Gear: 2
(2) Electrical parameters: switching life ≤ 400,000 times
Operating voltage: AC: 125V 1A
DC: 30 V 2 A
4. Material: (1) frosted surface
(2)smooth surface
5.Features: (1) Using omron long life micro switch design
(2) Double spring two step design
(3) Button cap platform design
(4) Can replace GE, Omron, Fuji and other brands hand switch
(5) Mute design, soft feel
6.Scope of application: digital x ray machine, digital DR gastrointestinal machine, C arm, veterinary X-ray machine
7.The plug can be customized (need to provide wiring mode)
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NEWHEEK
-
Model Number:
-
L01A
-
IP level:
-
IP67
-
Configuration::
-
Adopt Omron Inner support
-
Mechanical Life ::
-
2,000,000 Times
-
Electric Life ::
-
400,000 Times
-
Material ::
-
White,Super ABS Housing
-
Specification::
-
4-core, 3m-wire
-
Certificate::
-
RoHS
-
Material:
-
4.smooth surface
-
customized:
-
7.The plug can be customized (need to provide wiring mode)
-
Certification:
-
Rohs
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
AC:125V 1A / DC:30V 2A
-
Max. Voltage:
-
AC:125V / DC:30V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NEWHEEK
-
Model Number:
-
L01A
-
IP level:
-
IP67
-
Configuration::
-
Adopt Omron Inner support
-
Mechanical Life ::
-
2,000,000 Times
-
Electric Life ::
-
400,000 Times
-
Material ::
-
White,Super ABS Housing
-
Specification::
-
4-core, 3m-wire
-
Certificate::
-
RoHS
-
Material:
-
4.smooth surface
-
customized:
-
7.The plug can be customized (need to provide wiring mode)
-
Certification:
-
Rohs
Product Description

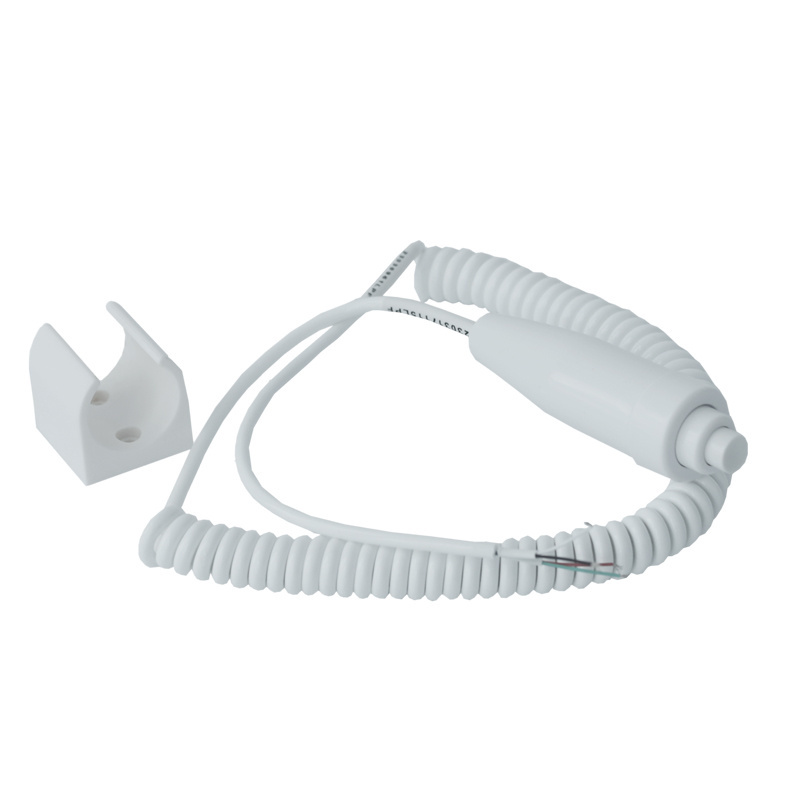

L01 Hand Switch
Specification
|
item
|
value
|
|
Place of Origin
|
Shandong, China
|
|
Model Number
|
L01, 4C3M
|
|
Power Source
|
Manual
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Material
|
metal, ABS
|
|
Shelf Life
|
3 years
|
|
Quality Certification
|
RoHS
|
|
Instrument classification
|
Class I
|
|
Safety standard
|
GB15979-2002
|
|
Configuration:
|
Adopt Omron Inner support
|
|
Mechanical Life :
|
2,000,000 Times
|
|
Electric Life :
|
400,000 Times
|
|
Material :
|
White,Super ABS Housing
|
|
Specification:
|
4-core, 3m-wire
|
|
Certificate:
|
RoHS
|
Packing & Delivery
Waterproof and shockproof carton
