Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CARE
-
Model Number:
-
AC-6900A
-
Product name:
-

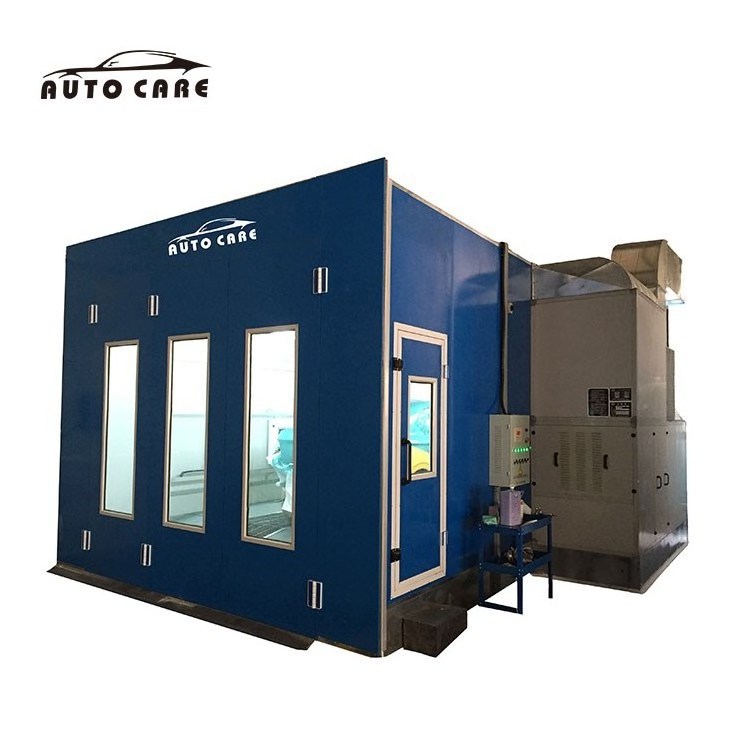

Auto Spray Booth for Car Paint, Body Repair, baking AC-6900A
-
Heating System:
-
Diesel Burner
-
Color:
-
Red White Orange Blue
-
Lighting System:
-
Led Light
-
Environmental certificate:
-
CE Approved Cabinet Spray Booth
-
Filters:
-
Environmental 3 Filter Process
-
Fans kind:
-
Centrifugal Fans CE
-
Warranty:
-
1 Year
-
Usage:
-
Car Painting Baking
-
damper:
-
Belimo NMU230 20NM electric damper
Quick Details
-
Power:
-
10.5KW
-
External Size:
-
7000x5200x3600mm
-
Internal Size:
-
6900*3900*2750 Mm
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CARE
-
Model Number:
-
AC-6900A
-
Product name:
-
Auto Spray Booth for Car Paint, Body Repair, baking AC-6900A
-
Heating System:
-
Diesel Burner
-
Color:
-
Red White Orange Blue
-
Lighting System:
-
Led Light
-
Environmental certificate:
-
CE Approved Cabinet Spray Booth
-
Filters:
-
Environmental 3 Filter Process
-
Fans kind:
-
Centrifugal Fans CE
-
Warranty:
-
1 Year
-
Usage:
-
Car Painting Baking
-
damper:
-
Belimo NMU230 20NM electric damper
| Model: AC-6900A | |||
| Detailed Parameters | |||
| Dimensions | Length (mm) | Width (mm) | Height (mm) |
| Booth Outside | 7,000 | 5,200 | 3,300 |
| Booth Inside | 6,900 | 3,900 | 2,650 |
| Entrance Door | 3 folds,size is 3,000×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock | ||
| Personnel Door | size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock | ||
| Plenum Chamber |
700mm high, all spare parts of plenum are made of galvanised bended steel
and treated by white powder for long using life. |
||
| Walls Panel | 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel. | ||
| Basement System | Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame.loading weight is 600KG/wheel | ||
| Diamond Plates (Powder Coated or Galvanized)* 3rows | |||
| 2 ramps,each size 800x2,000mm(WxL) | |||
| Heating System | Diesel Burner*1unit (Italy RIELLO, G10) heating capacity is 100,000Kcal/H | ||
| Heating Exchanger*1unit 200kw, made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M long bended galvanised steel chimney and 1 pc of rain shield. | |||
| Cabinet*1unit,rock-wool insulation. Cabinet Frame is made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. | |||
| 4. Filter System |
Primary Filter* 1set, filtering rate > 83%
G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3) |
||
|
Air-Intake Filter* 1set, filtering rate > 97%
Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) |
|||
|
Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70%
Fibre glass filter, G2 Grade(EU-3) |
|||
| 5. Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each | ||
| Belimo NMU230 20NM electric damper | |||
| Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit | |||
| 6. Illumination | Ceiling Lights * 32pcs, 16w LED lamp, with Light Fixtures, anti-explosion design | ||
| Side Lights * 32pcs,16w LED lamp, with Light Fixtures, anti-explosion design | |||
| Illumination ≥800LUX | |||
| 7. Control Panel |
*1unit,Button type control box, with main switch, and set with normal temperature spraying,
constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc. |
||
| ** Included | All Hardware, Fasteners, and Sealants | ||
