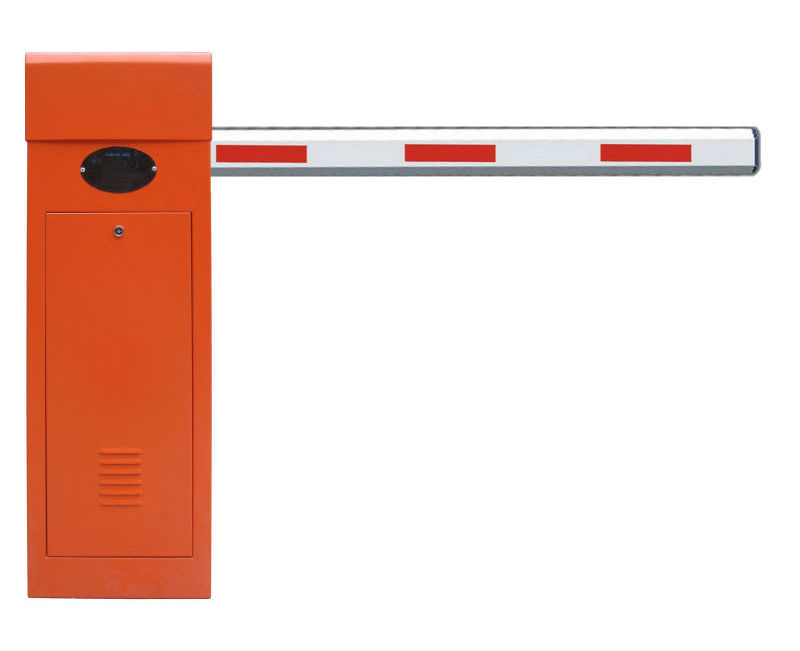

Intelligent highway barrier gate/ car park barrier gate controller/ vehicle arm barrier gate

Intelligent highway security vehicle  barrier gate

Descriptions

1) This car park barrier provides open/close time: 1.5 / 2 / 3 / 4 sec. optional

2) Straight arm with rubber bar, Max.length following:

6m for 4 sec. & w/o anti-collision

4m for 4 sec. & with anti-collision

5m for 3 sec. & w/o anti-collision

4m for 3 sec. & with anti-collision

4m for 2 sec.

3 m for 1.5 sec.

3) This barrier gate is Inclusive of arm and "push button" which opens/closes barrier

4) This barrier is exclusive of LED light bar,remoter, boom bracket and anti-collision mechanism: need to buy extrally

5) This barrier gate provides optional housing color as yellow (default),orange, white, red and blue

6) This barrier provides optional boom arm direction as leftward or rightward

Features

Automatically check the operation status and report error

System always automatically check operation status and errors will be shown on the LED tube of the controller

Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.

Safety--- Anti-hit by IR photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.

Closing Priority

While arm moving up, the arm will immediately go down once a close command is given

Automatically close after the given time

Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered

Automatically open by loop detector (Optional)

If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered

Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.

Specifications

1) Power: AC 220±10%,50/60HZ, Max.0.5A

2) AC Motor: 70W concreted decelerating torque motor

3) Controller: Intel 80C51 MCU, 40 MHz,controlled silicon motor control

4) Spring: multi-spring balance

5) Loop detector input: pulse width 100>ms

Infrared detector input: pulse width 100>ms

Up & Down input: pulse width 100>ms

6) Traffic light output: relay output, max. current 1A

7) Loop detector Syn. output: relay NO output, AC220V/0.5A, DV 12V/1A

8) Wireless remoter(optional): two button remote transmitter, distance>20m

9) RS 485 interface: 9600bps, ASCII decimal encoded

10) Arm:45×100mm Aluminum alloy

11) Housing: 2mm cold-roller sheet, IP 54 level

Housing dimension: 330mm×345mm×950mm

12) G.W Weight: around 55 KG

13) Operating temperature: -25°c -55°c; Humidity:10%-95%

Applications

This barrier gate provides a scure and convenient solution in shopping center, exhibition center, hospitals, airports etc, apartment blcok access,commercial premise,goods yards,railway crossings etc.
