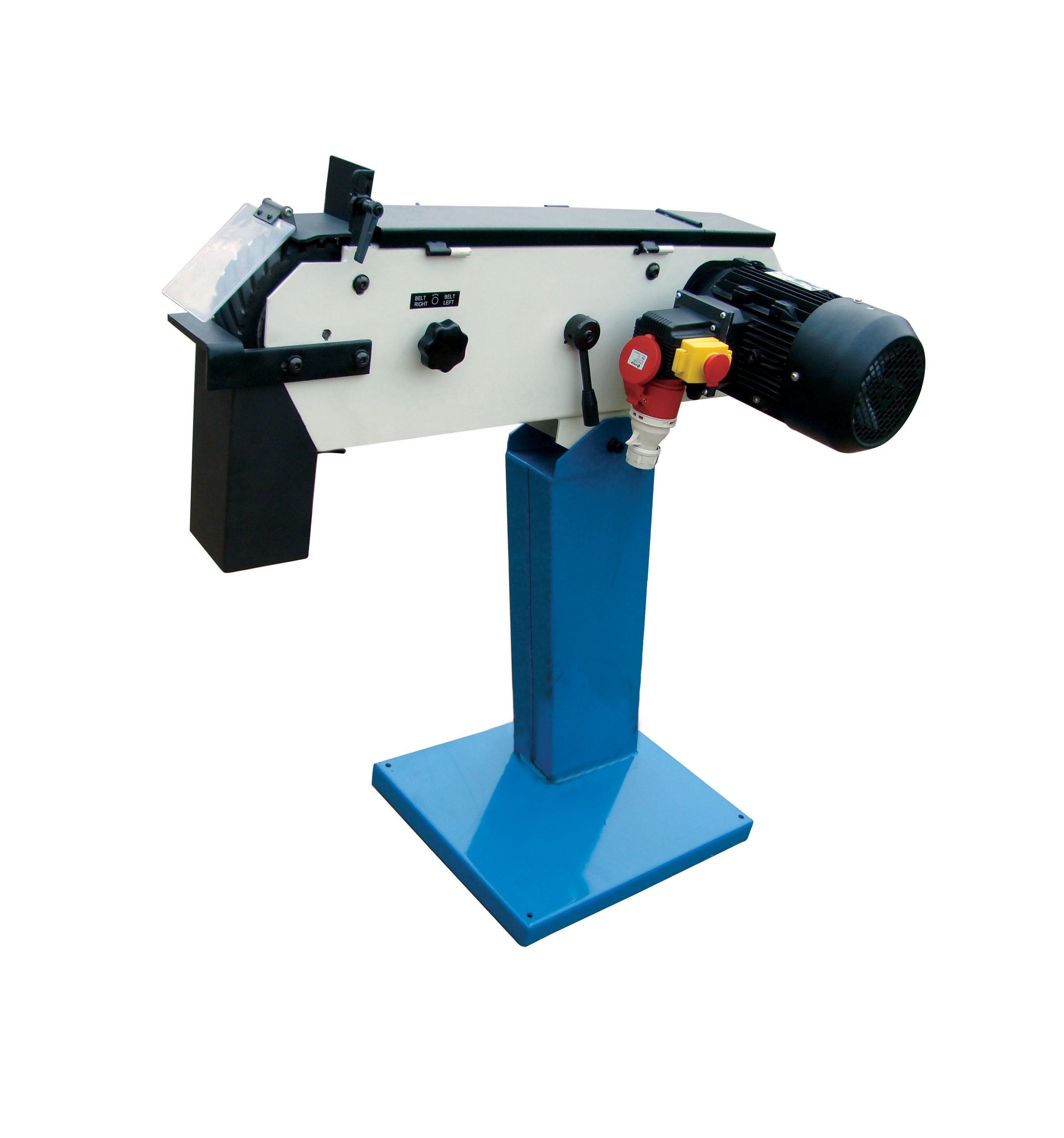

S-75 TTMC Belt Grinder, Grinding Machine, Single Speed Polishing Machine, Linisher

FOB Reference Price: Get Latest Price

≥1 Sets

US $1090

≥10 Sets

US $780

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 115x57x54 cm

Weight (KG):: 85

Power (kW):: 3

Item No.:: 389001

Model:: S-75

Belt size:: 2000x75mm

Motor power:: 3kW

Belt speed:: 34m/sec.

Contact wheel:: 200x75mm

Quick Details

Place of Origin:: Shandong, China

Brand Name:: TTMC

Voltage:: According to customer's request

Dimension(L*W*H):: 115x57x54 cm

Weight (KG):: 85

Power (kW):: 3

Item No.:: 389001

Model:: S-75

Belt size:: 2000x75mm

Motor power:: 3kW

Belt speed:: 34m/sec.

Contact wheel:: 200x75mm

Product Overview

TTMC High Speed Grinder Machine S-75/S-150A

The abrasive belt grinder recommended for: Smoothing over burrs on metal, chamfering edges for welding, and finishing castings, among other uses.

FEATURES AT A GLANCE

3.0 kW powerful motor

Solid billet aluminum drive wheel with simple tracking and tensioning system to extend belt and machine lifespan.
Top guard opens up to a large flat grinding surface, ideal for castings.

75*2000 and 150x2000 mm belt size, two different models available

PRODUCT SPECIFICATIONS

TTMC Heavy Duty Abrasive Belt Grinder S-75/S-150A

Item No.	389001	389016
Model	S-75	S-150A
Motor Power	3.0 kW	3.0 kW
Contact wheel	200x75 mm	200x150 mm
Belt size	2000x75 mm	2000x150 mm
Belt speed	34m/sec	34m/sec
Packing size	115x56x54 cm	115x63x65 cm
N.W./G.W.	85/110 kg	107/135 kg
