Functional Specifications:
1. Suitable for assembly and inspection line production for a variety of small household appliance
2. Convenient assemblies line body, opening transportation delivery, convenient delivery and safe usage
3. Configured lighting, technics billboard, fans, material platen, work station panels, raceway outlet, trachea, static lines, conductive ducts, etc.
1. Motor:
2HP,1:60 Cheeming brand motor,equipping with frequency speed controller.
3.Drawer:
Equipping drawer in the line, the thickness of drawer is 1.2mm,powder coating.
5.Support Frame:
40*40*T1.5mm aluminum extrusion,equipping column on each 2000mm,working height is 750mm.
7.Instruction Board:
support adopts 28*30 aluminum bars,in H shape.green acrylic plate equipping with transparent A3 acrylic plate each m.
9.Plating Bench:T15mm wooden board pasting fire proof,T shape cover.
11.Wire Slot 60*80:
Adopting galvanized board in 1.0mm thickness,equipping with socket on each meter.Adopting 4M2 wire
13.Conveying Belt:
pvc belt in 2mm thickness ,400mm in width ,jointless.
15.Air Pipe:
adopting 3/4” galvanized pipe with air cock between each meter for the whole line.
Note:the specifications are customized.
Customized Specifications as Follows:
1)What is the length of belt conveyor?
3)What is the working bench width?
carbon steel powder coating or aluminum structure
2. Frame for Motor: 40*40*T2.0mm aluminum extrusion,A3 board shrouding in 1.0mm thickness,equipping with sprocket and chain
4.Guide rail:
40*60*T1.5mm aluminum extrusion
6.Lighting:
28w,T5 tube.
8.Tool Hanging Rail:
support made of 28*30 aluminum,equipping with a set of wheel each meter;
10.Working Bench:
300mm in width, 15mm in thickness,pasted by pvc belt in 2mm thickness.T Shape belt cover. Adopting 40*40*T1.2mm aluminum extrusion as support frame.
12.Conveying Belt:
pvc belt in 2mm thickness ,400mm in width ,jointless.
14.Supporting Board and Supporting Roller For Belt: galvanized board in 1.0mm thickness for supporting.Adopting galvanized unpowerd roller in 50mm diameter as upper support roller,adopting galvanized unpowered roller in 38mm diameter as down supporting layer.Equipping roller in each 2000mm 16.Leveling Feet: M12*80 galvanized feet,adjustable height 30mm.
2)What is the belt width needed?
4) What material of the structure?
5) What is the speed of belt conveyor?
Successful Cases:Hairui,Lida
Curve Belt Conveyor with a link as follow(Click on the image):
Our company is founded in 1999, and located in Dongguan city, which is called world factory ,With a coverage area of 20000㎡. We are a national level new high-tech enterprise .interact R&D, manufacturing ,Marketing,customer services as a whole with the rapid development of 17 Years. Within the year of 2014 our sales volume reached 100 million yuan.With the sound provincial economy development. In 2015 our gross business turnover was 150 million Yuan .An 50 million yuan increase from last year.
Our products can be divide into two categories：intelligent automated equipment and accessories. Automatic production line equipment, intelligent robots, full automatic assembly line,assembly line.Accessories mainly contains intelligent industry related industrial parts.With a full range of them At least 3000 kinds .One-stop services for our distinguished clients.
Our customer

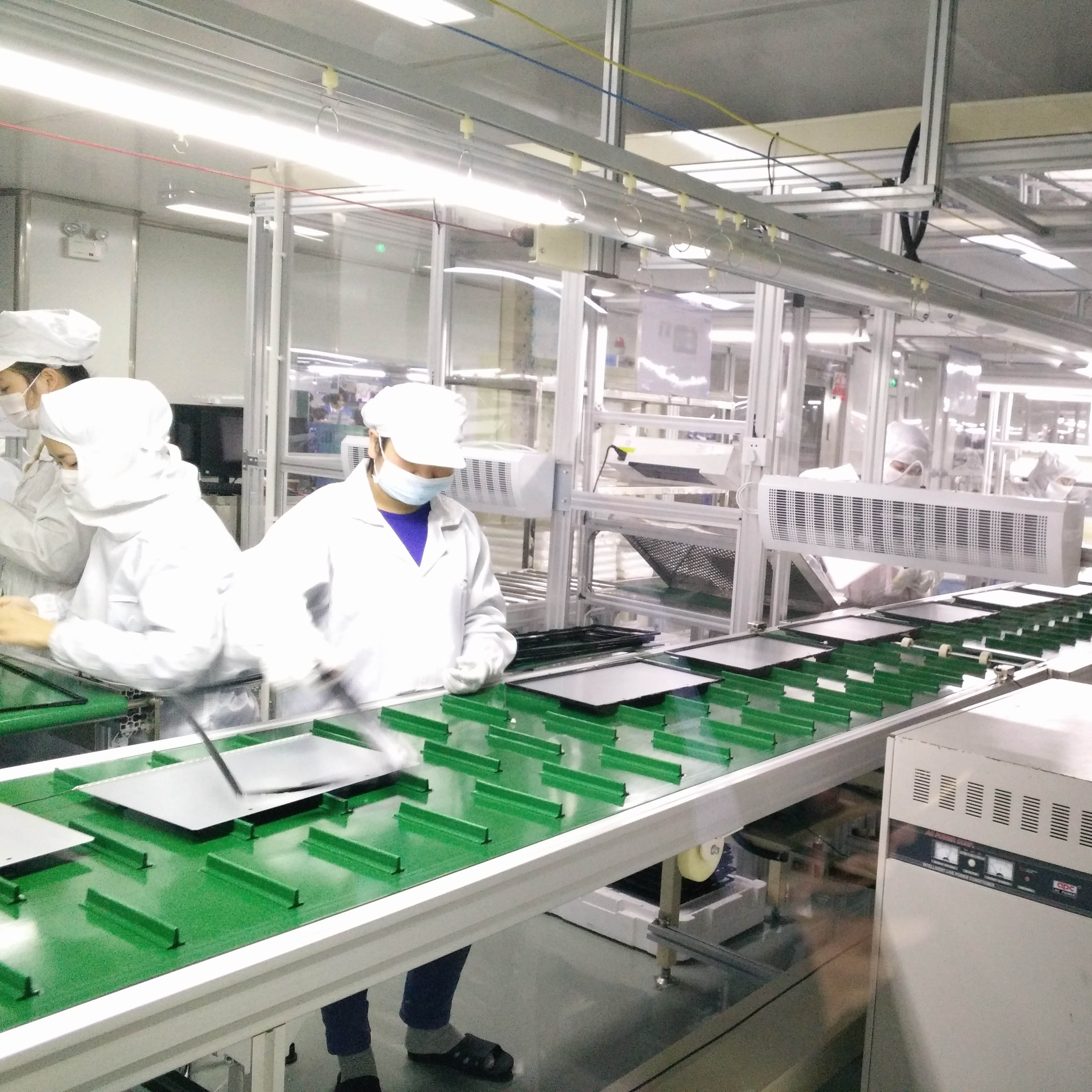

Successful case
