Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis
Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis

Auto Feeding Fabric Cloth Textile Co2 Laser Cutting Machine 1800x1400mm with Large CCD Camera Double head 2 Asynchronous Axis

FOB Reference Price: Get Latest Price
≥1 Sets
US $6880
≥2 Sets
US $6180
≥3 Sets
US $3380
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Cutting Area:
1800x1400mm
Cutting Thickness:
20mm acrylic
Place of Origin:
Jiangsu, China
Brand Name:
Yiqiang
Weight (KG):
900 KG
Products handled:
Nonmetal cutting
Feature:
Automatic cutting instead of scissor
Machine size (1814):
2510x2760x2730mm (LXWXH)
Laser power:
60-180w optional
Minimum line width:
0.1-0.3mm
Cutting speed:
500mm/s
Positioning accuracy:
+/-0.01MM
Applicable material:
fabric, cloth, leather, wood, acrylic etc nonmetal
Applicable industry:
printed trademarks, bra, swimsuit material cutting
Automatic feeding table:
Including
Feeding support:
Including
Camera:
Canon

Quick Details

Laser Type:
CO2
Cutting Speed:
500mm/s
Cooling Mode:
WATER COOLING
Cutting Area:
1800x1400mm
Cutting Thickness:
20mm acrylic
Place of Origin:
Jiangsu, China
Brand Name:
Yiqiang
Weight (KG):
900 KG
Products handled:
Nonmetal cutting
Feature:
Automatic cutting instead of scissor
Machine size (1814):
2510x2760x2730mm (LXWXH)
Laser power:
60-180w optional
Minimum line width:
0.1-0.3mm
Cutting speed:
500mm/s
Positioning accuracy:
+/-0.01MM
Applicable material:
fabric, cloth, leather, wood, acrylic etc nonmetal
Applicable industry:
printed trademarks, bra, swimsuit material cutting
Automatic feeding table:
Including
Feeding support:
Including
Camera:
Canon
Product Overview

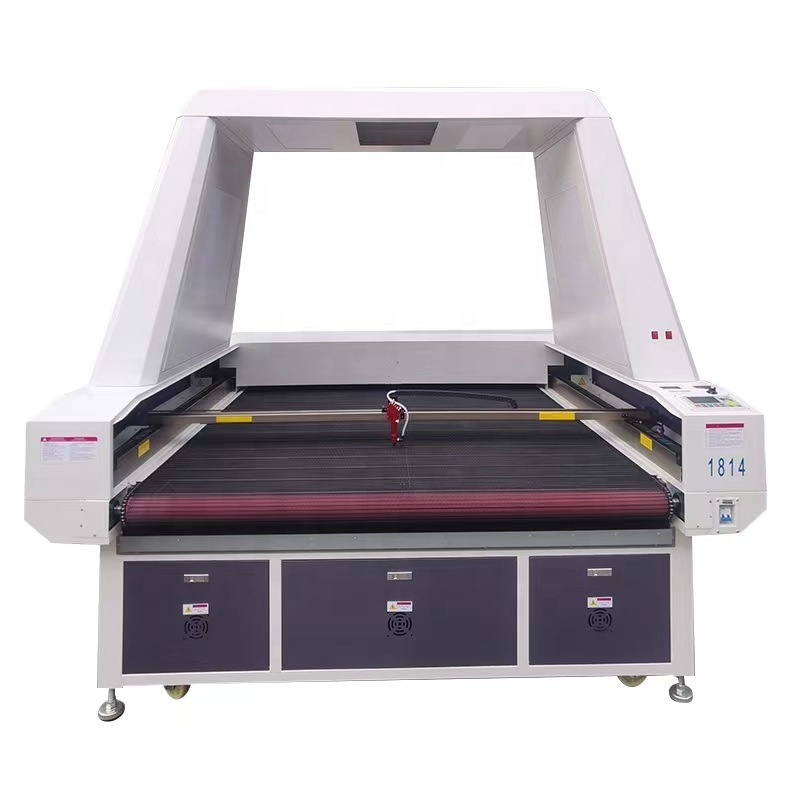

Auto feeding co2 Laser Cutting Machine

This is auto feeding textile laser cutter with camera, especially for printed fabric automatic cutting with large CCD camera positioning.
Widely used in the industries of fabric textile labels garment, footwear leather cloth toy computerized embroidery cutting, also bra swimsuit cutting.
FEATURES AT A GLANCE
1. Automatic feed table, spread the material on table automatically.
2. One or two heads optional, every head work independently.
3. Large CCD camera, faster cutting efficiency than small ccd camera.
4. Using Canon camera, high recognition accuracy.
5. Cutting by directly contour capturing.
6. Supporting manual adjusting through software to solve the problem of material distortion.
7. Fabric and cloth cutting, the cutting edge will close automatically, no burrs.
High speed guide slider, dust proof and fast speed
High precision Canon camera
Auto feeding platform
Mature CCD camera cutting system
Friendly design, easy to work
60-180w co2 laser tube optional
PRODUCT SPECIFICATIONS
No
Item
Data
1
Model
YQ1814
2
Table size
1.6x1m, 1.8x1m, 1.8x1.4m optional, accept customize
3
Auto feeding table
Yes
4
Cutting Speed
500mm/s
5
Laser power
60w,80w,100w, 150w, 180w optional
6
Cooling method
Water cooling
7
Resolution ratio
0.025mm
8
Positioning accuracy
+/-0.01mm
9
Graphic format supported
plt, dxf, AI, Bmp etc.
10
Software supported
Coreldraw, AutoCAD, Photoshop, Illustrator, etc.
11
Guide
High speed linear guide slider, fast speed and less maintenance
12
Motor
3 phase stepper motor, Leadshine brand
13
Operate system
win98/win2000/winXP, win7, win10
14
Voltage
AC220V/AC110V+/-10%, 50HZ/60HZ
15
Operate temperature
0-45degree
16
Operate humidity
5%-95%
17
Free parts including
CW5200 water chiller, air pump, exhaust fan and other small tools
18
Optional
dual head one X axis/dual head 2 X axis

Applicable Industry

Snow boots slippers, pillow under the warm hand treasure material, clothing affixed cloth embroideredwoven labeltrademark, cutting garment accessories, ornamental engraving, punching and trimming, leather punch, organic glass, plastic, PVC, paper wood and bamboo, ceramic,granite, graven images industry
FAQ
Q1： How the camera works?
A1： The camera is mounted on the top of the laser cutting machine, after the material is fed to the laser cutting table, the camera takes a photo of the printed pattern at once in the entire work area at one time. The software automatically creates a file according to the shape and size of the pattern, and then the laser heads cut precisely along the outline of the pattern.It only takes about 10 seconds to take pictures and create files.
SIMILAR PRODUCTS
SALES AND SERVICE NETWORK
Warm welcome to visit our factory !
Suzhou Yiqiang Laser specialize in laser equipment more than 16 years, quality is our culture and have special team work for after sale service.
Cooperate with us, you don't worry about machine quality, do not worry about money. Quality assured and money safe. We provide machine whole life after sale service.
Please feel free to contact us for machine price list, any question, just let us know without hesitation.
