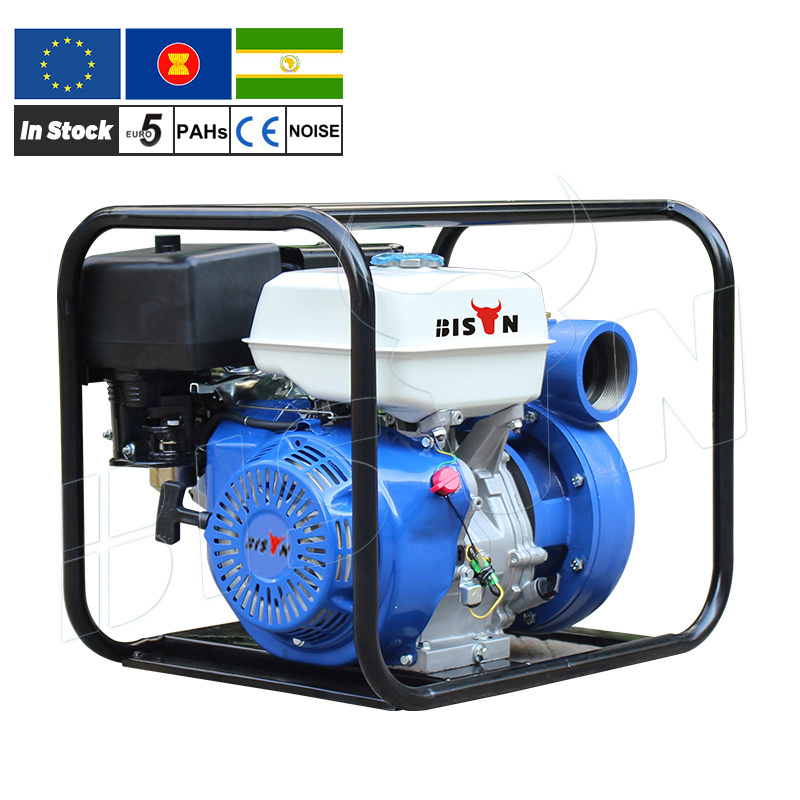

Water Suction Pumping Machine For Irrigation High Presser Agricultural Irrigation 18hp 4" Gasoline Water Pressure Pumps

FOB Reference Price: Get Latest Price
≥10 Sets
US $216
≥49 Sets
US $212
≥100 Sets
US $210
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 year
Brand Name:
BISON
Model Number:
BS20Hi
Place of Origin:
Zhejiang, China
Horsepower:
18HP
Power Source:
Gasoline engine
Structure:
Other
Cable Length:
Other
Outlet Size:
100(4.0")
Power:
Other
motor:
Other
Suction height(m):
8
Fuel Tank (L):
6.5
Package Size(mm):
635*480*525
Gross Weight(kgs):
64
Engine Type:
BS192F
Material:
Cast Iron
Time of continuous operation(hour):
1.3
Starting System:
Manual/Electric
Certificate:
CE/ISO/EURO V
OEM/ODM:
Available

Quick Details

Application:
Other, Industry, Family homes
Pressure:
High Pressure
Voltage:
Other
Warranty:
1 year
Brand Name:
BISON
Model Number:
BS20Hi
Place of Origin:
Zhejiang, China
Horsepower:
18HP
Power Source:
Gasoline engine
Structure:
Other
Cable Length:
Other
Outlet Size:
100(4.0")
Power:
Other
motor:
Other
Suction height(m):
8
Fuel Tank (L):
6.5
Package Size(mm):
635*480*525
Gross Weight(kgs):
64
Engine Type:
BS192F
Material:
Cast Iron
Time of continuous operation(hour):
1.3
Starting System:
Manual/Electric
Certificate:
CE/ISO/EURO V
OEM/ODM:
Available
PRODUCT ADVANTAGES
Product Advantages
1. Our water pump 's PISTON weight is 5% higher than fraternity , good for such as Oil Burning, Carbon Deposition, Piston Scuffing , and etc .
2. Our water pump 's CAMSHFT is made of PA66 material, it can perform mechanical reciprocating motion with a load of 100N at 900 times/min .
3. Impeller designed with high efficient hydraulic system, save more than 20% fuel , and Save $0.7 Per Hour.In addition, 2" ,3" and 4" outlet gasoline water pump all complies with the Euro V emission requirement and EPA certification.
4. Stonger pressure boost performance: 80-140m pump lift, 150-200m³/H large flow bring high-efficiency water storage irrigation.
Model
BS20
BS30
BS40A
BS20H
BS30H
BS20Hi
BS30Hi
BS40Hi
Inlet and outlet size(mm)
50(2.0")
80(3.0")
100(4.0")
50(2.0")
80(3.0")
50(2.0")
80(3.0")
100(4.0")
Pump Lift(m)
28
30
25
50
25
75
90
50
Suction height(m)
8
8
7
7
7
7
7
8
Flux(m³/h)
36
60
75
42
75
30
40
115
Model
BS168F-1
BS168F-1
BS170F
BS170F
BS188F
BS170F
BS188F
BS192F
Engine Power
6.5
6.5
7
7
13
7
13
18
Type
Single Cylinder, 4-stroke Air Coole Engine
Fuel Tank (L)
3.6
3.6
3.6
3.6
6.5
3.6
6.5
6.5
Gross Weight(kg)
28
30
39
28
33
30
61
64
Size(L*W*H)(mm)
490*385*405
510*385*425
635*480*525
510*385*425
635*480*525
510*385*425
635*480*525
635*480*525
20GP/40GP
385/900
330/828
160/402
385/900
275/690
330/828
180/380
180/380
HOW WE CONTORL THE QUALITY
The 100-hours test process of a 3inches petrol water pump

Time
Time
Power (Hp)
Flux ( M 3 /h)
Pump Lift (M)
Suction Height (H)
Day 1
18:00
6.52
61.97
30.11
7.97
Day 2
7:30
6.53
62.01
29.97
8.04
13:00
6.50
59.94
30.15
7.95
20:00
6.49
61.95
29.32
8.14
Day 3
7:30
6.50
62.15
30.19
7.95
13:30
6.51
61.96
30.26
7.97
20:00
6.49
61.97
30.15
8.01
Day 4
7:30
6.48
60.98
29.96
8.12
13:30
6.51
60.05
30.15
8.03
20:00
6.52
62.01
30.12
8.07
Day 5
7:30
6.49
62.13
30.24
8.01
13:30
6.51
61.02
29.77
8.17
20:00
6.51
60.57
30.10
8.06
Day 6
7:30
6.49
59.98
30.27
7.94
13:30
6.50
61.96
30.1
8.11
FAST COMPLAINTS FEEDBACK
WHO IS BISON
TAIZHOU BISON MACHINRY INDUSTRY CO.,LTD who is a professional manufacturer of Generators,Engines,Water Pump,High Pressure Washer and Parts .BISON has more than 20+ Technology Engineers and 15+ Designers for OEM Service.BISON has more than 50000+ square meters of workshops and more than 300+ workers to deliver goods on schedule.
BISON'S EXHIBITIONS
CUSTOMER REVIEWS
FAQ
Why choose BISON water pump?

Complete series of water pumps China BISON producing water pumps suitable for all occasions and specifications. For Agricultural irrigation/Pond pumping/High mountain pumping/Flood control. You can immediately find a pump that suits your needs on our website! Water pump accessories BISON provides many accessories for water pumps. High quality pump accessories can improve pump performance or extend its service life.If you have a gasoline water pump, you can put the water pump outside and use it remotely Filter and suction hose. If you also would like to wholesale impellers and a replacement wheel kit to improve the versatility and practicality of the water pump. And we will also send you the water pump accessories in every cooperation. Water pump maintenance The maintenance of the water pump is very easy to do. Before the water pump working, make sure to remove any visible debris from water pump inner. The water pump also should be flushed once in every year, but also should be dealt any blockages or shutdown condition, In addition, the instruction manual provided by BISON can also guide customers to maintain well, and BISON also has the after-sales service with 24hours online. How many years can the water pump be used? BISON high-quality water pumps can effectively achieve their Working life at least five years. If it's has the properly maintained and does not overwork often, the working life will be more than that. This is why BISON water pumps are a pretty good investment.
How to choose a water pump? - Water pump wholesale guide written by BISON experts 1.Choosing the good water pump is one of the most important ways to avoid failure of the water pump system and prolong its wokring life. Every type of pump has its specific application environment. Most water pumps just can be used to transport clear water (drinking water, sea water, chlorinated water, etc.). And, there are sewage water pumps for wastewater containing suspended solids, which usually come from sewers, septic tanks, etc. For example, if the water comes from a reservoir, river or lake, we would choose a transfer water pump. 2.The next step in choosing the good water pump is to ensure that its specifications are correct or not. The most important factors to consider when determining a water pump boil down to the GPM/PSI rating, water pump and hose size, and head. 3.PSI stands for pressure per square inch and GPM stands for gallons per minute. PSI more higher, the greater the force of the water leaving the pump will be more higher. GPM is related to the amount of water flowing out of the water pump, not to the strength of the outflow. 4.Appropriate hose size: You should be choose the suitable hose size as the water pump inlet and outlet size. Hoses should not be reduced in diameter. The common hose size most with 3/4 inch, which is usually suitable for cleaning, small maintenance work, etc. Although they look similar to ordinary garden hoses, they are more able to withstand higher pressures. 5.Total head (THL) refers to the total height from the water source to the final destination. The head includes the suction head and the pressure head. The suction head (SH) is the vertical distance from the water source to the water pump. This number is particularly important for pond drainage. 6.The size of the inlet and outlet is closely related to the flow rate. The inlet size of portable water pumps is usually 1 inch "-6 inches" (sometimes larger). The working principle of centrifugal water pumps is the same - water is sucked in through the inlet valve and discharged through the discharge valve. In this case, the larger the size of the inlet valve, the more water the pump can extract, and the faster the work can be completed.
