Quick Details
-
Table Travel (Y) (mm):
-
550
-
Dimension(L*W*H):
-
3160*2280*2810
-
Weight (T):
-
5.8 T
-
Table Travel (Z) (mm):
-
600mm
-
Repeatability (X/Y/Z) (mm):
-
0.004
-
Range of Spindle Speed(r.p.m):
-
0 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5/11Kw
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
0 - 36000 mm/min
-
Rapid Feed Speed(m/min):
-
48/48/48
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTG
-
Voltage:
-
380V/220V
-
Marketing Type:
-
New Product
-
Machinery Test Report:
-
Available
-

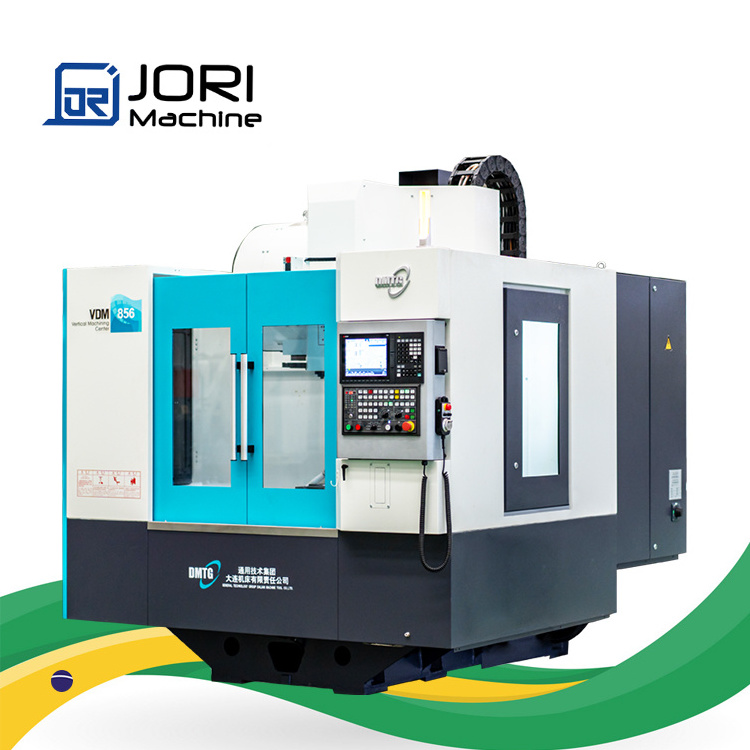

Name:
-
Vertical machining center
-
Precision:
-
High Precision VMC fresadora
-
CNC or Not:
-
CNC milling machine
-
xyz travel:
-
860/510/560
-
Keywords:
-
VMC
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Guideways:
-
Taiwan Linear Guideways fresadora
-
Worktable size:
-
1000x500 mm
-
Spindle Speed:
-
12000RPM vertical machining center
-
Trade Terms:
-
FOB/CIF
Quick Details
-
Table Size (mm):
-
1000*500
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
820
-
Table Travel (Y) (mm):
-
550
-
Dimension(L*W*H):
-
3160*2280*2810
-
Weight (T):
-
5.8 T
-
Table Travel (Z) (mm):
-
600mm
-
Repeatability (X/Y/Z) (mm):
-
0.004
-
Range of Spindle Speed(r.p.m):
-
0 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5/11Kw
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
0 - 36000 mm/min
-
Rapid Feed Speed(m/min):
-
48/48/48
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTG
-
Voltage:
-
380V/220V
-
Marketing Type:
-
New Product
-
Machinery Test Report:
-
Available
-
Name:
-
Vertical machining center
-
Precision:
-
High Precision VMC fresadora
-
CNC or Not:
-
CNC milling machine
-
xyz travel:
-
860/510/560
-
Keywords:
-
VMC
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Guideways:
-
Taiwan Linear Guideways fresadora
-
Worktable size:
-
1000x500 mm
-
Spindle Speed:
-
12000RPM vertical machining center
-
Trade Terms:
-
FOB/CIF
|
TABLE
|
Worktable size
|
mm
|
1000*500
|
|
|
T-Slot (Quantity*Width*Distance)
|
mm
|
5*18*100
|
|
|
Max load of worktable
|
kg
|
600
|
|
TRAVEL
|
X/Y/Z axis travel
|
mm
|
820/550/600
|
|
|
X/Y/Z axis guideway type
|
mm
|
Linear roller guideway
|
|
|
Distance from spindle center to column
|
mm
|
623
|
|
|
Distance from spindle nose to table
|
mm
|
120~720
|
|
FEED RATE
|
Rapid traverse of X/Y/Z axis
|
m/min
|
48/48/48
|
|
|
Cutting feed rate
|
mm/min
|
0~10000
|
|
SPINDLE
|
Max spindle speed
|
r/min
|
12000
|
|
|
Spindle taper
|
|
No.40 (7:24)
|
|
ATC system
|
Tool magazine capacity
|
|
24T/Arm
|
|
|
Tool shank type
|
|
BT40
|
|
|
Max tool weight
|
kg
|
8
|
|
|
Max tool diameter (w/o adjacent tools)
|
mm
|
24T: φ78/155
|
|
|
Max tool length
|
mm
|
300
|
|
|
Time of tool change (T-T)
|
s
|
24T: 2.5
|
|
ACCURACY
|
X/Y/Z axis positioning accuracy
|
mm
|
0.006/0.006/0.006
|
|
|
X/Y/Z axis repeatability accuracy
|
mm
|
0.004/0.004/0.004
|
|
CONTROL SYSTEM
|
Controller
|
|
GSK/SIEMENS/FANUC
|
