Quick Details
-
Printing Type:
-
all Printing Machine
-
Weight (KG):
-
15
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tianji
-
Input voltage:
-
AC85-264V
-
Output Voltage:
-
DC0-24V
-
Output Current:
-
0-4A
-
Input Rate:
-
50/60HZ
-
tension controller Method:
-
Pulse width modulation switched type adjustment system
-
Applicable Machine:
-
Magnetic powder clutch and brake
-
Installation Method:
-
ground,wall and inserted type installation
-
Net Weight:
-
1KG
-
Specifications:
-
177*120mm
-
ITEM:
-
tension controller
Quick Details
-
Condition:
-
New
-
Type:
-
tension control
-
Use:
-
all brands of Printing Machine
-
Printing Type:
-
all Printing Machine
-
Weight (KG):
-
15
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tianji
-
Input voltage:
-
AC85-264V
-
Output Voltage:
-
DC0-24V
-
Output Current:
-
0-4A
-
Input Rate:
-
50/60HZ
-
tension controller Method:
-
Pulse width modulation switched type adjustment system
-
Applicable Machine:
-
Magnetic powder clutch and brake
-
Installation Method:
-
ground,wall and inserted type installation
-
Net Weight:
-
1KG
-
Specifications:
-
177*120mm
-
ITEM:
-
tension controller

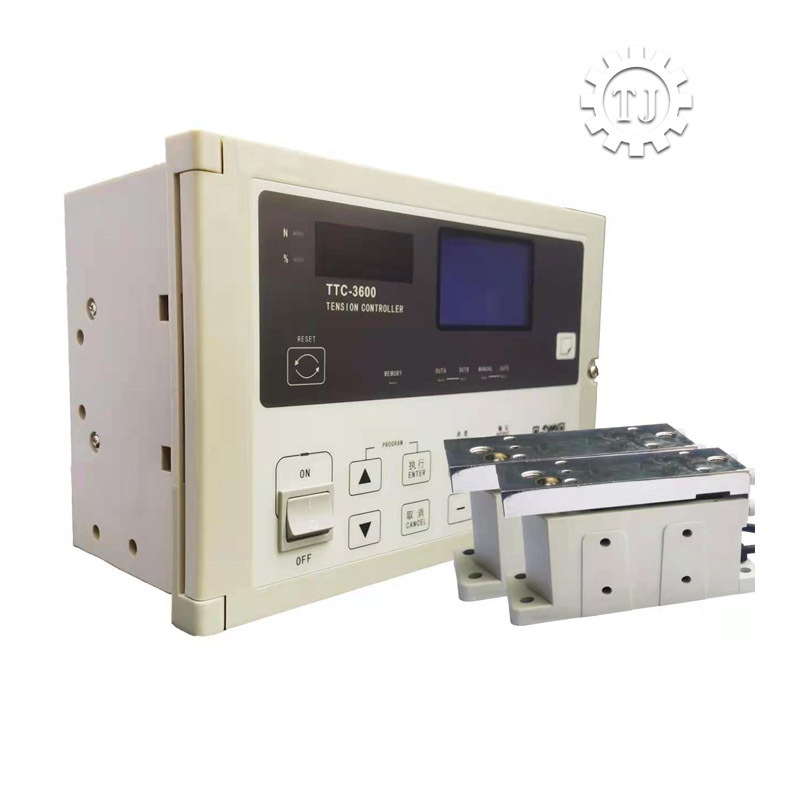

High precision web magnetic powder clutch auto tension controllers for powder clutch brake
Factory Supply OEM Automatic Tension Controller, Manual Tension Controller for Rewind and Unwind system
| PRODUCT DETAILS |
Specialty:
Our automatic tension control technology uses interactional many vanguard technologies, adopts the microprocessor, high speed 18A/D switch, antijamming self-recovery tech-nology, and PID non-over modulation algorithm, thus achieve the permanent tension control. Widely applies in printing, the packing, the papermaking, the spinning and also also the weaving, the line cable and so on. According to the difference of signal, it divides into completely automatic and Semiau-tomatic.
Note: you can choose buy both tension controller & powder brake; it can also be purchased separately.
The tension controller signal input may choose is comes from:
1,tension detector electric current either voltage output (mA or mV) completely automatic
2,encoder or close switch outputs signal(0-9V) ---Semisu-tomatic.
Digital type Example & Installation Specification:
Digital Tension controller:
|
Work mains input |
AC220V 100W |
|
Work power source output |
DC10V,the tension examination power source |
|
Simulation input signal |
Two group tension detector signal input |
|
Simulation output signal |
Control outputs DC0-10V to use in serving controls and so on amplifier. Control output DC0-24V to use in controlling the DC24Velectric current less than 4A, following magnetic powder (electromagnetism) digital quantity. |
|
Input signal |
Each numeral quantities and so on coupling brake all to use the Photoelectrictiy isolation electric circuit to input, all digital quantity input only DIO DIA DIB. |
|
Use ambient temperature |
-10~40degree |
|
Use environment humidity |
35~85% RH( No condensation) |
|
Use environment |
Non-corrosiveness, not flammable gas Non-conductive dust, dust few |
|
Earths |
D kind of earth (It is prohibition of the strong electricity electric wire earths together) |
Hand type Example & Installation
Manual Tension controller:
| Conrol Manner | Pulse width concoct switch adjust system |
| Input Voltage | AC85~264V , 50/60HZ |
| Output | DC24V , 0~4A |
| Suitable for Machine | magnetc powder clutch ,magnetic powder brake |
| Assistant Function | Short circuit to protect input signal and can be controlled by outside signal.(panel signal or 0~10v) |
| Working Environment | Use temperature around:-5°C~+40°C ,use temperature around below 3.8%. Use environment:not allow causticity gas,dust and rain. |
| Installation | Ground installation. Hang up installation. Incrustation installation |
| Weight | 1KG |
Tension detector:
Application:
