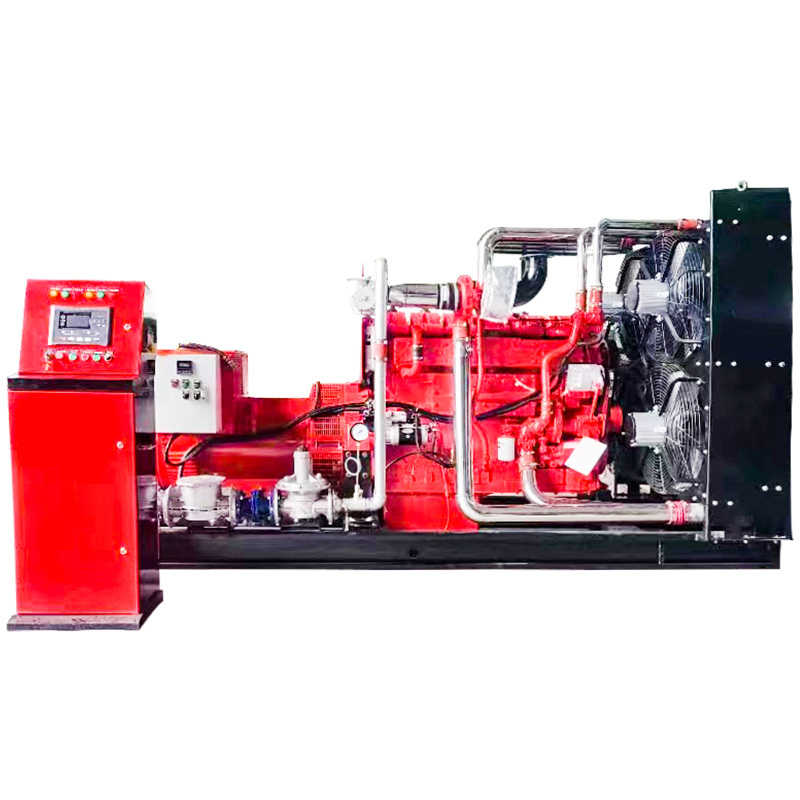

gas generator 1 mw 1000kw 1250kva gas generator

gas generator 1 mw 1000kw 1250kva gas generator

FOB Reference Price: Get Latest Price

≥1 Sets

US $260000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Weichai

Model Number:: XHY-1000GF/W

Speed:: 1500/1800RPM

Weight:: 14500KG

Product Name:: gas generator 1 mw

Engine Model:: 16M33D1280NG10

Alternator::: 100% Copper Alternator

Alternator brand:: Xinhongyuan power

Phase:: 1 Phase/3 Phase

Control Panel:: LCD Digital Display

Color:: Customers' Request

Delivery:: 45Days

Certification:: CE;ISO

Quick Details

Rated Voltage:: 400/230V 220/380

Rated Current:: 1800A

Frequency:: 50/60HZ

Place of Origin:: Shandong, China

Brand Name:: Weichai

Model Number:: XHY-1000GF/W

Speed:: 1500/1800RPM

Weight:: 14500KG

Product Name:: gas generator 1 mw

Engine Model:: 16M33D1280NG10

Alternator::: 100% Copper Alternator

Alternator brand:: Xinhongyuan power

Phase:: 1 Phase/3 Phase

Control Panel:: LCD Digital Display

Color:: Customers' Request

Delivery:: 45Days

Certification:: CE;ISO

Products Description

Technical parameters of gas generator set
GenSet Model	XHY-1000GF/W	Type	Open type
Frequency	50/60HZ	Speed	1500/1800RPM
Size (LWH)	455018002512 MM	52N,W	14500KG
Technical parameters of Weichai gas engine
Model	16M33D1280NG10	Fuel	gas
Cylinder	6	Cooling system	water
Starter	DC 24V Electric start	Cooling mode	Closed water circulation cooling
Technical parameters of Xinhongyuan alternator
Model	HYF-1000s	Pure copper content	100%
Insulation grade	H	Output factor	COSΦ=0.8

Optional configuration

Silent generator set

1. Ast standard steel casing.

2. large impedance composite silencer

3. built-in high-density wave sound-absorbing cotton.

4. noise reduction multi-channel air inlet, exhaust, and exhaust to ensure the power performance of the unit.

5. large capacity base oil
tank

Silent trailer generator set

1. the power station is limited to 5km and equipped with a hand brake.

2. spring suspension structure, effective cushioning.

3. noise reduction type multi-channel air inlet, exhaust, and exhaust channel to ensure the power performance of the unit.

4. the front wheel rotates 360 ° for convenient driving.

5. rainproof, sunscreen, noise reduction and easy to move..

Brushless generator

Advantages : maintenance free, low failure rate, little interference to radio equipment, large output torque, high speed, longer
service time, suitable for high-precision equipment and electrical appliances.

Mainly suitable for indoor electricity : hospitals,hotels, Internet cafes, KTV places, hotel buildings, villas, companies, farms, etc. (recommended reason: the starting and
operating voltage is very stable, maintenance free, and is very suitable for precision equipment, such as computers, USB, medical
equipment, etc.)

Brush generator

Advantages : the price is affordable, the design is reasonable, the maintenance is simple and the maintenance cost is low, its
titre torque performance is excellent, the torque is large, and the instantaneous bearing capacity is strong.

Mainly suitable for outdoor power : construction site, factory, mixing plant, mining area, breeding industry, etc. (recommended reason: it is easy to
start large electrical equipment, has strong power performance, and can be repaired quickly and simply in case of failure)

Four protection control systems, automatic monitoring without duty

1. when the engine oil is insufficient or reaches the warning level, the unit will send out a low oil pressure alarm and shut down.
2. when the generating voltage is too high / too low, the unit will automatically alarm and stop. 3. when the load used by the
user exceeds the rated power of the generator, the unit will alarm and stop. 4. when the water tank temperature reaches above 98
℃, the generator control module sends a high water temperature warning and then stops the machine for protection.

ATS full-automatic control cabinet, dual power intelligent switching

Self-start in case of power failure, self-stop in case of power failure, automatic switching of power supply, 24-hour intelligent
duty, automatic locking of starting circuit in case of unit failure, abnormal oil pressure/voltage / water temperature.
Automatic alarm and start protection in case of overload / short circuit and other faults.

Application scenario

FAQ

1. Is the generator used already? Xinhongyuan does not make second-hand machines, only brand-new machines, and signs the formal contract. If there is a refurbished machine, a full refund will be given. 2. How long is the machine warranty period? All generator sets manufactured by Xinhongyuan are covered by the global joint warranty, with one year warranty (except for man-made damage) and a lifetime warranty. 3. Is the generator easy to use? Is it easy to operate? The generator of Xinhongyuan have been debugged before leaving the factory. After receiving the goods, connect the power cord, pour diesel oil and start them, and they are ready for use. Detailed operating instructions can be viewed in Xinhongyuan Service>> Unit Startup Steps 4. How to choose the suitable diesel generator set? A. Consider the power（kW） of the generator set. You can provide the load of the electrical equipment. The customer service staff will help you calculate and recommend the generator set suitable for you. B. Consider the purpose of the generator set （ it is for regular use, backup, or emergency use). C.There is the style, which varies from place to place, open type, silent type, mobile type, automatic, etc. can be selected. 5. How long can it be shipped? In stock, Delivery within 5 days after receiving deposit or payment for goods; customized generator sets will be shipped within 10 working days after receiving the deposit or payment for goods (except for special requirements)
